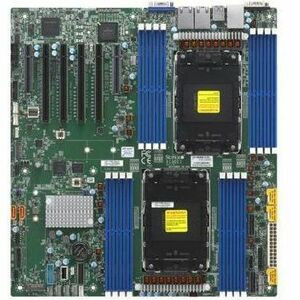

Supermicro Server Motherboard Intel Socket LGA-4677 Extended ATX Xeon Ready 4 TB DDR5 SDRAM Support Processor Supported Chipset RAM MBD-X13DEI-O
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Marketing Information:
Supermicro motherboards support the latest generation Intel and AMD processors, memories and offer the most advanced technologies in the IT field - NVMe, M.2, 10GbE network ports. Thanks to their high scalability and a wide choice of form factors, the boards can fulfill the needs of even the most demanding customers. Supermicro offers the broadest selection of servers designed for industrial use, which is reflected in the overall quality of the boards. Materials that guarantee a long lifespan are used for manufacturing Supermicro motherboards, thanks to which a minimal failure rate is achieved. Supermicro motherboards go through a generational exchange approximately once every seven years, which guarantees long support by the manufacturer. Each Supermicro motherboard also allows free installation of specialized software for basic system monitoring.
The purchase of NBD warranty of your own choice is a matter of course, which minimizes service outages even in cases that cannot be predicted. Contact our sales department for more information. Standard NBD warranties are offered for 3 or 5 years.
Chipset Manufacturer: Intel
Chipset Model: C741
Total Processor Supported: 2
Processor Socket: Socket LGA-4677
Processor Generation Supported: 4th Gen
Processor Supported: Xeon
Number of Memory Slots: 16
Memory Form Factor: DIMM,RDIMM
Maximum Memory Supported: 4 TB
Memory Speed Supported: 4800 MHz,4400 MHz,4000 MHz
Memory Technology: DDR5 SDRAM
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0,1,5,10
Onboard Video: CPU Dependent Video
Audio Channels: 7.1
Gigabit Ethernet: Yes
10Gigabit Ethernet: Yes
Total Number of Expansion Slots: 6
Total Number of PCI Express Slots: 6
Number of PCI Express x8 Slots: 2
Number of PCI Express x16 Slots: 5
PCI Express Standard: PCI Express 5.0
Total Number of USB Ports: 4
Number of USB 3.2 Gen 1 Type-A Ports: 4
VGA: Yes
HDMI: No
DVI: No
Number of Network (RJ-45) Ports: 2
Number of M.2 Interfaces: 2
Total Number of Onboard USB Ports: 5
Number of Onboard USB 2.0 Ports: 2
Form Factor: Extended ATX
Width: 13.05" (331.47 mm)
Depth: 12.10" (307.34 mm)
Weight (Approximate): 2.87 lb (1300 g)
- Experience high performance, built-in security and remote management capabilities with compatible Intel Xeon processor
- DDR5 SDRAM slot for convenient installation of memory
- Extended ATX form factor brings a significant number of PCI slots, expansion slots, and peripheral ports with an enhanced heat dissipation capability
[custom-specifications]
| Specifications | |
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | MBDX13DEIO |
| Manufacturer Website Address | http://www.supermicro.com |
| Brand Name | Supermicro |
| Product Name | Server Motherboard |
| Package Type | Retail |
| Product Type | Server Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C741 |
| Total Processor Supported | 2 |
| Processor Socket | Socket LGA-4677 |
| Processor Generation Supported | 4th Gen |
| Processor Supported | Xeon |
| Memory | |
| Number of Memory Slots | 16 |
| Memory Form Factor | DIMM,RDIMM |
| Maximum Memory Supported | 4 TB |
| Memory Speed Supported | 4800 MHz,4400 MHz,4000 MHz |
| Memory Technology | DDR5 SDRAM |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 0,1,5,10 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Audio | |
| Audio Channels | 7.1 |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| 10Gigabit Ethernet | Yes |
| I/O Expansions | |
| Total Number of Expansion Slots | 6 |
| Total Number of PCI Express Slots | 6 |
| Number of PCI Express x8 Slots | 2 |
| Number of PCI Express x16 Slots | 5 |
| PCI Express Standard | PCI Express 5.0 |
| Interfaces/Ports | |
| Total Number of USB Ports | 4 |
| Number of USB 3.2 Gen 1 Type-A Ports | 4 |
| VGA | Yes |
| HDMI | No |
| DVI | No |
| Number of Network (RJ-45) Ports | 2 |
| Onboard Interfaces | |
| Number of M.2 Interfaces | 2 |
| Total Number of Onboard USB Ports | 5 |
| Number of Onboard USB 2.0 Ports | 2 |
| Physical Characteristics | |
| Form Factor | Extended ATX |
| Width | 13.05" (331.47 mm) |
| Depth | 12.10" (307.34 mm) |
| Weight (Approximate) | 2.87 lb (1300 g) |
[/custom-specifications]
