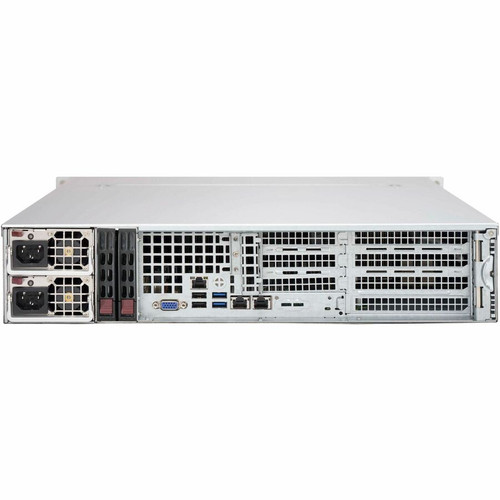

Supermicro SuperChassis 826BE1C4-R1K23WB - Rack-mountable - Black - 2U - 1.20 kW - WIO Motherboard Supported - 5 x Fan(s) Supported - (CSE-826BE1C4-R1K23WB)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Motherboard Supported: WIO
Number of Fans Supported: 5
Fan Size Supported: 3.15" (80 mm),2.36" (60 mm)
Features: On/Off Button,Reset Button,Intrusion Switch,Hot Swappable Bay
Number of Internal 3.5" Bays: 12
Number of Internal 2.5" Bays: 2
Total Number of Expansion Slots: 7
Power Supply Wattage: 1.20 kW
Color Family: Black
Product Color: Black
Cooler Type: Fan Cooler
Compatible Rack Unit: 2U
Form Factor: Rack-mountable
Height: 3.50" (88.90 mm)
Width: 17.20" (436.88 mm)
Depth: 25.50" (647.70 mm)
Weight (Approximate): 40 lb (18143.6948 g)
- 2U chassis support for SMC Proprietary WIO motherboards max. motherboard size - 12" x 13" , 13" x 13.68".
- Support up to 12"x13" MB with rear 2.5" HDD option installed
- 12 x 3.5" hot-swap drive bay, optional 2 x 2.5" hot-swap drive bay
- 8x SAS3 12Gbps and 4x Hybrid (NVMe/SAS3) 3.5" HDD
- 12-Port 2U Backplane with Expander support up to 8 x 3.5" SAS3/SATA3 HDD/SDD and 4 x SAS3/SATA3/NVMe Storage Devices,HF,RoHS/REACH
- 1U 1200W/1000W Titanium Power Supply W/PMbus W76xL336xH40mm
- WIO Slots (4x Full-height, Half-length + 3x Low-profile)
- 3 x 8cm high-performance PWM fan(s)
- Optional 5 x 6cm 4pin high performance fan(s)
[custom-specifications]
| Specifications | |
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | CSE-826BE1C4-R1K23WB |
| Manufacturer Website Address | http://www.supermicro.com |
| Brand Name | Supermicro |
| Product Line | SuperChassis |
| Product Name | SuperChassis 826BE1C4-R1K23WB |
| Product Type | Server Case |
| Technical Information | |
| Motherboard Supported | WIO |
| Number of Fans Supported | 5 |
| Fan Size Supported | 3.15" (80 mm),2.36" (60 mm) |
| Features | On/Off Button,Reset Button,Intrusion Switch,Hot Swappable Bay |
| Bays | |
| Number of Internal 3.5" Bays | 12 |
| Number of Internal 2.5" Bays | 2 |
| I/O Expansions | |
| Total Number of Expansion Slots | 7 |
| Power Description | |
| Power Supply Wattage | 1.20 kW |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Cooler Type | Fan Cooler |
| Compatible Rack Unit | 2U |
| Form Factor | Rack-mountable |
| Height | 3.50" (88.90 mm) |
| Width | 17.20" (436.88 mm) |
| Depth | 25.50" (647.70 mm) |
| Weight (Approximate) | 40 lb (18143.6948 g) |
[/custom-specifications]
