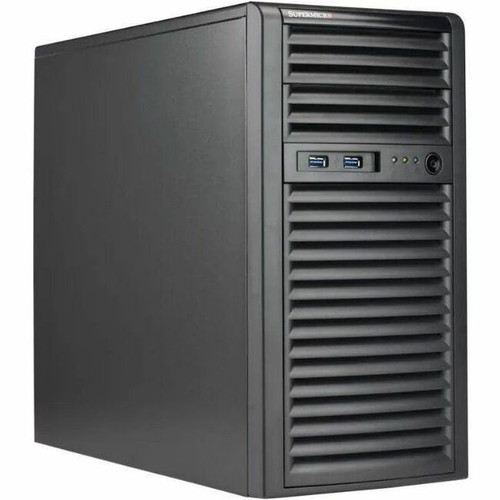

Supermicro SuperChassis R600B Mid-tower Server Case Black 10 Bay 600 W Support Micro ATX EATX Installed Fan S X CSE-732I-R600B
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- 1 x SC732 PS2 Power Supply Bracket (MCP-250-73201-0N)
- 1 x ROUND 16 TO 16 Pin Ribbon FP Cable 30"L, LF (CBL-0071L)
- 1 x 16PIN Front CTRL SPLIT Convector 6" ,PB Free (CBL-0084L)
- 1 x 20p,F to 2x USB 3.0 type A,F,70CM,26/30AWG,RoHS (CBL-CUSB-1007)
- 7 x Blank FH L-Bracket with 4x4 Vent Holes (MCP-120-00116-0N)
- 1 x SC732i USB2.0 Module Assembly (MCP-230-73201-0N)
- 1 x 12 CM x12 CM Fan (FAN-0124L4)
- 1 x Black SC732i Front IO Dummy Cover (MCP-210-73201-0B)
- 1 x Black SC731i Plastic Front Control Panel Assembly (MCP-280-73101-0B)
- 4 x SC731 Tool-less Internal 3.5inch HDD Tray (MCP-220-73101-0B)
- 1 x 600W PS2 Redundant Power supply,RoHS (PWS-603R-PQ)
Motherboard Supported: Micro ATX,EATX,ATX
Number of Fans Supported: 2
Number of Fans Installed: 1
Fan Size Supported: 4.72" (120 mm)
Installed Fan Size: 4.72" (120 mm)
Installed Fan Size Details: 1 x 120mm
Features: Kensington Lock,On/Off Button,LED Display
Window Panel: Yes
Window Panel Location: Front
Number of External 5.25" Bays: 2
Number of Internal 3.5" Bays: 4
Number of Internal 2.5" Bays: 4
Number of Total Expansion Bays: 10
Total Number of Expansion Slots: 7
Total Number of USB Ports: 2
USB Port Details: 2 x USB 3.0
Front USB: Yes
Power Supply Wattage: 600 W
Color Family: Black
Product Color: Black
Cooler Type: Fan Cooler
Form Factor: Mid-tower
Height: 16.70" (424.18 mm)
Width: 7.60" (193.04 mm)
Depth: 20.68" (525.27 mm)
Weight (Approximate): 28 lb (12700.59 g)
Package Contents:
- 90° Rotatable HDD Cage
- Kensington Lock Security
- Front I/O Ports: 2x USB 3.0
- 1x Optional Front 12cm (1850 RPM) PWM Fan
- Mid-Tower Chassis Supports Micro-ATX Motherboard, Sizes E-ATX/ATX/Micro ATX
- 600W Redundant Power supply
- 1x Rear 12cm (1850 RPM) PWM Fan
- 2x 5.25" External HDD Drive Bays & 4x 3.5" Internal HDD Drive Bays
[custom-specifications]
| Specifications | |
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | CSE-732I-R600B |
| Manufacturer Website Address | http://www.supermicro.com |
| Brand Name | Supermicro |
| Product Line | SuperChassis |
| Product Name | SuperChassis 732I-R600B |
| Product Type | Computer Case |
| Technical Information | |
| Motherboard Supported | Micro ATX,EATX,ATX |
| Number of Fans Supported | 2 |
| Number of Fans Installed | 1 |
| Fan Size Supported | 4.72" (120 mm) |
| Installed Fan Size | 4.72" (120 mm) |
| Installed Fan Size Details | 1 x 120mm |
| Features | Kensington Lock,On/Off Button,LED Display |
| Window Panel | Yes |
| Window Panel Location | Front |
| Bays | |
| Number of External 5.25" Bays | 2 |
| Number of Internal 3.5" Bays | 4 |
| Number of Internal 2.5" Bays | 4 |
| Number of Total Expansion Bays | 10 |
| I/O Expansions | |
| Total Number of Expansion Slots | 7 |
| Interfaces/Ports | |
| Total Number of USB Ports | 2 |
| USB Port Details | 2 x USB 3.0 |
| Front USB | Yes |
| Power Description | |
| Power Supply Wattage | 600 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Cooler Type | Fan Cooler |
| Form Factor | Mid-tower |
| Height | 16.70" (424.18 mm) |
| Width | 7.60" (193.04 mm) |
| Depth | 20.68" (525.27 mm) |
| Weight (Approximate) | 28 lb (12700.59 g) |
| Miscellaneous | |
| Package Contents |
|
