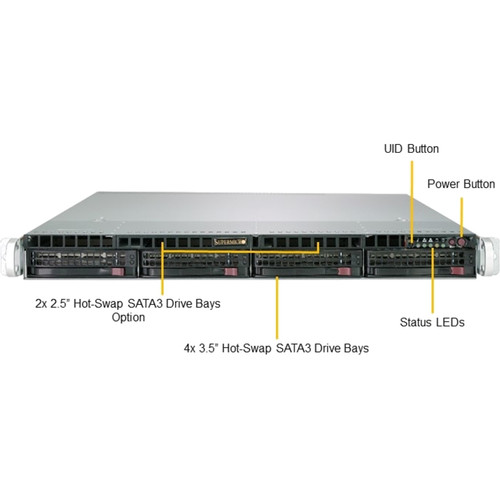

Supermicro SuperServer 5019C-WR Server Barebone System - 1U Rack-mountable - Socket H4 LGA-1151 - 1 x Processor Support - Intel C246 - (SYS-5019C-WR)
SKU:
SYS-5019C-WR
UPC:
672042326105
(No reviews)
Write a Review
Write a Review
Supermicro
Supermicro SuperServer 5019C-WR Server Barebone System - 1U Rack-mountable - Socket H4 LGA-1151 - 1 x Processor Support - Intel C246 - (SYS-5019C-WR)
MSRP:
$2,044.99
$2,044.99
$1,822.99
Save:
$222.00 (10.86%)
Warranty Information:
3 Year
Condition:
New
Width:
43.69
(cm)
Height:
4.32
(cm)
Depth:
65.02
(cm)
B2B Pricing
Business volume discounts
IT Experts
Technical guidance
IT Configuration
Preparation & staging
Canada Stock
QC · ON · AB · BC
Product Features
Description
[custom-highlights][/custom-highlights]
- SuperServer 5019C-WR (Black)
- 1 x Super X11SCW-F Motherboard
- 1 x 1U Chassis
- 1 x 1U 4-Port 12Gbps Backplane Support 4x3.5
- 1 x 4 pin to 4 pin fan extension cord, for PWM fan. 23cm. 24AWG
- 2 x SATA,INT,ROUND,ST-RA,55CM,30AWG
- 1 x SATA,INT,ROUND,ST-RA,70CM,30AWG
- 1 x CBL,SGPIO,2X4F TO 2X4F,P2.54,ROUND CABLE,27CM,28AWG
- 1 x SATA,INT,ROUND,ST-RA,45CM,30AWG
- 2 x 40x40x56 mm 13K-11K RPM Counter-rotating Fan,RoHS/REACH
- 1 x SC815/113/116 Intel DP X9, X8 PC air shroud, 12x13MB
- 1 x 5019C-WR Quick Reference Guide
- 1 x 1U RHS WIO Riser card with one PCI-E x8 slot
- 1 x 1U LHS WIO w/ 2 PCI-E x8 slots or PCI-E x16 slot
- 1 x 1U Passive Enhanced Performance CPU Heat Sink for Intel Socket H Series Processors
- 2 x 500W 1U Redundant PWS W/ 54.5MM Wide
- 1 x WIO X11 Support,PDB-PT112-S2424 is based on PDB-PT112-2424
- 1 x CBL,FRONT CNTL,20 TO 20 PIN,RA,RND TUBE,73CM,28AWG
- 2 x PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,13A,125V,RoHS/REACH
- 1 x FAN HOLDER FOR SIX 40X56MM COUNTER ROTATING FANS
- 1 x Black DVD dummy cover for SC813, 813M, 815, PBF-RoHS
- 3 x 40x40x56 mm 13K-11K RPM Counter-rotating Fan,RoHS/REACH
- 1 x 815 UIO front control board (U)
- 1 x Blank LP L-bracket (1 raw of capsule hole)
- 2 x Blank FH L bracket w/o SCSI cutout for SC825,836,846,743
- 4 x Black gen 5.5 hot-swap 3.5"; HDD tray
- 1 x WIO rear window for SC113,SC116, SC815 Redundant PWS
- 1 x SC815 Redundant Power Distributor Cover
- 1set x Rail set, quick/quick, optional for 1U 17.2
- 3 x Dummy fan 40x56mm for 40x56 counter-rotating fan (cost-effective)
Number of Processors Supported: 1
Processor Socket: Socket H4 LGA-1151
Processor Supported: Xeon,Core i3,Celeron,Pentium
64-bit Processing: Yes
Chipset Manufacturer: Intel
Chipset Model: C246
Maximum Memory Supported: 128 GB
Memory Technology: DDR4 SDRAM
Memory Standard: DDR4-2666/PC4-21300
Total Number of Memory Slots: 4
Controller Type: Serial ATA/600
RAID Supported: Yes
Ethernet Technology: Gigabit Ethernet
Number of Total Expansion Bays: 4
Number of 3.5" Bays: 4
Number of PCI Express x4 Slots: 1
Total Number of USB Ports: 4
Number of SATA Interfaces: 6
Input Voltage: 120 V AC,230 V AC
Number of Power Supplies Installed: 2
Maximum Power Supply Wattage: 500 W
Color Family: Black
Product Color: Black
Form Factor: Rack-mountable
Rack Height: 1U
Height: 1.70" (43.18 mm)
Width: 17.20" (436.88 mm)
Depth: 25.60" (650.24 mm)
Weight (Approximate): 25 lb (11340 g)
Package Contents:
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 3 Year
- Intel Xeon processor provides high performance, built-in security, and remote management for enterprise systems
- With Serial ATA/600 interface, experience high-speed data transfer and robust reliability for optimized system performance
- Rack-mountable server barebone system offers easy installation and convenient access for streamlined maintenance
- Can connect up to 4 USB peripherals for versatile and productive device integration
- Gigabit Ethernet offers speeds up to 10x faster than standard Ethernet, ensuring high-performance uplinks and reliability
- DDR4 SDRAM slot reduces processor idle time, improving multitasking and overall computing speed
[custom-specifications]
| Specifications | |
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | SYS-5019C-WR |
| Manufacturer Website Address | http://www.supermicro.com |
| Brand Name | Supermicro |
| Product Line | SuperServer |
| Product Model | 5019C-WR |
| Product Name | SuperServer 5019C-WR (Black) |
| Product Type | Server Barebone System |
| Processor | |
| Number of Processors Supported | 1 |
| Processor Socket | Socket H4 LGA-1151 |
| Processor Supported | Xeon,Core i3,Celeron,Pentium |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C246 |
| Memory | |
| Maximum Memory Supported | 128 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-2666/PC4-21300 |
| Total Number of Memory Slots | 4 |
| Controllers | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 4 |
| Number of 3.5" Bays | 4 |
| Number of PCI Express x4 Slots | 1 |
| Interfaces/Ports | |
| Total Number of USB Ports | 4 |
| Number of SATA Interfaces | 6 |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Number of Power Supplies Installed | 2 |
| Maximum Power Supply Wattage | 500 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Height | 1.70" (43.18 mm) |
| Width | 17.20" (436.88 mm) |
| Depth | 25.60" (650.24 mm) |
| Weight (Approximate) | 25 lb (11340 g) |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
[/custom-specifications]
