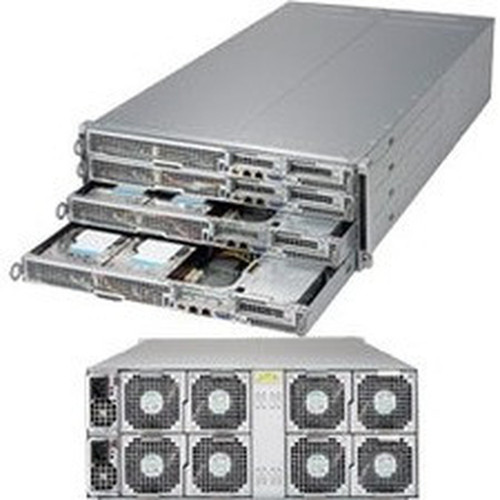

Supermicro SuperServer F618H6-FT+ Server Barebone System - 4U Rack-mountable - Socket R3 LGA-2011 - 2 x Processor Support - Intel C612 (SYS-F618H6-FT+)
SKU:
SYS-F618H6-FT+
(No reviews)
Write a Review
Write a Review
Supermicro
Supermicro SuperServer F618H6-FT+ Server Barebone System - 4U Rack-mountable - Socket R3 LGA-2011 - 2 x Processor Support - Intel C612 (SYS-F618H6-FT+)
MSRP:
$11,517.99
$11,517.99
$10,270.99
Save:
$1,247.00 (10.83%)
Warranty Information:
3 Year
Condition:
New
Width:
44.78
(cm)
Height:
17.68
(cm)
Depth:
88.90
(cm)
B2B Pricing
Business volume discounts
IT Experts
Technical guidance
IT Configuration
Preparation & staging
Canada Stock
QC · ON · AB · BC
Product Features
Description
[custom-highlights][/custom-highlights]
- SuperServer F618H6-FT+
- 4 x Super X10DRFF-CG Motherboard
- 1 x 4U Chassis
- 4 x BPN;SASADP;SAS827-H8;H8DTT;cable req
- 8 x 4-port 1U CSE-801 cold storage backplane with thermistor and individual HDD power cycle, support up to 4x 3.5-inch SAS2/SATA3 HDD/SSD
- 8 x 1-port 1U CSE-801 cold storage backplane with thermistor and individual HDD power cycle, support up to 1x 3.5-inch SAS2/SATA3 HDD/SSD
- 4 x 2-port 1U CSE-801 cold storage backplane with thermistor and individual HDD power cycle, support up to 2x 3.5-inch SAS2/SATA3 HDD/SSD
- 4 x PWYCB,2X4F/GPU to 3 2X2F,P4.2, 36/54/65CM, 18AWG, 5/12V
- 4 x internal mini SAS HD to 4 SATA 50CM, S, w/50cm SB,HF,RoHS/REACH,PBF
- 8 x INT P0.3 40p to 40p HS FPC 85 ohms impedance,11cm,0.2mm thick,RoHS/REACH
- 4 x PWYCB,2X4F/GPU to 2 2X2F,P4.2,39/41CM+2 RA SATA PWR 29CM,18G
- 4 x 81CM 30AWG SATA S-S cable
- 8 x 45cm SATA cable S-RA 30AWG,RoHS/REACH
- 4 x internal 6G mini SAS HD to 4 SATA, 75/75/90/90cm w/75cm SB, S. 30AWG,HF,RoHS/REACH,PBF
- 4 x 31cm SATA cable S-RA 30AWG,RoHS/REACH
- 1 x CAUTION LABEL FOR REDUNDANT PWR SYSTEMS
- 4 x ,RoHS/REACH LHS 1U PCI-E x8 (F2)
- 4 x LHS Riser Card with PCI-Ex8,RoHS/REACH (F1)
- 4 x 1U Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Narrow ILM MB
- 4 x 1U Passive Front CPU Heat Sink w/ a Side Air Channel for X9, X10 Systems Equipped with a Narrow ILM MB
- 2 x AC-DC 2000W, Titanium Level, Redundancy, 1U, PMBus 1.2, +12V/+5Vsb, 360x76x40mm,HF,RoHS/REACH
Number of Nodes: 4
Number of Processors Supported: 2
Processor Socket: Socket R3 LGA-2011
Processor Supported: Xeon
64-bit Processing: Yes
Chipset Manufacturer: Intel
Chipset Model: C612
Maximum Memory Supported: 2 TB
Memory Technology: DDR4 SDRAM
Memory Standard: DDR4-2133/PC4-17000
Total Number of Memory Slots: 16
Controller Type: 12Gb/s SAS,Serial ATA/600
RAID Supported: Yes
Ethernet Technology: Gigabit Ethernet
Number of Total Expansion Bays: 12
Number of 3.5" Bays: 12
Total Number of Expansion Slots: 2
Number of PCI Express x8 Slots: 2
Total Number of USB Ports: 2
Number of USB 3.0 Ports: 2
Number of SATA Interfaces: 10
Number of SAS Interfaces: 8
Input Voltage: 120 V AC,230 V AC
Number of Power Supplies Installed: 2
Maximum Power Supply Wattage: 2 kW
Color Family: Black
Product Color: Black
Form Factor: Rack-mountable
Rack Height: 4U
Height: 6.96" (176.78 mm)
Width: 17.63" (447.80 mm)
Depth: 35" (889 mm)
Weight (Approximate): 200 lb (90718.47 g)
Package Contents:
Environmentally Friendly: Yes
Limited Warranty: 3 Year
- Intel Xeon processor provides high performance, built-in security, and remote management for enterprise systems
- 12Gb/s SAS interface offers exceptional speed and reliability, ideal for enterprise-grade storage and high-performance systems
- Rack-mountable server barebone system maximizes space utilization while providing easy access to essential components
- With 2 USB ports, connect or disconnect devices without shutting down the system for convenience
- Gigabit Ethernet is highly efficient for large file transfers, making it ideal for backups and heavy data workflows
- DDR4 SDRAM slot supports high-speed operation with low power use, delivering optimal performance and thermal efficiency
[custom-specifications]
| Specifications | |
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | SYS-F618H6-FT+ |
| Manufacturer Website Address | http://www.supermicro.com |
| Brand Name | Supermicro |
| Product Line | SuperServer |
| Product Model | F618H6-FT+ |
| Product Name | SuperServer F618H6-FT+ |
| Product Type | Server Barebone System |
| Processor | |
| Number of Nodes | 4 |
| Number of Processors Supported | 2 |
| Processor Socket | Socket R3 LGA-2011 |
| Processor Supported | Xeon |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C612 |
| Memory | |
| Maximum Memory Supported | 2 TB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-2133/PC4-17000 |
| Total Number of Memory Slots | 16 |
| Controllers | |
| Controller Type | 12Gb/s SAS,Serial ATA/600 |
| RAID Supported | Yes |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 12 |
| Number of 3.5" Bays | 12 |
| Total Number of Expansion Slots | 2 |
| Number of PCI Express x8 Slots | 2 |
| Interfaces/Ports | |
| Total Number of USB Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| Number of SATA Interfaces | 10 |
| Number of SAS Interfaces | 8 |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Number of Power Supplies Installed | 2 |
| Maximum Power Supply Wattage | 2 kW |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Rack-mountable |
| Rack Height | 4U |
| Height | 6.96" (176.78 mm) |
| Width | 17.63" (447.80 mm) |
| Depth | 35" (889 mm) |
| Weight (Approximate) | 200 lb (90718.47 g) |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
[/custom-specifications]
