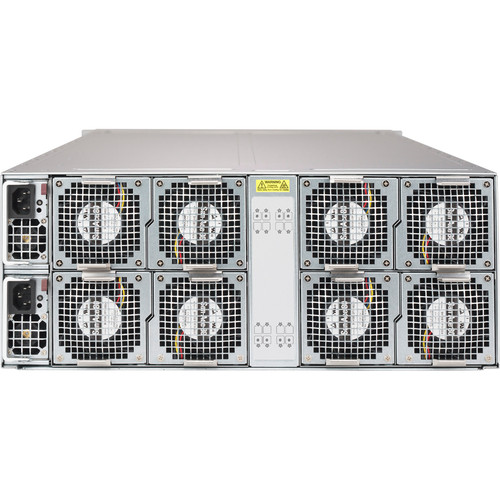

Supermicro SuperServer F619H6-FT Server Barebone System - 4U Rack-mountable - Socket P LGA-3647 - 2 x Processor Support - Intel C621 - (SYS-F619H6-FT)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- SuperServer F619H6-FT (Black)
- 8 x Super X11DPFF-SN Motherboard
- 1 x 4U Chassis
- 4 x Power Adapter Card for X11DPFF,RoHS
- 4 x 2-port 1U CSE-801 Backplane with Thermistor and Individual HDD Power Cycle, Support up to 2x 3.5-inch HDD/SSD
- 8 x 4-port 1U CSE-801 Backplane with Thermistor and Individual HDD Power Cycle, Support up to 4x 3.5-inch HDD/SSD
- 4 x 12G 2-Port Backplane to Support 2*3.5" SAS3/SATA3 HDD for X11 FatTwin (Base on BPN-SAS3-SCP1T-A2-AC107),HF,RoHS
- 4 x CBL,SGPIO,2X5F TO 2X5F,P2.54,31CM, 24AWG
- 2 x PWCD,US,IEC60320 C14 TO C13,3FT,14AWG
- 8 x PWR EXT,2X2F/P3.0 to 2X2F/P3.0, LED/GND/5V/12V, 72CM, 22AWG
- 8 x PWEX,2X4F/P4.2 TO 2X4F/P4.2,27CM,16AWG,RoHS
- 4 x PWEX,2X4F/P4.2 TO 2X2F/P4.2 x2,BLK*4,YEL*2,RED*2,20CM,16AWG
- 4 x PWEX,2X4F/P4.2 TO 2X2F/P4.2 x2,BLK*4,YEL*2,RED*2,21/51CM,16AWG
- 4 x MINI SAS HD-4 SATA,12G,INT,43/40/40/43CM,30AWG
- 4 x MINI SAS HD-4 SATA,12G,INT,59/56/59/56CM,30AWG
- 4 x MINI SAS HD-4 SATA,12G,INT,75/75/90/90CM,75CM SB,28/30AWG,Ro
- 4 x RSC-P-6 (1U LHS TwinPro RSC with 1 PCI-Ex16),RoHS
- 4 x RSC-R1UF-E16R
- 4 x 1U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
- 4 x 1U Passive CPU Heat Sink with a 17-mm Wide Side Air Channel for X11 Purley Platform Equipped with a Narrow Retention Mechanism
- 2 x 1U 2200W Redundant, Titanium, 76(W) X 40(H) X 336(L) mm
- 1 x Fat Twin 4U 4-Node Power Middle-plane with LCMC. Support 2x Power Supplies.
- 1 x Fat twin F418 / F424 Static Rail Set Support 28-33.5 Inch Depth Rail,RoHS/REACH,PBF
Number of Nodes: 4
Number of Processors Supported: 2
Processor Socket: Socket P LGA-3647
Processor Supported: Xeon Platinum,Xeon Gold,Xeon Silver,Xeon Bronze
64-bit Processing: Yes
Chipset Manufacturer: Intel
Chipset Model: C621
Maximum Memory Supported: 3 TB
Memory Technology: DDR4 SDRAM
Memory Standard: DDR4-2933/PC4-23466
Total Number of Memory Slots: 12
Intel Optane Memory Ready: Yes
Controller Type: Serial ATA/600
RAID Supported: Yes
Ethernet Technology: Ethernet
Number of Total Expansion Bays: 12
Number of 3.5" Bays: 12
Total Number of Expansion Slots: 3
Number of PCI Express x8 Slots: 1
Number of PCI Express x16 Slots: 2
Total Number of USB Ports: 2
Number of USB 3.0 Ports: 2
Number of SATA Interfaces: 14
Input Voltage: 120 V AC,230 V AC
Number of Power Supplies Installed: 2
Color Family: Black
Product Color: Black
Form Factor: Rack-mountable
Rack Height: 4U
Height: 6.96" (176.78 mm)
Width: 17.63" (447.80 mm)
Depth: 29" (736.60 mm)
Weight (Approximate): 150 lb (68038.86 g)
Package Contents:
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 3 Year
- Perform computational tasks efficiently with Xeon Platinum processor for smooth and reliable performance
- With Serial ATA/600 interface, experience high-speed data transfer and robust reliability for optimized system performance
- Rack-mountable server barebone system maximizes space utilization while providing easy access to essential components
- Can connect up to 2 USB peripherals for versatile and productive device integration
- Ethernet connectivity streamlines workflows by enabling resource sharing across workstations for improved efficiency
- DDR4 SDRAM slot reduces processor idle time, improving multitasking and overall computing speed
[custom-specifications]
| Specifications | |
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | SYS-F619H6-FT |
| Manufacturer Website Address | http://www.supermicro.com |
| Brand Name | Supermicro |
| Product Line | SuperServer |
| Product Model | F619H6-FT |
| Product Name | SuperServer F619H6-FT (Black) |
| Product Type | Server Barebone System |
| Processor | |
| Number of Nodes | 4 |
| Number of Processors Supported | 2 |
| Processor Socket | Socket P LGA-3647 |
| Processor Supported | Xeon Platinum,Xeon Gold,Xeon Silver,Xeon Bronze |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C621 |
| Memory | |
| Maximum Memory Supported | 3 TB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-2933/PC4-23466 |
| Total Number of Memory Slots | 12 |
| Intel Optane Memory Ready | Yes |
| Controllers | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| Network & Communication | |
| Ethernet Technology | Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 12 |
| Number of 3.5" Bays | 12 |
| Total Number of Expansion Slots | 3 |
| Number of PCI Express x8 Slots | 1 |
| Number of PCI Express x16 Slots | 2 |
| Interfaces/Ports | |
| Total Number of USB Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| Number of SATA Interfaces | 14 |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Number of Power Supplies Installed | 2 |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Rack-mountable |
| Rack Height | 4U |
| Height | 6.96" (176.78 mm) |
| Width | 17.63" (447.80 mm) |
| Depth | 29" (736.60 mm) |
| Weight (Approximate) | 150 lb (68038.86 g) |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
[/custom-specifications]
[custom-options]
| Product | Supermicro Heatsink - Compatible Intel Socket: P LGA-3647 - Processor |
| SKU | SNK-P0067PS |
| Sale Price | $61.95 |
[/custom-options]
