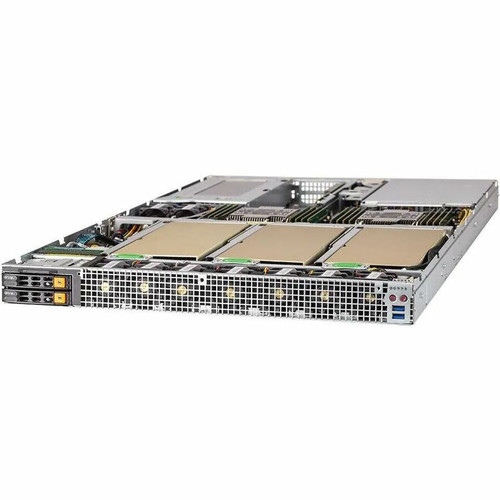

Supermicro SuperServer Rackmount Barebone Dual Processor Ready Socket LGA-4189 Server System Rack-mountable Support C621A Intel X SYS-120GQ-TNRT
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- SuperServer 120GQ-TNRT Barebone System
- 1 x Super X12DGQ-R Motherboard
- 1 x 1U Chassis
- 1 x 1U 2-Port PCIe Gen 4 U.2 NVMe Backplane for 1U GPU System
- 2 x 55CM 30AWG SATA S-S CBL
- 2 x PWCD,US/EU/Canada/China/Australia,IEC60320 C14 TO C13,4FT,17
- 3 x GPU,2x4F/RA/CPU to 2x4F/CPU,P4.2, 35CM, 17AWG, 8A/pin,RoHS
- 1 x GPU,2x4F/RA/CPU to 2x4F/CPU,P4.2, 14CM, 17AWG, 8A/pin,RoHS
- 1 x SlimSASLP (x8 STR to x8 STR),43CM,85 OHM,RoHS
- 1 x [NR] MicroFit,(2x2 to 2x2),PH3.0,55CM,10A/pin,16AWG,RoHS
- 1 x [NR] 2X2,PH3.0 TO BIG 4PIN,1X4,PH5.08,18AWG,35CMN
- 1 x 1U LHS GPU Riser card with two PCIe 4.0 x16slots,HFRoHS
- 1 x 1U LHS GPU Riser card with one PCIe 4.0 x16slot,HF,RoHS
- 3 x 1U RHS GPU Riser card with one PCIe 4.0 x16slot,HF,RoHS
- 1 x License key for enabling OOB BIOS management
- 2 x X12 ICX/CPX CPU Heatsink (78x113x25.5mm), VC Base, Cu Fin
- 1 x (EOL)AOM-PIO-I2XT-O-P
- 1 x Riser card using Intel X710 for GPU AMD/Intel systems
- Fan adaptor board for SC118GQE,RoHS
- 2 x 1U 2000W Redundant Titanium Power Supply W/PMbus 73.5x40x265mm,RoHS/REACH
- 9 x 40x40x56 mm, 29.5K-25.5K RPM, Counter-rotating Fan, RoHS
- 1 x Front control board with temperature sensor for SC118GQE
- 2 x Black gen-3 2.5 NVMe drive tray, Orange tab with lock (improved EMI for hotswap NVMe drive)
- 1 x SC118GQE2 Air Shroud / Blocker Set for X12DGQ (4 Parts)
- 1 x SC118GQE Rear Window for 2x PCI-FL or 4th GPU
- 1 x Rail set, Quick/Quick, Auto Latch, travel 609.1mm Short Version, RACK POST=26.5, 1U 17.2 SC118GQE 1U 4xGPU
Number of Processors Supported: 2
Processor Socket: Socket LGA-4189
Processor Supported: Xeon Platinum,Xeon Gold,Xeon Silver,Xeon Bronze
64-bit Processing: Yes
Chipset Manufacturer: Intel
Chipset Model: C621A
Maximum Memory Supported: 4 TB
Memory Technology: DDR4 SDRAM
Memory Standard: DDR4-3200/PC4-25600
Total Number of Memory Slots: 16
Intel Optane Memory Ready: Yes
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0, 1, 5, 10
Number of Total Expansion Bays: 4
Total Number of Expansion Slots: 6
Number of PCI Express x16 Slots: 6
Number of M.2 Interfaces: 1
Total Number of USB Ports: 2
Number of USB 3.0 Ports: 2
Number of VGA Ports: 1
Input Voltage: 230 V AC
Number of Power Supplies Installed: 2
Maximum Power Supply Wattage: 2 kW
Color Family: Dual Color
Product Color: Black,Silver
Form Factor: Rack-mountable
Rack Height: 1U
Height: 1.70" (43.18 mm)
Width: 17.20" (436.88 mm)
Depth: 35.20" (894.08 mm)
Weight (Approximate): 44.97 lb (20400 g)
Package Contents:
Limited Warranty: 1 Year
Additional Warranty Information:
Supermicro provides a three-year warranty for labor and one-year warranty for parts.
- Perform computational tasks efficiently with Xeon Platinum processor for smooth and reliable performance
- DDR4 SDRAM slot supports high-speed operation with low power use, delivering optimal performance and thermal efficiency
- Rack-mountable server barebone system ensures clutter-free, organized setups with improved accessibility and efficiency
- Serial ATA/600 interface delivers fast data transfer and higher throughput, ensuring smooth performance for demanding workloads
- With 2 USB ports, connect or disconnect devices without shutting down the system for convenience
[custom-specifications]
| Specifications | |
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | SYS120GQTNRT |
| Manufacturer Website Address | http://www.supermicro.com |
| Brand Name | Supermicro |
| Product Line | SuperServer |
| Product Model | 120GQ-TNRT |
| Product Name | SuperServer 120GQ-TNRT Barebone System |
| Product Type | Server Barebone System |
| Processor | |
| Number of Processors Supported | 2 |
| Processor Socket | Socket LGA-4189 |
| Processor Supported | Xeon Platinum,Xeon Gold,Xeon Silver,Xeon Bronze |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C621A |
| Memory | |
| Maximum Memory Supported | 4 TB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
| Total Number of Memory Slots | 16 |
| Intel Optane Memory Ready | Yes |
| Controllers | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 10 |
| I/O Expansions | |
| Number of Total Expansion Bays | 4 |
| Total Number of Expansion Slots | 6 |
| Number of PCI Express x16 Slots | 6 |
| Number of M.2 Interfaces | 1 |
| Interfaces/Ports | |
| Total Number of USB Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| Number of VGA Ports | 1 |
| Power Description | |
| Input Voltage | 230 V AC |
| Number of Power Supplies Installed | 2 |
| Maximum Power Supply Wattage | 2 kW |
| Physical Characteristics | |
| Color Family | Dual Color |
| Product Color | Black,Silver |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Height | 1.70" (43.18 mm) |
| Width | 17.20" (436.88 mm) |
| Depth | 35.20" (894.08 mm) |
| Weight (Approximate) | 44.97 lb (20400 g) |
| Miscellaneous | |
| Package Contents |
|
| Warranty | |
| Limited Warranty | 1 Year |
| Additional Warranty Information | Supermicro provides a three-year warranty for labor and one-year warranty for parts. |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Additional-pdf1
[/custom-user-manual]
