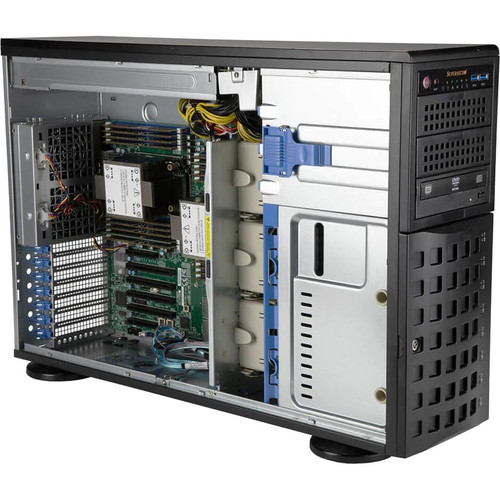

Supermicro SYS-740P-TRT SuperServer Barebone System - 4U Tower - Dual Socket LGA-4189 - Intel C621A Chip - 4TB Memory Support
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This server platform features comprehensive expansion capabilities with six PCIe slots including four x16 and two x8 configurations, providing ample bandwidth for high-performance networking cards, storage controllers, and accelerator cards. The memory subsystem supports up to 4TB of DDR4-3200 memory across sixteen slots, with Intel Optane memory readiness for future performance enhancements.
Storage connectivity is handled by Serial ATA/600 controllers supporting eight 3.5" drive bays, enabling substantial storage capacity for data-intensive applications. Network connectivity includes 10 Gigabit Ethernet for high-speed data transfer, while the I/O panel provides six USB ports with four USB 3.0 interfaces for peripheral connectivity.
This section brings together practical product details such as Number of Processors Supported, Processor Socket, Processor Supported, Chipset Manufacturer, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The dual 1.20 kW power supplies with redundant configuration deliver reliable power delivery for mission-critical applications, supporting both 120V and 230V input voltages. This power architecture ensures continuous operation and provides headroom for power-hungry components in demanding server configurations.
Enterprise-Grade Expansion
Six PCIe slots and eight drive bays provide exceptional expansion flexibility for storage, networking, and acceleration cards to meet evolving workload demands.
- 4 x PCIe x16 slots for high-bandwidth cards
- 2 x PCIe x8 slots for additional expansion
- 8 x 3.5" bays for substantial storage capacity
High-Performance Memory Architecture
Support for 4TB of DDR4-3200 memory across sixteen slots ensures ample capacity for memory-intensive applications and virtualization workloads.
- DDR4-3200/PC4-25600 memory standard
- Intel Optane memory ready
- 4TB maximum memory support
Deployment / Use Cases
This barebone system serves as an ideal foundation for building enterprise servers for database applications, where the combination of processor performance, memory capacity, and storage expansion supports demanding transactional workloads. The tower form factor with 4U rack height compatibility provides deployment flexibility for both rack-mounted and standalone installations.
For high-performance computing applications, the platform's expansion capabilities allow integration of specialized accelerator cards while maintaining substantial storage capacity for large datasets. The redundant power supply configuration ensures reliability for continuous operation in 24/7 environments.
Virtualization Host
With dual processor support, substantial memory capacity, and multiple expansion slots, this platform excels as a virtualization host for consolidating multiple virtual machines and applications.
Data Analytics Server
The combination of high-speed memory, multiple drive bays, and 10GbE networking makes this system well-suited for data analytics workloads requiring fast data processing and storage.
Physical Profile
The black tower chassis measures 17.80" in height, 7" in width, and 25.50" in depth, with a weight of approximately 56.44 pounds. The 4U rack height designation provides compatibility with standard server racks while the tower form factor offers accessible internal layout for component installation and maintenance.
The physical design emphasizes serviceability with straightforward access to internal components, making upgrades and maintenance efficient. The black finish provides a professional appearance suitable for data center environments, while the substantial chassis construction ensures stability for the installed components.
- Width
- 7" (177.80 mm)
- Depth
- 25.50" (647.70 mm)
- Height
- 4U
- Weight
- 56.44 lb (25600 g)
Highlights
- Dual Socket LGA-4189 platform supporting Xeon Platinum/Gold/Silver/Bronze processors
- Intel C621A chipset for enterprise-grade server functionality
- 4TB maximum memory capacity with DDR4-3200 support across 16 slots
- Six PCIe expansion slots including four x16 and two x8 configurations
- Eight 3.5" drive bays with Serial ATA/600 controller support
- 10 Gigabit Ethernet for high-speed network connectivity
- Dual 1.20 kW power supplies with redundant configuration
- 4U tower form factor with rack compatibility
- Six USB ports including four USB 3.0 interfaces
- Black chassis with professional data center appearance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | SYS-740P-TRT |
| Brand Name | Supermicro |
| Product Line | SuperServer |
| Product Model | SYS-740P-TRT |
| Product Name | SuperServer SYS-740P-TRT (Black) |
| Product Type | Server Barebone System |
| Processor | |
| Number of Processors Supported | 2 |
| Processor Socket | Socket LGA-4189 |
| Processor Supported | Xeon Platinum,Xeon Gold,Xeon Silver,Xeon Bronze |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C621A |
| Memory | |
| Maximum Memory Supported | 4 TB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
| Total Number of Memory Slots | 16 |
| Intel Optane Memory Ready | Yes |
| Controllers | |
| Controller Type | Serial ATA/600 |
| Network & Communication | |
| Ethernet Technology | 10 Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 8 |
| Number of 3.5" Bays | 8 |
| Total Number of Expansion Slots | 6 |
| Number of PCI Express x8 Slots | 2 |
| Number of PCI Express x16 Slots | 4 |
| Interfaces/Ports | |
| Total Number of USB Ports | 6 |
| Number of USB 3.0 Ports | 4 |
| Number of VGA Ports | 1 |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Number of Power Supplies Installed | 2 |
| Maximum Power Supply Wattage | 1.20 kW |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Tower |
| Rack Height | 4U |
| Height | 17.80" (452.12 mm) |
| Width | 7" (177.80 mm) |
| Depth | 25.50" (647.70 mm) |
| Weight (Approximate) | 56.44 lb (25600 g) |
FAQ
What processors are compatible with this barebone system?
The SYS-740P-TRT supports Intel Xeon processors including Platinum, Gold, Silver, and Bronze series through its dual Socket LGA-4189 configuration. This platform accommodates the latest Xeon processor families for enterprise server applications requiring high-performance computing capabilities.
How much memory can this server system support?
This barebone system supports up to 4TB of DDR4-3200 memory across sixteen memory slots. The memory architecture is Intel Optane ready, providing potential for future memory technology enhancements while delivering substantial capacity for memory-intensive workloads.
What expansion capabilities does this system offer?
The platform provides six PCIe expansion slots including four PCIe x16 slots and two PCIe x8 slots, offering extensive bandwidth for networking cards, storage controllers, and accelerator cards. Additionally, eight 3.5" drive bays support substantial storage expansion for data-intensive applications.
What networking features are included?
The system features 10 Gigabit Ethernet connectivity for high-speed network performance, supporting rapid data transfer in enterprise environments. This networking capability is essential for applications requiring fast data movement between servers and storage systems.
What power supply configuration does this system use?
This barebone system includes dual 1.20 kW power supplies with redundant configuration, supporting both 120V and 230V input voltages. This power architecture ensures reliable operation for mission-critical applications and provides sufficient headroom for power-intensive components.
What is the form factor and physical dimensions?
The system features a 4U tower form factor measuring 17.80" in height, 7" in width, and 25.50" in depth, with a weight of approximately 56.44 pounds. The 4U rack height provides compatibility with standard server racks while the tower design offers accessible internal layout for component installation.
What processor or platform detail is listed?
This product uses the Socket LGA-4189 processor for everyday performance and multitasking.
