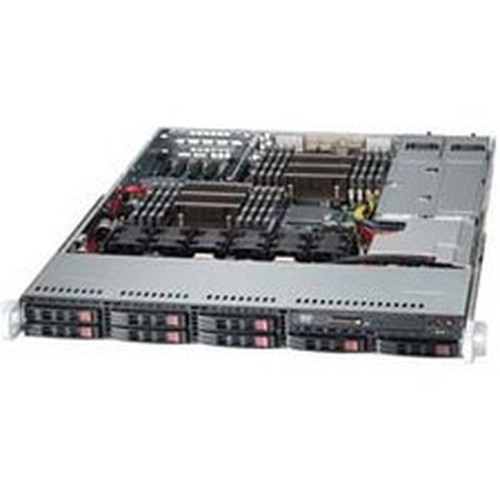

Supermicro SYS-1027R-73DARF SuperServer Barebone System - 1U Rackmount - Dual LGA-2011 - 512GB DDR3 - 6Gb/s SAS/SATA - 750W
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This barebone server leverages the Intel Xeon platform with dual LGA-2011 sockets, enabling scalable multi-core processing for demanding server applications. The memory subsystem utilizes DDR3 SDRAM technology with 16 slots, supporting ECC modules for enhanced reliability in 24/7 operation environments.
Storage flexibility is a key advantage, with the integrated controller managing both SAS and SATA drives at 6Gb/s speeds. The system provides six SATA and eight SAS interfaces, allowing for mixed storage configurations and high-capacity arrays. Network connectivity includes Gigabit and Fast Ethernet ports for seamless integration into existing infrastructure, while nine USB ports offer convenient peripheral attachment.
Relevant factors for this section include Number of Processors Supported, Processor Socket, Processor Supported, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The SuperServer 1027R-73DARF combines high-density compute power with enterprise-grade storage management in a compact 1U footprint. Its dual-processor architecture and substantial memory capacity make it ideal for server consolidation and virtualization projects, reducing physical rack space while maintaining performance.
Storage Versatility
The integrated 6Gb/s SAS/SATA controller with hardware RAID support allows for flexible storage configurations, from high-performance SSD arrays to large-capacity HDD pools, all managed through RAID 0, 1, 1+0, or 5.
- 6 SATA interfaces
- 8 SAS interfaces
- Hardware RAID 0,1,1+0,5
Enterprise Connectivity
Dual Gigabit Ethernet ports provide reliable network throughput, while nine USB ports enable easy connection of management consoles, security dongles, and backup devices without system interruption.
- Gigabit Ethernet
- 9 USB ports
- Fast Ethernet support
Deployment / Use Cases
This barebone system is purpose-built for environments where rack space is at a premium but compute and storage demands are high. Its 1U form factor allows dense deployment in standard server racks, making it suitable for cloud infrastructure, virtualization hosts, and database servers.
IT administrators can deploy the 1027R-73DARF as a virtualization platform running multiple virtual machines, a file server with RAID-protected storage, or a web hosting server handling concurrent user requests. The dual CPU support and extensive memory capacity enable it to handle mixed workloads efficiently, while the hardware RAID controller ensures data protection for critical applications.
Virtualization Host
With dual CPU sockets and 512GB memory support, this system serves as an excellent hypervisor platform for VMware, Hyper-V, or KVM, allowing consolidation of multiple physical servers into virtual machines.
Storage Server
The combination of SAS and SATA interfaces with hardware RAID makes this barebone ideal for NAS or SAN applications, providing both performance and capacity for file serving and backup repositories.
Physical Profile
The SuperServer 1027R-73DARF occupies a single rack unit (1U) with dimensions of 1.70" height, 17.20" width, and 23.50" depth, optimized for standard 19-inch server racks. Its black finish matches typical data center aesthetics, while the 39-pound weight reflects its robust construction with included passive CPU heatsinks and cooling components. The chassis design incorporates proper airflow management for the 1U form factor, ensuring thermal stability during continuous operation.
- Width
- 17.20" (436.88 mm)
- Depth
- 23.50" (596.90 mm)
- Height
- 1U
- Weight
- 39 lb (17690.10 g)
What's in the Box
This barebone system ships as a complete kit ready for processor, memory, and storage installation. The package includes all necessary components for assembly and operation.
Highlights
- Dual Socket R LGA-2011 supports two Intel Xeon processors for scalable compute performance
- 512GB maximum memory capacity across 16 DDR3-1600 slots enables large workload handling
- 6Gb/s SAS and SATA controller with hardware RAID 0,1,1+0,5 ensures data protection and speed
- 1U rackmount form factor optimizes data center density while maintaining full server capabilities
- Gigabit and Fast Ethernet ports provide flexible network connectivity options
- Nine USB ports allow convenient peripheral connection without system shutdown
- 750W power supply with 110/220V AC input supports reliable operation in varied power environments
- Includes complete barebone kit with motherboard, chassis, backplane, heatsinks, and all necessary cables
Specifications
| Specifications | |
|---|---|
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | SYS-1027R-73DARF |
| Brand Name | Supermicro |
| Product Line | SuperServer |
| Product Model | 1027R-73DARF |
| Product Name | SuperServer 1027R-73DARF |
| Product Type | Server Barebone System |
| Processor | |
| Number of Processors Supported | 2 |
| Processor Socket | Socket R LGA-2011 |
| Processor Supported | Xeon |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C602J |
| Memory | |
| Maximum Memory Supported | 512 GB |
| Memory Technology | DDR3 SDRAM |
| Memory Standard | DDR3-1600/PC3-12800 |
| Total Number of Memory Slots | 16 |
| Controllers | |
| Controller Type | Serial ATA/600,6Gb/s SAS |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 1+0, 5 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet,Fast Ethernet |
| I/O Expansions | |
| Total Number of Expansion Slots | 1 |
| Number of PCI Express x8 Slots | 1 |
| Interfaces/Ports | |
| Total Number of USB Ports | 9 |
| Network (RJ-45) | Yes |
| Number of SATA Interfaces | 6 |
| Number of SAS Interfaces | 8 |
| Power Description | |
| Input Voltage | 110 V AC,220 V AC |
| Maximum Power Supply Wattage | 750 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Height | 1.70" (43.18 mm) |
| Width | 17.20" (436.88 mm) |
| Depth | 23.50" (596.90 mm) |
| Weight (Approximate) | 39 lb (17690.10 g) |
| Miscellaneous | |
| Package Contents | SuperServer 1027R-73DARF 1 x Super X9DRD-7LN4F Motherboard 1 x 1U Chassis 1 x SC815/SC113/SC116, DP X9DRD-7LN4F, X9 Malar Air Shroud, 12 x 13 MB 1 x BPN-SAS-113TQ-O-P Backplane 1 x 30AWG 50CM Ipass to 4 SATA, W/50cm SB, S 1 x 9ö 4 pin fan extension cord, for fan guide pin at 1&3 or 1&4 1 x IPASS to 4 SATA, 55,45,35,30, w/55 SB, 30AWG 1 x Driver CD for X9 series 1 x 1U I/O shield for X9 socket R server MB with Gasket 1 x RSC-RR1U-E8 (Rev 3.10) Riser Card 2 x 1U Passive CPU Heat Sink for X9 Generation Motherboards w/ Narrow ILM 2 x 40x56 4Pin PWM, Primary for SC815, Secondary for SC818, 825M 4 x 40x56 4Pin PWM, Primary for SC815, Secondary for SC818, 825M |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
FAQ
What processors are compatible with this barebone system?
The SuperServer 1027R-73DARF supports Intel Xeon processors in the Socket R LGA-2011 interface. This dual-socket configuration allows installation of two compatible Xeon CPUs, providing scalable multi-core performance for server applications. The system uses the Intel C602J chipset to manage processor communication and memory access.
How much memory can this server support and what type does it use?
This barebone system supports up to 512GB of DDR3 SDRAM memory across 16 DIMM slots. The memory standard is DDR3-1600/PC3-12800, which provides efficient data throughput for server workloads. The 16 slots allow flexible memory configurations using ECC modules for enhanced data integrity in enterprise environments.
What storage interfaces and RAID capabilities does it include?
The system features a Serial ATA/600, 6Gb/s SAS controller that supports both SATA and SAS storage devices. It provides six SATA interfaces and eight SAS interfaces for connecting drives. Hardware RAID support includes levels 0, 1, 1+0, and 5, enabling performance striping, mirroring, and parity-based data protection for attached storage arrays.
What expansion slots are available for add-on cards?
The SuperServer 1027R-73DARF includes one PCI Express x8 expansion slot via the included RSC-RR1U-E8 riser card. This slot accommodates standard PCIe cards such as additional network interfaces, storage controllers, or accelerator cards, allowing customization of the server's capabilities to match specific application requirements.
What power supply is included and what are its input requirements?
The barebone system includes a 750-watt power supply capable of supporting dual processors, memory, storage, and expansion cards. It accepts input voltage of either 110V AC or 220V AC, making it suitable for deployment in different geographical regions with varying power standards. The power supply provides stable power delivery for continuous server operation.
What is included in the package for assembly and operation?
The package contains the complete barebone system including the SuperServer 1027R-73DARF chassis with Super X9DRD-7LN4F motherboard, 1U I/O shield, BPN-SAS-113TQ-O-P backplane, RSC-RR1U-E8 riser card, two passive CPU heatsinks, multiple PWM fans, all necessary cables and connectors, and a driver CD for the X9 series. This comprehensive kit provides everything needed to build a functional server after adding processors, memory, and storage drives.
