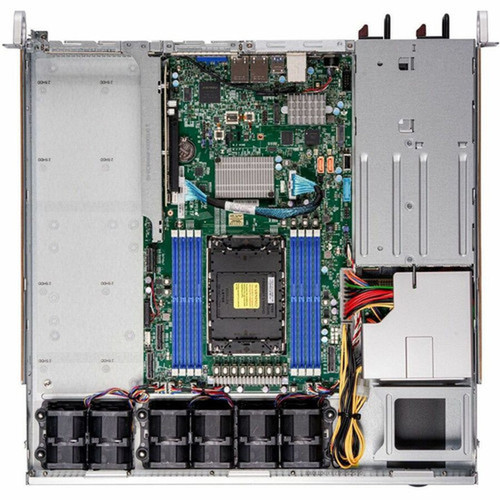

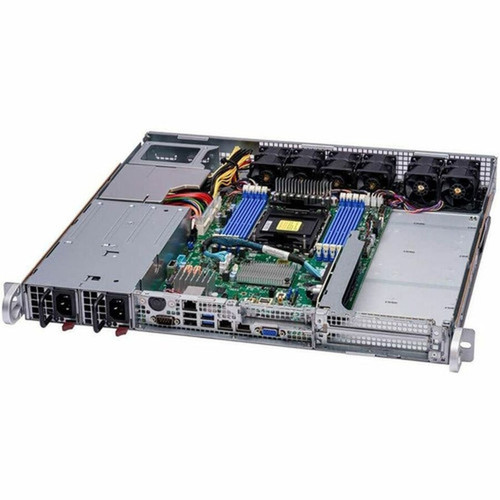

Supermicro SYS-111E-FWTR SuperServer Barebone - 1U Rackmount - LGA-4677 Socket - 2TB DDR5800W Dual PSU - Silver
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the SYS-111E-FWTR is the Intel C741 chipset and an LGA-4677 socket, compatible with Xeon Platinum, Gold, Silver, and Bronze processors for scalable compute performance. The platform supports 64-bit processing and utilizes DDR5 SDRAM technology, enabling high-speed data transfer and efficient memory management for intensive workloads.
Storage and expansion capabilities include a Serial ATA/600 controller with RAID 0 and 1 support, two total expansion bays, three PCI Express x16 slots, and one M.2 interface for NVMe storage. Networking is handled by three RJ-45 ports supporting both Gigabit and 10 Gigabit Ethernet, ensuring robust connectivity for network-intensive tasks.
Relevant factors for this section include Number of Processors Supported, Processor Socket, Processor Supported, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This SuperServer barebone excels in environments where reliability, scalability, and compact design are critical. Its 1U rackmount form factor maximizes space efficiency in data centers while providing ample expansion for customization.
High-Performance Foundation
Built around the Intel C741 chipset and LGA-4677 socket, the system supports the latest Xeon processors and DDR5 memory, delivering enterprise-level compute power for virtualization, databases, and AI workloads.
- Supports Xeon Platinum, Gold, Silver, Bronze
- Up to 2TB DDR5 across 8 slots
- 64-bit processing architecture
Robust Expansion & Connectivity
With three PCIe x16 slots, an M.2 interface, and multiple network ports, the chassis offers extensive options for adding GPUs, storage, and high-speed networking cards to meet specific deployment needs.
- 3 PCIe x16 slots for add-in cards
- 1 M.2 interface for NVMe storage
- Gigabit and 10GbE Ethernet support
Redundant Power & Efficient Design
Dual 800W power supplies provide redundancy for uninterrupted operation, while the 1U silver chassis ensures easy integration into standard server racks with a professional appearance.
- Dual 800W power supplies for reliability
- 1U rack height saves space
- Silver finish for cohesive data center aesthetics
Deployment / Use Cases
The SYS-111E-FWTR is versatile enough for a range of server applications, from traditional data center roles to modern edge computing scenarios. Its balance of performance, expansion, and compactness makes it suitable for environments where space and power efficiency are priorities.
In IoT deployments, this barebone can serve as a centralized hub for data aggregation and processing, leveraging its networking capabilities and expansion slots for custom I/O cards. For enterprise IT, it functions well as a virtualization host, database server, or network appliance, with RAID support ensuring data integrity for critical operations.
Data Center Server
Ideal for hosting virtual machines, running databases, or serving as a network storage node, with redundant power and high-speed networking for uptime and performance.
Edge Computing & IoT Gateway
Deploy in remote locations or industrial settings as a processing unit for sensor data, using its compact size and expansion slots for specialized connectivity modules.
Physical Profile
The server chassis features a 1U rack-mountable design with dimensions of 1.70" (43.18 mm) height, 17.20" (436.88 mm) width, and 16.90" (429.26 mm) depth, weighing approximately 10 lb (4535.92 g). Its silver finish provides a sleek, professional look that integrates seamlessly into standard server racks, while the compact footprint optimizes space utilization in dense data center environments.
- Width
- 17.20" (436.88 mm)
- Depth
- 16.90" (429.26 mm)
- Height
- 1U
- Weight
- 10 lb (4535.92 g)
Highlights
- 1U rackmount barebone chassis with LGA-4677 socket for Intel Xeon processors
- Supports up to 2TB of DDR5 SDRAM across eight memory slots
- Intel C741 chipset with 64-bit processing for enterprise performance
- Dual 800W power supplies provide redundancy and reliable operation
- Three PCIe x16 slots and one M.2 interface for expansion flexibility
- Gigabit and 10 Gigabit Ethernet via three RJ-45 network ports
- Serial ATA/600 controller with RAID 0 and 1 support for storage
- Silver finish and compact design for seamless rack integration
Specifications
| Specifications | |
|---|---|
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | SYS111EFWTR |
| Brand Name | Supermicro |
| Product Line | SuperServer |
| Product Model | SYS-111E-FWTR |
| Product Name | IoT SuperServer SYS-111E-FWTR |
| Product Type | Server Barebone System |
| Processor | |
| Number of Processors Supported | 1 |
| Processor Socket | Socket LGA-4677 |
| Processor Supported | Xeon Platinum,Xeon Gold,Xeon Silver,Xeon Bronze |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C741 |
| Memory | |
| Maximum Memory Supported | 2 TB |
| Memory Technology | DDR5 SDRAM |
| Total Number of Memory Slots | 8 |
| Controllers | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 0, 1 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet,10 Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 2 |
| Total Number of Expansion Slots | 3 |
| Number of PCI Express x16 Slots | 3 |
| Number of M.2 Interfaces | 1 |
| Interfaces/Ports | |
| Total Number of USB Ports | 4 |
| Number of USB 3.2 Gen 1 Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 3 |
| Number of VGA Ports | 1 |
| Power Description | |
| Input Voltage | 120 V AC,240 V AC |
| Number of Power Supplies Installed | 2 |
| Maximum Power Supply Wattage | 800 W |
| Physical Characteristics | |
| Color Family | Silver |
| Product Color | Silver |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Height | 1.70" (43.18 mm) |
| Width | 17.20" (436.88 mm) |
| Depth | 16.90" (429.26 mm) |
| Weight (Approximate) | 10 lb (4535.92 g) |
User Manual
FAQ
What processors are compatible with this SuperServer barebone?
The SYS-111E-FWTR supports Intel Xeon Scalable processors, including Xeon Platinum, Xeon Gold, Xeon Silver, and Xeon Bronze series, using the LGA-4677 socket. This compatibility allows for a range of performance options from entry-level to high-end compute tasks, suitable for various server workloads.
How much memory can this system support and what type is used?
This barebone supports up to 2TB of DDR5 SDRAM across eight memory slots. DDR5 technology offers higher bandwidth and improved efficiency compared to previous generations, enabling faster data transfer and better performance for memory-intensive applications like virtualization and data processing.
What expansion options are available in this 1U chassis?
The chassis includes three PCI Express x16 slots for add-in cards such as GPUs or network adapters, one M.2 interface for NVMe storage, and two total expansion bays. These options provide flexibility to customize the system for specific roles, whether adding storage, enhancing networking, or accelerating compute tasks.
Does this server have redundant power supplies?
Yes, the SYS-111E-FWTR comes with two 800W power supplies installed. This redundant configuration ensures continuous operation in case one power supply fails, making it suitable for critical deployments where uptime is essential, such as in data centers or high-availability environments.
What networking capabilities does this barebone offer?
It features three RJ-45 network ports that support both Gigabit Ethernet and 10 Gigabit Ethernet technologies. This dual-speed capability allows for high-speed data transfer and network connectivity, ideal for bandwidth-intensive tasks like server clustering, storage networking, or handling large data flows in enterprise settings.
Is this system suitable for rack mounting and what are its dimensions?
Yes, it is designed as a rack-mountable 1U server with dimensions of 1.70" height, 17.20" width, and 16.90" depth, weighing approximately 10 lb. The 1U height maximizes space efficiency in standard server racks, making it a compact choice for data centers or edge locations where physical space is limited.
