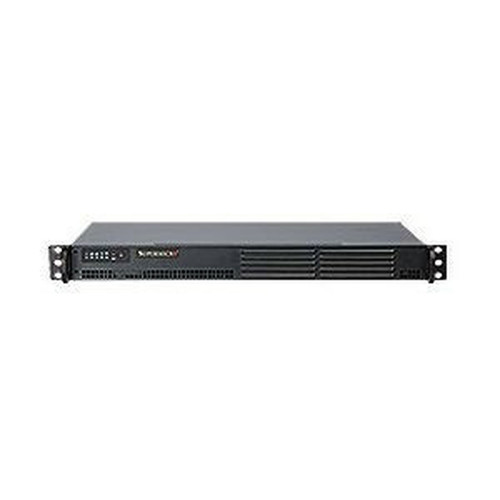

Supermicro SYS-5015A-PHF SuperServer 5015A-PHF Barebone System - 1U Rackmount - Intel Atom - 4GB DDR2 - Gigabit Ethernet - 200W PSU
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
Memory Architecture
Supports up to 4 GB of DDR2 SDRAM across two memory slots, using the DDR2-667/PC2-5300 standard. This configuration provides adequate memory bandwidth for entry-level server tasks and allows for flexible RAM upgrades to match workload demands.
- Two DDR2 memory slots
- DDR2-667/PC2-5300 standard
- Up to 4 GB maximum capacity
Storage & RAID
Features a Serial ATA/300 controller with support for RAID 0 and RAID 1 configurations. The system includes one 3.5" drive bay, enabling the installation of a single SATA hard drive or SSD for primary storage, with RAID capabilities enhancing data redundancy or performance.
- SATA/300 interface
- RAID 0 and RAID 1 support
- One 3.5" internal bay
Network & I/O
Equipped with Gigabit Ethernet for high-speed network connectivity, plus two USB ports for peripheral connections. A single PCI Express x16 expansion slot allows for additional network cards, storage controllers, or other PCIe devices to extend system functionality.
- Gigabit Ethernet port
- Two USB 2.0 ports
- One PCIe x16 slot
Key Product Advantages
The SuperServer 5015A-PHF combines a compact, rack-optimized design with essential server-grade features, making it an efficient foundation for customized server builds. Its integrated 200W power supply and tool-less chassis design simplify deployment, while the support for RAID and Gigabit Ethernet ensures reliable storage and network performance.
Space-Efficient 1U Design
The 1U form factor maximizes rack density, allowing multiple units to be deployed in limited space. The chassis includes a 1U black enclosure with standard mounting points, facilitating seamless integration into existing rack infrastructure.
- Standard 19-inch rack width
- 1.70" height (43.18 mm)
- Tool-less entry for serviceability
Flexible Expansion Options
With one PCIe x16 slot and two DDR2 memory slots, the system supports hardware upgrades to adapt to evolving requirements. This flexibility lets administrators tailor the server for specific applications, from network routing to light file serving.
- PCIe x16 for add-in cards
- Two memory slots for RAM upgrades
- Single 3.5" bay for storage
Reliable Power & Cooling
The included 200W power supply supports 110V/220V input voltages, providing stable power in diverse electrical environments. The 1U chassis is engineered for adequate airflow to maintain component temperatures during continuous operation.
- 200W power supply included
- 110V/220V auto-ranging input
- Optimized 1U thermal design
Deployment / Use Cases
This barebone system is ideal for organizations needing a compact, customizable server platform for lightweight IT infrastructure. Its Intel Atom compatibility and efficient design make it suitable for roles where low power consumption and small physical footprint are critical.
Common deployments include network appliance servers for firewall, VPN, or routing duties; light-duty file or print servers in small offices; and dedicated application hosts for monitoring, logging, or backup management. The system's RAID support and Gigabit Ethernet ensure data integrity and network performance for these tasks.
Network Appliance Server
Deploy as a firewall, VPN concentrator, or network monitoring server. The Gigabit Ethernet and PCIe slot allow for additional network interfaces or accelerator cards, while the compact 1U size conserves rack space in network closets or data centers.
Light-Duty Storage Server
Use with a SATA hard drive or SSD for basic file sharing, print serving, or local backup storage. RAID 1 support mirrors data across two drives if using a compatible controller, adding redundancy for critical files.
Physical Profile
The SuperServer 5015A-PHF features a black 1U rackmount chassis with dimensions of 1.70" (43.18 mm) height, 17.20" (436.88 mm) width, and 9.80" (248.92 mm) depth. This compact size fits standard 19-inch racks, and the black finish provides a professional, cohesive appearance in multi-unit installations. The chassis includes mounting hardware for secure rack attachment and is designed for straightforward front and rear access to ports and drives.
- Width
- 17.20" (436.88 mm)
- Depth
- 9.80" (248.92 mm)
- Height
- 1U
What's in the Box
The system ships as a complete barebone kit, including all necessary components to build a functional server chassis. This comprehensive package ensures you have the core hardware ready for memory, storage, and expansion card installation.
Highlights
- 1U rackmount barebone system for space-efficient server deployments
- Supports Intel Atom processors for low-power, efficient computing
- Up to 4 GB DDR2 SDRAM across two memory slots
- Serial ATA/300 controller with RAID 0 and RAID 1 support
- Gigabit Ethernet for high-speed network connectivity
- 200W power supply with 110V/220V auto-ranging input
- Includes one PCI Express x16 expansion slot for add-in cards
- Black chassis with standard 19-inch rack mounting
- Package includes motherboard, chassis, cables, and power supply
- Backed by a 3-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | SYS-5015A-PHF |
| Brand Name | Supermicro |
| Product Line | SuperServer |
| Product Model | 5015A-PHF |
| Product Name | SuperServer 5015A-PHF Barebone System |
| Product Type | Server Barebone System |
| Processor | |
| Processor Supported | Atom |
| Chipset | |
| Chipset Manufacturer | Intel |
| Memory | |
| Maximum Memory Supported | 4 GB |
| Memory Technology | DDR2 SDRAM |
| Memory Standard | DDR2-667/PC2-5300 |
| Total Number of Memory Slots | 2 |
| Controllers | |
| Controller Type | Serial ATA/300 |
| RAID Supported | Yes |
| RAID Levels | 0, 1 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 1 |
| Number of 3.5" Bays | 1 |
| Total Number of Expansion Slots | 1 |
| Number of PCI Express x16 Slots | 1 |
| Interfaces/Ports | |
| Total Number of USB Ports | 2 |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 110 V AC,220 V AC |
| Number of Power Supplies Installed | 1 |
| Maximum Power Supply Wattage | 200 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Height | 1.70" (43.18 mm) |
| Width | 17.20" (436.88 mm) |
| Depth | 9.80" (248.92 mm) |
| Miscellaneous | |
| Package Contents | SuperServer 5015A-PHF Barebone System 1 x Super X7SPA-HF Motherboard 1 x 1U Black Chassis 1 x 35CM, SATA CABLE, PB FREE 1 x 200W,1U W/ STANDARD HARNESS OUTPUT LC 1 x US power cord 16AWG 6ft, PBF (default for high watt) 1 x FRONT CABLE 16PIN TO 16PIN 32.5CM,PBF |
| Environmentally Friendly | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
FAQ
What processors are compatible with the SuperServer 5015A-PHF?
The SuperServer 5015A-PHF supports Intel Atom processors. This platform is designed for energy-efficient computing, making it suitable for lightweight server applications where low power consumption and compact size are priorities. The system includes an Intel chipset to ensure compatibility and stable operation with Atom CPUs.
How much memory can this barebone system support?
This system supports a maximum of 4 GB of DDR2 SDRAM, using the DDR2-667/PC2-5300 memory standard. It has two memory slots, allowing for flexible RAM configurations such as 2 GB per slot or a single 4 GB module. DDR2 memory provides adequate bandwidth for entry-level server tasks and general-purpose computing.
What storage interfaces and RAID levels are available?
The SuperServer 5015A-PHF features a Serial ATA/300 controller, which supports SATA hard drives or SSDs. It includes RAID support for levels 0 and 1, enabling striping for performance or mirroring for data redundancy. The system has one internal 3.5" drive bay for installing a single SATA storage device.
What expansion slots and connectivity options does it offer?
This barebone system includes one PCI Express x16 expansion slot for adding network cards, storage controllers, or other PCIe devices. For connectivity, it provides Gigabit Ethernet for network access and two USB ports for peripherals. These options allow for customization to meet specific application needs, such as adding extra network interfaces or connecting external devices.
What are the physical dimensions and rack compatibility?
The SuperServer 5015A-PHF has a 1U rackmount form factor, with dimensions of 1.70" (43.18 mm) height, 17.20" (436.88 mm) width, and 9.80" (248.92 mm) depth. It is designed to fit standard 19-inch server racks, and its black chassis ensures a professional appearance in multi-unit installations. The compact size maximizes rack space efficiency.
What is included in the package, and what warranty applies?
The package includes the SuperServer 5015A-PHF barebone system, Super X7SPA-HF motherboard, 1U black chassis, SATA cable, 200W power supply, US power cord, and front panel cable. This comprehensive kit provides all core components needed to build a server. The system is backed by a 3-year limited warranty from Supermicro, covering defects in materials and workmanship.
