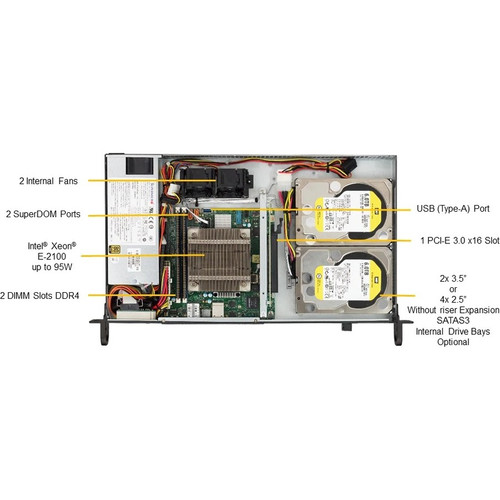

Supermicro SYS-5019C-FL SuperServer 5019C-FL Barebone System - 1U Rack-mountable - Intel C242 - LGA-1151 - 64GB DDR4
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This barebone server leverages the Intel C242 chipset to deliver enterprise-grade features including support for 64-bit processing, hardware RAID, and robust I/O capabilities. The platform accommodates a single processor in the Socket H4 LGA-1151 interface, compatible with a range of Intel Xeon and Core-series CPUs to match workload requirements.
Memory architecture utilizes two DDR4-2666/PC4-21300 DIMM slots, enabling high-speed data access with improved power efficiency. Storage connectivity is handled by a Serial ATA/600 controller supporting four drives, with RAID functionality for data redundancy or performance striping. Network communication is delivered through integrated Gigabit Ethernet, while expansion flexibility is provided by two slots including a PCIe x16 slot for add-in cards.
Relevant factors for this section include Number of Processors Supported, Processor Socket, Processor Supported, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The SuperServer 5019C-FL combines compact 1U rack design with enterprise-ready features, offering a balanced foundation for custom server builds. Its integrated 200W 80Plus Gold power supply ensures energy-efficient operation, while the included cooling system with dual 40mm fans maintains optimal thermal management in dense deployments.
High-Density Ready
The 1U form factor maximizes rack space utilization, allowing multiple units to be deployed in standard server cabinets without sacrificing essential connectivity or expansion options.
- 1U rack height (1.70")
- Standard 19" rack width
- Front-accessible I/O and drive bays
Enterprise Storage Foundation
Four SATA/600 ports with RAID support provide a solid storage foundation for applications requiring multiple drives, whether for capacity, performance, or redundancy configurations.
- Serial ATA/600 interface
- Hardware RAID capable
- Supports multiple drive arrays
Expansion Flexibility
Two expansion slots including one PCIe x16 slot enable the addition of network cards, storage controllers, or other specialized hardware to extend system capabilities.
- PCI Express x16 slot
- Additional expansion slot
- Standard bracket compatibility
Deployment / Use Cases
This barebone system serves as an ideal platform for lightweight server applications where space efficiency and customization are priorities. Its compact 1U design makes it suitable for edge computing deployments, branch office infrastructure, or as a dedicated host for network services.
Common implementations include web hosting servers, network storage nodes, virtualization hosts for small-scale environments, and dedicated application servers. The platform's support for Intel Xeon processors enables it to handle more demanding workloads, while Core i3 or Pentium configurations provide cost-effective options for less intensive applications.
Edge Computing Platform
Deploy at remote locations or branch offices where physical space is limited but reliable server functionality is required for local applications or caching.
Network Infrastructure Server
Host DNS, DHCP, firewall, or other network services in a compact form factor that integrates easily into existing rack infrastructure.
Physical Profile
The black chassis measures 1.70" (43.18 mm) in height, 17.20" (436.88 mm) in width, and 9.80" (248.92 mm) in depth, conforming to standard 1U rack dimensions. With an approximate weight of 8 lb (3628.74 g), the system is manageable for installation while providing sturdy construction for data center environments. The design includes proper ventilation and component access for maintenance, with front-panel connectivity for convenient peripheral attachment.
- Width
- 17.20" (436.88 mm)
- Depth
- 9.80" (248.92 mm)
- Height
- 1U
- Weight
- 8 lb (3628.74 g)
What's in the Box
This barebone system ships with all essential components for assembly, including the motherboard, power supply, cooling system, and necessary cables.
Highlights
- 1U rack-mountable chassis for space-efficient data center deployment
- Intel C242 chipset with LGA-1151 socket supporting Xeon, Core i3, Celeron, and Pentium processors
- Supports up to 64GB DDR4-2666 memory across two DIMM slots
- Four SATA/600 interfaces with hardware RAID support for storage flexibility
- Integrated Gigabit Ethernet for high-speed network connectivity
- 200W 80Plus Gold power supply for energy-efficient operation
- Four USB ports for peripheral connectivity without system shutdown
- Two expansion slots including one PCI Express x16 slot
- RoHS compliant construction with environmentally friendly design
- Includes complete assembly components: motherboard, PSU, cooling, and cables
Specifications
| Specifications | |
|---|---|
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | SYS-5019C-FL |
| Brand Name | Supermicro |
| Product Line | SuperServer |
| Product Model | 5019C-FL |
| Product Name | SuperServer 5019C-FL (Black) |
| Product Type | Server Barebone System |
| Processor | |
| Number of Processors Supported | 1 |
| Processor Socket | Socket H4 LGA-1151 |
| Processor Supported | Xeon,Core i3,Celeron,Pentium |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C242 |
| Memory | |
| Maximum Memory Supported | 64 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-2666/PC4-21300 |
| Total Number of Memory Slots | 2 |
| Controllers | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| I/O Expansions | |
| Total Number of Expansion Slots | 2 |
| Number of PCI Express x16 Slots | 1 |
| Interfaces/Ports | |
| Total Number of USB Ports | 4 |
| Number of SATA Interfaces | 4 |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Number of Power Supplies Installed | 1 |
| Maximum Power Supply Wattage | 200 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Height | 1.70" (43.18 mm) |
| Width | 17.20" (436.88 mm) |
| Depth | 9.80" (248.92 mm) |
| Weight (Approximate) | 8 lb (3628.74 g) |
| Miscellaneous | |
| Package Contents | 1 x Super X11SCL-iF Motherboard 1 x SATA,INT,ROUND,ST-ST,55CM,30AWG 2 x 40x40x28 mm, 22.5K RPM, SC813MF Middle Cooling Fan,RoHS/REACH 1 x Optional fan tray for one 40x28mm fan in SC813T/SC813LT-single PWS (Fan tray only) 1 x 5019C-L/FL Quick Reference Guide 1 x RSC-RR1U-E16 with PIC-E x16 output 1 x 1U Passive Enhanced Performance CPU Heat Sink for Intel Socket H Series Processors 1 x 1U 200W Multi-output 80Plus Gold PWS 1 x CBL,FRONT CNTL,16 TO 16 PIN,Ribbon,50CM 1 x US power cord 18AWG 6ft, PBF (default for low watt) 1 x Front control board dual color for SC815,SC813M (C) 1 x 1U I/O shield for X9/X10 STD Server I/O use in SC510, SC505, SC504 with EMI Gasket,RoHS/REACH,PBF 1 x SC510 card retainer |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 1 Year |
FAQ
What processors are compatible with this barebone system?
The SuperServer 5019C-FL supports Intel processors using the LGA-1151 socket, including Xeon, Core i3, Celeron, and Pentium models. This compatibility range allows configuration from entry-level to enterprise-grade compute performance based on specific workload requirements and budget considerations.
How much memory can this system support?
This barebone platform accommodates up to 64GB of DDR4 memory across two DIMM slots. It utilizes DDR4-2666/PC4-21300 memory technology, providing improved bandwidth and power efficiency compared to previous generations while maintaining compatibility with standard server memory modules.
What storage connectivity options are available?
The system includes four Serial ATA/600 interfaces for connecting storage drives, with hardware RAID support for configuring redundant arrays or performance-optimized storage volumes. This provides a solid foundation for both capacity-focused and performance-oriented storage implementations.
What expansion capabilities does this 1U chassis provide?
Two expansion slots are available, including one PCI Express x16 slot suitable for add-in cards such as network adapters, storage controllers, or specialized compute accelerators. The second slot provides additional flexibility for complementary expansion cards to extend system functionality.
What power supply is included with this barebone system?
A 200W multi-output 80Plus Gold certified power supply is integrated, providing efficient power delivery with 80Plus Gold efficiency ratings. The unit supports both 120V and 230V input voltages, making it suitable for deployment in various geographical regions with different electrical standards.
What is included in the package for system assembly?
The complete package contains all essential components: Super X11SCL-iF motherboard, 200W 80Plus Gold power supply, passive CPU heatsink, dual cooling fans, SATA cable, front control board, I/O shield, US power cord, quick reference guide, and necessary mounting hardware for full system assembly without requiring additional core components.
