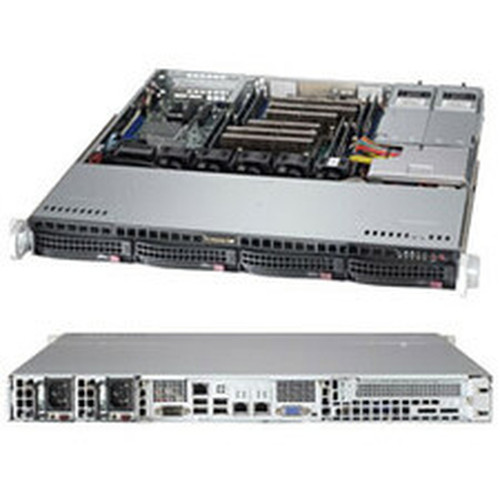

Supermicro SYS-6017R-M7RF SuperServer Barebone - 1U Rackmount - Dual Socket R LGA-2011 - Intel C602J - 512GB DDR3 - 4 x 3.5" Bays - 2 x 400W PSU
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This barebone server features comprehensive storage flexibility with four 3.5" hot-swap drive bays, supporting both SATA and SAS interfaces. The integrated storage controller provides hardware RAID 0, 1, 5, and 10 functionality for data protection and performance optimization.
Network connectivity includes Gigabit Ethernet and Fast Ethernet interfaces for versatile deployment in mixed-speed environments. Expansion capabilities include one PCI Express x8 slot for additional network, storage, or accelerator cards. The system provides seven USB ports for peripheral connectivity and management interfaces.
Relevant factors for this section include Number of Processors Supported, Processor Socket, Processor Supported, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The SYS-6017R-M7RF combines enterprise server features with the space efficiency of a 1U rackmount design. Dual redundant 400W power supplies ensure continuous operation during power events, while the hot-swappable drive bays enable maintenance without system downtime.
Enterprise Reliability
Hardware RAID support protects critical data, while redundant power supplies maintain uptime during power supply failures.
- RAID 0, 1, 5, 10 support
- Dual 400W PSUs
- Hot-swap drive capability
Management & Serviceability
The 1U form factor provides convenient front access to drives and status indicators, while standard rack mounting simplifies deployment in data center environments.
- Front-accessible drive bays
- Standard 19" rack mounting
- Status LEDs for quick diagnostics
Deployment / Use Cases
This SuperServer barebone system serves as an ideal foundation for virtualization hosts, where dual processor support and substantial memory capacity enable efficient consolidation of multiple virtual machines. The hardware RAID capabilities make it suitable for file and application servers requiring data protection.
The compact 1U design maximizes rack density in colocation and data center environments, while the redundant power supplies ensure reliability for business-critical applications. The system also supports database servers, web hosting platforms, and network infrastructure applications where balanced compute, storage, and connectivity are essential.
Virtualization Host
Dual processor sockets and 512GB memory support enable efficient VM consolidation for private cloud and virtual desktop infrastructure deployments.
Storage Server
Four 3.5" bays with hardware RAID support provide protected storage for file sharing, backups, and archival applications.
Physical Profile
The server occupies a single rack unit (1U) with dimensions of 1.70" (43.18 mm) height, 17.20" (436.88 mm) width, and 19.80" (502.92 mm) depth. The black chassis features standard 19" rack mounting ears for secure installation in server racks and cabinets. The compact footprint optimizes rack space utilization while providing adequate airflow for cooling dual processors and associated components.
- Width
- 17.20" (436.88 mm)
- Depth
- 19.80" (502.92 mm)
- Height
- 1U
What's in the Box
The system ships as a complete barebone package including all necessary components for server assembly and deployment.
Highlights
- Dual Socket R LGA-2011 supports two Intel Xeon processors for high-performance computing
- 512GB maximum DDR3-1866 memory capacity across eight DIMM slots
- Four 3.5" hot-swap drive bays with SATA and SAS interface support
- Hardware RAID 0, 1, 5, 10 for data protection and performance optimization
- Dual 400W redundant power supplies ensure continuous operation
- 1U rackmount form factor maximizes data center rack density
- Intel C602J chipset provides enterprise I/O and management capabilities
- Gigabit Ethernet and Fast Ethernet network connectivity
- Seven USB ports for peripheral and management device connections
- RoHS compliant construction with three-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | SYS-6017R-M7RF |
| Brand Name | Supermicro |
| Product Line | SuperServer |
| Product Model | 6017R-M7RF |
| Product Name | SuperServer 6017R-M7RF (Black) |
| Product Type | Server Barebone System |
| Processor | |
| Number of Processors Supported | 2 |
| Processor Socket | Socket R LGA-2011 |
| Processor Supported | Xeon |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C602J |
| Memory | |
| Maximum Memory Supported | 512 GB |
| Memory Technology | DDR3 SDRAM |
| Memory Standard | DDR3-1866/PC3-15000 |
| Total Number of Memory Slots | 8 |
| Controllers | |
| Controller Type | Serial ATA/300,Serial ATA/600,6Gb/s SAS |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 10 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet,Fast Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 4 |
| Number of 3.5" Bays | 4 |
| Total Number of Expansion Slots | 1 |
| Number of PCI Express x8 Slots | 1 |
| Interfaces/Ports | |
| Total Number of USB Ports | 7 |
| Network (RJ-45) | Yes |
| Number of SATA Interfaces | 6 |
| Number of SAS Interfaces | 8 |
| Power Description | |
| Input Voltage | 110 V AC,220 V AC |
| Number of Power Supplies Installed | 2 |
| Maximum Power Supply Wattage | 400 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Height | 1.70" (43.18 mm) |
| Width | 17.20" (436.88 mm) |
| Depth | 19.80" (502.92 mm) |
| Miscellaneous | |
| Package Contents | SuperServer 6017R-M7RF (Black) 1 x Super X9DRL-7F Motherboard 1 x 1U Chassis 1 x BPN-SAS-815TQ-O-P 1 x 8 pin to 8 pin ribbon SGPIO cable with tube , 40cm, PBF 1 x SET OF 4 SATA 56/45.5/35/23CM ROUND S-RA. 26AWG 1 x RSC-RR1U-E8 (Rev 4.00) (Riser Card) 2 x 1U Passive Custom CPU Heat Sink for X9DRL Motherboard,RoHS,PBF 2 x 1U 400W Redundant Short Depth Power Supply |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
FAQ
What processors are compatible with this SuperServer barebone system?
The system supports dual Intel Xeon processors using Socket R LGA-2011. This socket type accommodates E5-2600 and E5-2600 v2 series Xeon processors, providing options for various core counts and performance levels. The platform supports 64-bit processing and benefits from Intel's enterprise-grade features including advanced reliability and management capabilities.
How much memory can this server support and what type does it use?
This SuperServer supports up to 512GB of DDR3 SDRAM memory across eight DIMM slots. The memory standard is DDR3-1866/PC3-15000, providing balanced performance for server workloads. The eight memory slots enable flexible configurations with various DIMM sizes to optimize for capacity, performance, or cost requirements in enterprise environments.
What storage configuration options does this barebone system provide?
The system includes four 3.5" hot-swap drive bays that support both SATA and SAS interfaces. Storage is managed through integrated controllers supporting Serial ATA/300, Serial ATA/600, and 6Gb/s SAS. Hardware RAID 0, 1, 5, and 10 are supported for data protection and performance. The package includes necessary cables and a backplane for drive connectivity.
What power supply configuration does this server use?
The system includes two 400W power supplies configured for redundancy. This 1+1 redundant configuration ensures continuous operation if one power supply fails. The power supplies support auto-ranging input voltage from 110V to 220V AC, making them suitable for deployment in various geographic regions without requiring voltage-specific components.
What expansion capabilities does this 1U server offer?
The system provides one PCI Express x8 expansion slot via an included riser card. This enables addition of network interface cards, storage controllers, or other PCIe devices. The server also includes seven USB ports for peripheral connectivity. The 1U form factor balances expansion capability with rack density considerations typical in data center deployments.
What is included in the package and what additional components are needed?
The barebone package includes the chassis, motherboard, backplane, riser card, cables, heatsinks, and redundant power supplies. To complete the system, you will need to add processors, memory modules, storage drives, and an operating system. The comprehensive package ensures all mechanical and foundational electronic components are present for server assembly and deployment.
