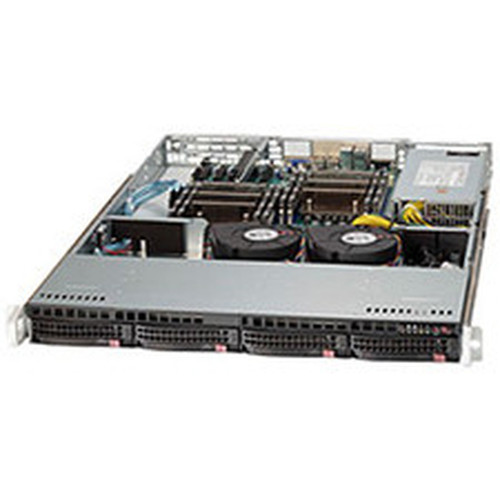

Supermicro SYS-6017R-TDF+ SuperServer 6017R-TDF Barebone System - 1U Rackmount - Dual Socket R LGA-2011 - Intel C602 - 256GB DDR3
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The technical architecture of the SuperServer 6017R-TDF+ centers on the Intel C602 chipset, which provides the foundation for dual Socket R LGA-2011 processors. This platform supports Intel Xeon CPUs with 64-bit processing, enabling high-throughput computing for enterprise applications. Memory scalability is addressed with eight DDR3 SDRAM slots that accommodate up to 256 GB of DDR3-1600/PC3-12800 memory, minimizing processor idle time and enhancing multitasking efficiency.
Storage flexibility is delivered through four 3.5" drive bays and four SATA interfaces, managed by a Serial ATA/600 controller with hardware RAID support for levels 0, 1, 5, and 10. This ensures fast data transfer and higher throughput for demanding workloads. Expansion capabilities include one PCI Express x16 slot via a riser card, while connectivity is handled by nine USB ports and dual Ethernet interfaces (Fast Ethernet and Gigabit Ethernet) for versatile network integration.
Key Product Advantages
High-Density Rack Design
The 1U rack-mountable form factor maximizes data center space utilization while providing easy front-access to drives and components. Quick-release mounting rails simplify installation and maintenance in standard 19" racks.
- 1U height (1.70")
- Quick-release rail kit included
- Optimized for high-density deployments
Enterprise-Grade Storage & RAID
Integrated Serial ATA/600 controllers with hardware RAID 0, 1, 5, and 10 support deliver reliable storage performance and data protection. The four 3.5" bays accommodate high-capacity drives for scalable storage solutions.
- Hardware RAID support
- Four SATA interfaces
- Ideal for database and file servers
Robust Connectivity & Management
Nine USB ports enable convenient peripheral connections without system shutdown, while dual Ethernet ports (Fast and Gigabit) provide flexible network options. The Matrox graphics controller ensures reliable base-level display output for management tasks.
- Hot-swap USB convenience
- Dual Ethernet for network flexibility
- Matrox graphics for management
Deployment / Use Cases
The SuperServer 6017R-TDF+ is designed for IT environments where rack space is at a premium but performance cannot be compromised. Its dual-processor capability and memory scalability make it suitable for virtualization hosts, where multiple virtual machines require dedicated CPU and RAM resources. The hardware RAID support and four drive bays also position it well for small to medium business file servers, backup appliances, or database servers that need balanced storage performance and capacity.
In educational or lab settings, the system's compact 1U design and robust connectivity—including nine USB ports and dual Ethernet—support shared computing resources, research applications, or training environments. For remote offices or branch locations, the 480W Platinum power supply with 110-220V AC input ensures energy-efficient operation, while the quick-release rails facilitate easy servicing by on-site staff.
Physical Profile
This server barebone system adopts a standard 1U rack-mountable form factor with a black finish, measuring 1.70" (43.18 mm) in height, 17.20" (436.88 mm) in width, and 25.60" (650.24 mm) in depth. The compact design optimizes rack space while maintaining adequate airflow for cooling. Weighing approximately 36.16 lb (16.4 kg), the chassis is constructed for durability in data center environments. Included quick-release mounting rails simplify installation into standard 19" racks, and the chassis features front-accessible drive bays for convenient maintenance.
- Width
- 17.20" (436.88 mm)
- Depth
- 25.60" (650.24 mm)
- Height
- 1U
- Weight
- 36.16 lb (16400 g)
What's in the Box
This barebone system includes all necessary components to build a functional server, excluding processors, memory, and storage drives. The package contains:
Highlights
- Dual Socket R LGA-2011 support for Intel Xeon processors with 64-bit computing
- Intel C602 chipset providing enterprise-grade platform stability and performance
- Up to 256 GB DDR3 SDRAM across eight slots for enhanced multitasking
- Four 3.5" drive bays with Serial ATA/600 controllers and hardware RAID 0/1/5/10
- 1U rack-mountable form factor with quick-release rails for space-efficient deployment
- 480W Platinum power supply with 110-220V AC input for energy-efficient operation
- Nine USB ports for convenient peripheral connectivity without system shutdown
- Dual Ethernet (Fast and Gigabit) for flexible network integration
- Matrox graphics controller ensuring reliable base-level display output
- Three-year limited warranty for long-term reliability assurance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | SYS-6017R-TDF+ |
| Brand Name | Supermicro |
| Product Line | SuperServer |
| Product Model | 6017R-TDF |
| Product Name | SuperServer 6017R-TDF |
| Product Type | Server Barebone System |
| Processor | |
| Number of Processors Supported | 2 |
| Processor Socket | Socket R LGA-2011 |
| Processor Supported | Xeon |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C602 |
| Memory | |
| Maximum Memory Supported | 256 GB |
| Memory Technology | DDR3 SDRAM |
| Memory Standard | DDR3-1600/PC3-12800 |
| Total Number of Memory Slots | 8 |
| Controllers | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 10 |
| Display & Graphics | |
| Graphics Controller Manufacturer | Matrox |
| Network & Communication | |
| Ethernet Technology | Fast Ethernet,Gigabit Ethernet |
| I/O Expansions | |
| Number of 3.5" Bays | 4 |
| Total Number of Expansion Slots | 1 |
| Number of PCI Express x16 Slots | 1 |
| Interfaces/Ports | |
| Total Number of USB Ports | 9 |
| Network (RJ-45) | Yes |
| Number of SATA Interfaces | 4 |
| Power Description | |
| Input Voltage | 110 V AC,220 V AC |
| Number of Power Supplies Installed | 1 |
| Maximum Power Supply Wattage | 480 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Height | 1.70" (43.18 mm) |
| Width | 17.20" (436.88 mm) |
| Depth | 25.60" (650.24 mm) |
| Weight (Approximate) | 36.16 lb (16400 g) |
| Miscellaneous | |
| Package Contents | SuperServer 6017R-TDF 1 x Super X9DRD-iF Motherboard 1 x 1U Chassis 1 x 815 SAS BACKPLANE W/O AMI 9071 -O-P 1 x SATA SET OF 4-70/59/48/38CM ROUND S-RA, PBF 1 x Driver CD for X9 Series 1 x RSC-RR1U-E16 with PIC-E x16 output Riser Card 2 x 1U Passive CPU Heat Sink for X9 Generation Motherboards w/ Narrow ILM 1 x 440W/480W Platinum Power Supply 1 x Black DVD dummy cover for SC813, 813M, 815, PBF-RoHS 2 x 97Lx94Wx37H mm 5K RPM SC813 Rev. M Chassis Middle Cooling Blower 4 x Black 3.5" HDD Tray 1 x Outer Rail, Quick-Release Type Mounting Rails 1 x Inner Rail, Front, Quick-Release Type Mounting Rails |
| Environmentally Friendly | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
FAQ
What processors are compatible with this server barebone system?
The SuperServer 6017R-TDF+ supports dual Socket R LGA-2011 Intel Xeon processors. This platform is designed for 64-bit computing and accommodates Xeon CPUs that match the LGA-2011 socket specification, providing high-performance processing for enterprise workloads such as virtualization, database management, and compute-intensive applications.
How much memory can this system support and what type is required?
This barebone system supports up to 256 GB of DDR3 SDRAM across eight memory slots. It uses DDR3-1600/PC3-12800 memory modules. The eight slots allow for flexible memory configurations, enabling IT teams to scale capacity based on application demands, which is particularly beneficial for virtualization environments or memory-intensive tasks.
What storage options are available with this server?
The system includes four 3.5" drive bays and four SATA interfaces, managed by a Serial ATA/600 controller. It supports hardware RAID levels 0, 1, 5, and 10, providing options for performance, redundancy, or a balance of both. This setup is suitable for installing high-capacity hard drives or SSDs to create scalable storage solutions for file servers, backups, or database applications.
What expansion capabilities does this server offer?
Expansion is provided through one PCI Express x16 slot, accessible via the included RSC-RR1U-E16 riser card. This slot can accommodate add-in cards such as network adapters, storage controllers, or GPUs for specialized workloads. The single slot is typical for 1U servers where space is limited, focusing on essential expansion needs in high-density deployments.
What are the power supply specifications and input requirements?
The system includes a 480W Platinum efficiency power supply that operates on 110-220V AC input. This power supply is designed for energy-efficient performance in data center environments, reducing operational costs. The Platinum rating indicates high efficiency under typical loads, and the dual-voltage input ensures compatibility with standard power infrastructures in North America and other regions.
What is included in the package for this barebone system?
The package contains all core components needed to assemble a server, excluding CPUs, memory, and drives. Key items include the SuperServer 6017R-TDF chassis, Super X9DRD-iF motherboard, 815 SAS backplane, SATA cable set, driver CD, PCI-E riser card, two CPU heat sinks, 480W Platinum power supply, cooling blowers, four HDD trays, and quick-release mounting rails. This comprehensive set allows for a complete build-out with added processors, RAM, and storage.
