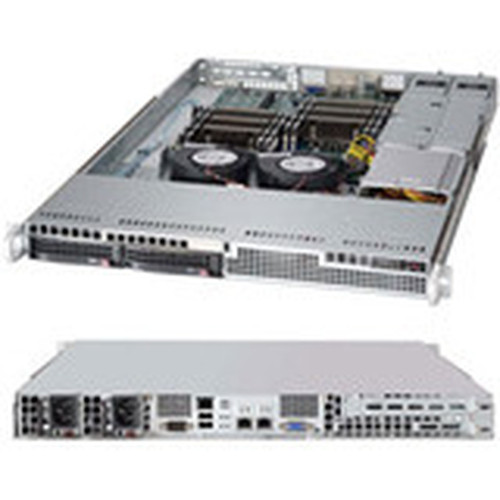

Supermicro SYS-6017R-TDLRF SuperServer 6017R-TDLRF Barebone System - 1U Rackmount - Dual LGA-2011 - Intel C602 - 256GB DDR3
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
Built around the Intel C602 chipset, the 6017R-TDLRF supports dual LGA-2011 sockets for Intel Xeon processors, enabling 64-bit computing and advanced enterprise features. Memory architecture includes eight DDR3 slots supporting up to 256GB of DDR3-1600/PC3-12800 SDRAM, providing substantial bandwidth for memory-intensive applications. Storage is managed via a Serial ATA/600 controller with hardware RAID 0 and 1 support, connected to two internal 3.5" drive bays for high-speed data access and redundancy.
Network connectivity integrates both Fast Ethernet and Gigabit Ethernet ports, ensuring flexible network integration. Expansion is facilitated through a single PCI Express x16 slot, accessible via an included riser card, for adding specialized adapters like network cards or storage controllers. The system operates on a dual 500W redundant power supply configuration with 110-220V AC input, offering power efficiency and failover protection in critical environments.
Key Product Advantages
This barebone system excels in delivering a balance of performance, density, and reliability for rack-based server deployments. Its integrated design reduces assembly time and ensures component compatibility, while the dual processor and memory support cater to demanding computational tasks.
High-Density Compute
The 1U form factor supports dual LGA-2011 Xeon processors and 256GB of DDR3 memory, offering substantial processing power in a minimal rack footprint for data centers and server rooms.
- Dual socket scalability
- Eight memory slots
- Compact 1U chassis
Integrated Reliability
Includes dual 500W redundant power supplies and hardware RAID support, enhancing system uptime and data protection for business-critical applications without requiring additional purchases.
- Redundant power input
- SATA/600 RAID controller
- Pre-tested components
Deployment-Ready Foundation
Comes with quick-release rails, motherboard, heatsinks, and necessary cables, streamlining installation and reducing the need for sourcing separate parts for a complete server build.
- Includes mounting rails
- Pre-installed motherboard
- Passive cooling solution
Deployment / Use Cases
The SuperServer 6017R-TDLRF is ideal for environments where rack space is at a premium but performance cannot be compromised. Its barebone configuration allows customization for specific roles, making it a versatile choice for IT infrastructure projects.
In virtualized environments, it can host multiple virtual machines, leveraging its dual-processor support and high memory capacity. For storage applications, the RAID-enabled SATA/600 controller and dual drive bays support fast, reliable storage pools for file servers or backup targets. Network services like web hosting, DNS, or firewall duties benefit from the Gigabit Ethernet connectivity and expansion slot for additional network interfaces.
Virtualization Host
Deploy as a hypervisor platform for VMware, Hyper-V, or KVM, utilizing dual CPUs and up to 256GB RAM to run numerous virtual machines efficiently in a 1U space.
Enterprise Storage Node
Configure with high-capacity drives and RAID for a dedicated storage server, offering fast data access and redundancy for network-attached storage or backup systems.
Physical Profile
The system features a standard 1U rack-mountable chassis with a black finish, measuring 1.70 inches in height, 17.20 inches in width, and 25.60 inches in depth. This compact design fits into standard 19-inch server racks, and the included quick-release rails facilitate easy installation and maintenance. The all-metal construction ensures durability, while the passive CPU heatsinks and optimized airflow support thermal management in dense rack configurations.
- Width
- 17.20" (436.88 mm)
- Depth
- 25.60" (650.24 mm)
- Height
- 1U
What's in the Box
This barebone system includes all necessary components to build a functional server, minimizing additional procurement needs.
Highlights
- Supports dual Intel Xeon processors on LGA-2011 sockets for scalable 64-bit performance.
- Maximum memory capacity of 256GB across eight DDR3-1600/PC3-12800 slots.
- 1U rack-mountable chassis with quick-release rails for high-density deployment.
- Serial ATA/600 controller with hardware RAID 0 and 1 support for data reliability.
- Dual 500W redundant power supplies with 110-220V AC input for power efficiency.
- Includes Super X9DRD-LF motherboard, heatsinks, and necessary cables for easy assembly.
- Fast Ethernet and Gigabit Ethernet ports provide flexible network connectivity.
- Four USB ports enable connectivity for peripherals and management devices.
- RoHS compliant and backed by a 3-year limited warranty for peace of mind.
- Two internal 3.5" drive bays and a PCI Express x16 slot for storage and expansion.
Specifications
| Specifications | |
|---|---|
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | SYS-6017R-TDLRF |
| Brand Name | Supermicro |
| Product Line | SuperServer |
| Product Model | 6017R-TDLRF |
| Product Name | SuperServer 6017R-TDLRF Barebone System |
| Product Type | Server Barebone System |
| Processor | |
| Number of Processors Supported | 2 |
| Processor Socket | Socket R LGA-2011 |
| Processor Supported | Xeon |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C602 |
| Memory | |
| Maximum Memory Supported | 256 GB |
| Memory Technology | DDR3 SDRAM |
| Memory Standard | DDR3-1600/PC3-12800 |
| Total Number of Memory Slots | 8 |
| Controllers | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 0, 1 |
| Network & Communication | |
| Ethernet Technology | Fast Ethernet,Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 2 |
| Number of 3.5" Bays | 2 |
| Total Number of Expansion Slots | 1 |
| Number of PCI Express x16 Slots | 1 |
| Interfaces/Ports | |
| Total Number of USB Ports | 4 |
| Network (RJ-45) | Yes |
| Number of SATA Interfaces | 2 |
| Power Description | |
| Input Voltage | 110 V AC,220 V AC |
| Number of Power Supplies Installed | 2 |
| Maximum Power Supply Wattage | 500 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Height | 1.70" (43.18 mm) |
| Width | 17.20" (436.88 mm) |
| Depth | 25.60" (650.24 mm) |
| Miscellaneous | |
| Package Contents | SuperServer 6017R-TDLRF Barebone System 1 x Super X9DRD-LF Motherboard 1 x 1U Chassis 1 x 2x 3.5" hard drive backplane designed for CSE-813LT-R500CB-BULK 2 x 43CM SATA ROUND S-RA PBF 26AWG 2 x 1U Passive CPU Heat Sink for X9 Generation Motherboards w/ Narrow ILM 2 x 500W 1U Redundant PWS W/ 54.5MM Wide 1 x Outer rail, quick-release type 1 x Inner rail, front, quick-release type 1 x RSC-RR1U-E16 with PCI-E x16 output 1 x Riser card bracket for SC813LT |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
FAQ
What processors are compatible with this barebone system?
The SuperServer 6017R-TDLRF supports dual Intel Xeon processors using the Socket R LGA-2011 socket. This platform is designed for 64-bit Xeon CPUs, offering enterprise-grade features like enhanced security and remote management capabilities. Compatibility includes various Xeon E5 family processors, allowing you to select CPUs based on core count, clock speed, and thermal design power to match your performance needs.
How much memory can I install, and what type is required?
This system supports up to 256GB of memory across eight DDR3 slots. It uses DDR3 SDRAM modules with a standard of DDR3-1600/PC3-12800. You can install unbuffered or registered DIMMs depending on the processor and motherboard specifications, providing flexibility for optimizing memory capacity and performance for applications like virtualization or database servers.
What storage options are available with this server?
The barebone includes two internal 3.5" drive bays and a Serial ATA/600 controller that supports hardware RAID levels 0 and 1. This allows you to configure drives for performance striping or mirroring redundancy. You can install SATA hard drives or SSDs, and the system includes necessary cables and a backplane, making it ready for storage expansion without additional hardware purchases.
Does it include power supplies, and are they redundant?
Yes, the system comes with two 500W 1U redundant power supplies installed. These power supplies support input voltages of 110V AC and 220V AC, offering flexibility for different power infrastructures. The redundant configuration ensures that if one power supply fails, the other can continue to power the system, enhancing uptime and reliability for critical server deployments.
What expansion capabilities does it offer?
Expansion is provided through a single PCI Express x16 slot, accessible via an included RSC-RR1U-E16 riser card. This slot allows you to add expansion cards such as network adapters, storage controllers, or GPUs. The system also includes four USB ports and two SATA interfaces, supporting peripheral connectivity and additional storage devices for customized server builds.
Is this system rack-mountable, and what are its dimensions?
Yes, it is a 1U rack-mountable server barebone system. The chassis dimensions are 1.70 inches in height, 17.20 inches in width, and 25.60 inches in depth, designed to fit standard 19-inch server racks. It includes quick-release outer and inner rails for easy installation and maintenance, making it suitable for data centers or server rooms where space optimization is crucial.
