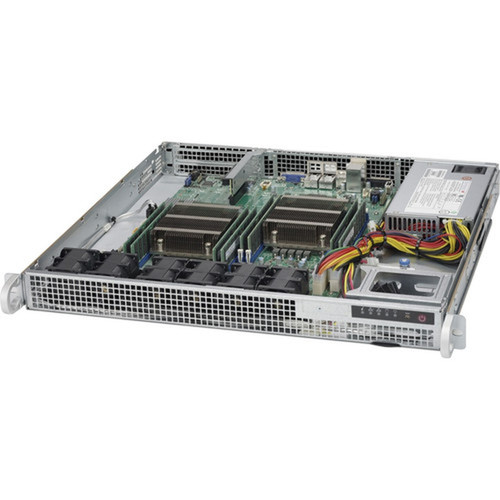

Supermicro SYS-6018R-MD SuperServer Barebone - 1U Rackmount - Dual LGA 2011-v3 - Intel C612 - 512GB DDR4 - 500W Platinum
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This server barebone delivers a robust technical foundation for building a reliable server. The included Super X10DRD-L motherboard features eight DDR4 memory slots supporting up to 512GB of DDR4-2133 ECC memory, providing substantial capacity for memory-intensive applications. Storage connectivity is handled by six Serial ATA/600 ports with hardware RAID support, allowing for flexible storage configurations with high-speed data transfer.
Network connectivity is assured through integrated Gigabit Ethernet, while expansion is provided via a single PCI Express x8 slot for adding network, storage, or other specialty cards. The system is powered by a highly efficient 500W Platinum-level power supply that supports both 120V and 230V AC input, contributing to lower operational costs and improved power reliability.
Relevant factors for this section include Number of Processors Supported, Processor Socket, Processor Supported, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The SuperServer 6018R-MD combines high-density design with enterprise-grade components to deliver a server platform that balances performance, reliability, and manageability. Its integrated design reduces assembly time and ensures component compatibility, providing a streamlined path to deployment.
Dual Processor Capability
Support for two Intel Xeon processors enables significant compute power for multi-threaded applications, virtualization, and high-concurrency workloads, making it suitable for server consolidation.
- LGA 2011-v3 socket
- Intel C612 chipset
- 64-bit architecture
Efficient Thermal Design
The system includes five high-performance counter-rotating fans and passive CPU heatsinks designed for narrow ILM motherboards, ensuring effective cooling within the constrained 1U space for sustained operation.
- 1U passive heatsinks
- 40x40x56mm fans
- Optimized airflow
Comprehensive Package
This barebone system arrives with all necessary chassis components, cabling, brackets, and cooling, reducing the need for additional purchases and simplifying the build process.
- Motherboard included
- Storage brackets
- Power extensions
Deployment / Use Cases
The 6018R-MD is engineered for environments where rack space is at a premium but performance cannot be compromised. Its 1U footprint allows it to fit into standard 19-inch racks alongside other networking and server equipment, making it an excellent choice for colocation facilities, enterprise server rooms, and cloud infrastructure.
Typical deployments include virtualization hosts running hypervisors like VMware ESXi or Microsoft Hyper-V, where its dual-processor support and large memory capacity are advantageous. It also serves well as a dedicated application server for databases, web hosting, or network services, and can be configured as a storage server using the available SATA ports and RAID capabilities.
Virtualization Host
Configure with high-core-count Xeon processors and ample DDR4 memory to create a dense virtualization platform capable of hosting multiple virtual machines.
Network & Infrastructure Server
Utilize the PCIe slot for additional network interfaces or controllers to build firewalls, routers, or network-attached storage solutions.
Physical Profile
Housed in a silver-colored chassis, the SuperServer 6018R-MD measures 1.70 inches (43.18 mm) in height, 17.20 inches (436.88 mm) in width, and 16.90 inches (429.26 mm) in depth, conforming to the standard 1U rackmount profile. This compact design allows for high-density installations, with front-accessible drive bays and rear I/O for easy maintenance and cable management. The chassis includes mounting hardware for both 3.5-inch and 2.5-inch drives, providing flexibility for storage media selection.
- Width
- 17.20" (436.88 mm)
- Depth
- 16.90" (429.26 mm)
- Height
- 1U
What's in the Box
This barebone system ships as a complete kit, ready for component installation. The package includes all essential hardware to assemble a functional server.
Highlights
- Supports dual Intel Xeon processors for high-performance computing tasks
- 1U rackmount form factor maximizes data center density and space efficiency
- Up to 512GB of DDR4-2133 memory across eight slots for large workloads
- Intel C612 chipset provides robust platform features and reliability
- Six SATA/600 ports with hardware RAID support for flexible storage
- 500W Platinum efficiency power supply reduces energy consumption
- Includes comprehensive kit with motherboard, chassis, cooling, and cables
- Gigabit Ethernet and seven USB ports for connectivity and peripheral support
- Designed with counter-rotating fans and passive heatsinks for effective 1U cooling
- Backed by a 3-year limited warranty for peace of mind
Specifications
| Specifications | |
|---|---|
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | SYS-6018R-MD |
| Brand Name | Supermicro |
| Product Line | SuperServer |
| Product Model | 6018R-MD |
| Product Name | SuperServer 6018R-MD (Silver) |
| Product Type | Server Barebone System |
| Processor | |
| Number of Processors Supported | 2 |
| Processor Socket | Socket LGA 2011-v3 |
| Processor Supported | Xeon |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C612 |
| Memory | |
| Maximum Memory Supported | 512 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-2133/PC4-17000 |
| Total Number of Memory Slots | 8 |
| Controllers | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| I/O Expansions | |
| Total Number of Expansion Slots | 1 |
| Number of PCI Express x8 Slots | 1 |
| Interfaces/Ports | |
| Total Number of USB Ports | 7 |
| Number of SATA Interfaces | 6 |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Number of Power Supplies Installed | 1 |
| Maximum Power Supply Wattage | 500 W |
| Physical Characteristics | |
| Color Family | Silver |
| Product Color | Silver |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Height | 1.70" (43.18 mm) |
| Width | 17.20" (436.88 mm) |
| Depth | 16.90" (429.26 mm) |
| Miscellaneous | |
| Package Contents | SuperServer 6018R-MD (Silver) 1 x Super X10DRD-L Motherboard 1 x 1U Chassis 1 x Y split , big 4 pin to two RA SATA power extension 15cm, 18AWG 2 x 81CM 30AWG SATA S-S cable 1 x Optional shorter 1U riser card bracekt for X9DRL-7F/EF 1 x 3.5in fixed HDD tray for SC513,514,515,812L,812U,523,HF,RoHS/REACH 1 x Dual 2.5" fixed HDD bracket for SC514,515,HF,RoHS/REACH 1 x SYS-6018R-MD, QRG,HF,RoHS/REACH 1 x RSC-RR1U-E8 (Rev 4.00) 2 x 1U Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Narrow ILM MB 1 x 1U 500W Multi-output, Platinum level w/ PMbus 24pin, W100xL180xH40mm,RoHS/REACH 5 x 40x40x56 mm 13K-11K RPM Counter-rotating Fan |
| Environmentally Friendly | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
FAQ
What processors are compatible with this server barebone?
The SuperServer 6018R-MD supports dual Intel Xeon processors using the LGA 2011-v3 socket. This socket is compatible with the Xeon E5-2600 v3 and v4 product families, allowing you to choose processors based on core count, clock speed, and thermal design power to match your performance and efficiency requirements.
How much memory can I install in this system?
This barebone system supports a maximum of 512GB of DDR4 memory. It has eight DDR4 memory slots that accept DDR4-2133/PC4-17000 modules. For optimal performance, use registered ECC DIMMs that are compatible with the Intel C612 chipset and your selected Xeon processors.
What storage options does this server support?
The included motherboard provides six Serial ATA/600 ports with hardware RAID support, allowing you to connect SATA hard drives or solid-state drives. The chassis includes brackets and trays for both 3.5-inch and 2.5-inch drives, giving you flexibility to use a mix of drive form factors based on capacity and performance needs.
Can I add expansion cards to this 1U server?
Yes, the system includes one PCI Express x8 expansion slot. A riser card bracket is provided in the package to facilitate the installation of a standard-height PCIe card within the 1U space. This slot can be used for additional network interfaces, storage controllers, or other specialty cards to extend functionality.
What type of power supply is included, and is it efficient?
The system includes a 500W power supply that meets 80 Plus Platinum efficiency standards. It supports input voltages of 120V AC and 230V AC, making it suitable for use in different regions. The Platinum rating ensures high energy efficiency, which can reduce electricity costs and heat output in data center environments.
What cooling solution is provided for the processors?
The package includes two passive CPU heatsinks designed for narrow ILM motherboards, which are specifically intended for 1U chassis. Additionally, five 40x40x56 mm counter-rotating fans are installed to provide airflow across the components. This cooling design is engineered to maintain safe operating temperatures within the compact 1U form factor under typical server workloads.
