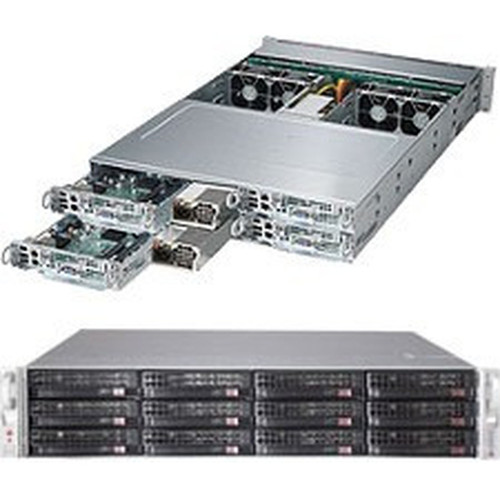

Supermicro SYS-6027PR-HTTR SuperServer 6027PR-HTTR 2U Rackmount Barebone - Dual LGA-2011 - 1TB DDR3 - 10GbE - 2 x 2000W PSU
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
Built on the Intel C606 chipset, the SuperServer 6027PR-HTTR establishes a stable foundation for server-grade components and advanced management features. The system's memory architecture utilizes DDR3-1866/PC3-15000 modules, balancing high bandwidth with efficient power consumption typical of DDR3 technology.
Network connectivity is a standout feature, with support for 10 Gigabit Ethernet alongside Gigabit and Fast Ethernet, enabling seamless integration into high-speed data center networks. Expansion capabilities include one PCI Express x16 slot for adding specialized adapters, while six SATA interfaces and three 3.5" drive bays offer straightforward storage scaling.
Relevant factors for this section include Number of Nodes, Number of Processors Supported, Processor Socket, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This SuperServer barebone delivers enterprise-grade reliability and density in a standardized 2U rack form factor. The inclusion of two 2000W platinum-level redundant power supplies ensures continuous operation and high efficiency, critical for 24/7 data center uptime.
High-Density Compute
Four independent server nodes in one chassis maximize rack space utilization, reducing physical footprint while maintaining separate compute environments.
- Dual processor support per node
- Dedicated memory and storage per node
- Ideal for virtualization and multi-tenant hosting
Advanced Thermal Management
The system includes passive CPU heatsinks designed for the X9 generation motherboard platform, ensuring effective heat dissipation in constrained rack environments.
- Optimized for 1U/2U server configurations
- PWM fan control for dynamic cooling
- Power delay control for HDD spin-up management
Deployment / Use Cases
The SuperServer 6027PR-HTTR is particularly well-suited for environments requiring high compute density with flexible configuration options. Its four-node architecture makes it an excellent choice for hosting providers, cloud infrastructure builders, and enterprises deploying private cloud or virtualization platforms.
The system's robust storage capabilities with hardware RAID support position it effectively for database servers, file servers, and backup applications where data integrity and performance are paramount. The 10 Gigabit Ethernet connectivity enables it to serve as a high-performance node in clustered computing environments, big data analytics platforms, or media rendering farms.
Relevant factors for this section include Number of Nodes, Number of Processors Supported, Processor Socket, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile
Housed in a standard 19-inch rack-mountable chassis with a 2U height (3.47"), the system maintains compatibility with existing data center infrastructure. Its dimensions of 17.25" wide and 28.50" deep fit typical server cabinet depths, while the all-black finish presents a professional, unified appearance in multi-unit installations.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 2U, 17.25" (438.15 mm), 28.50" (723.90 mm). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 17.25" (438.15 mm)
- Depth
- 28.50" (723.90 mm)
- Height
- 2U
What's in the Box
This barebone system arrives with all necessary components to begin building a complete server, excluding processors, memory, and drives.
Highlights
- Supports dual Intel Xeon processors (Socket R LGA-2011) for enterprise-grade compute performance
- Accommodates up to 1 TB of DDR3-1866 memory across 16 slots for demanding workloads
- Features 10 Gigabit, Gigabit, and Fast Ethernet connectivity for flexible network integration
- Includes two 2000W platinum redundant power supplies for maximum uptime and efficiency
- 2U rack-mountable form factor with four independent server nodes in a single chassis
- Hardware RAID 0, 1, 10 support via Serial ATA/600 and Serial ATA/300 controllers
- Comes with comprehensive cooling solution including passive CPU heatsinks for X9 motherboards
- Backed by a 3-year limited warranty from Supermicro
Specifications
| Specifications | |
|---|---|
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | SYS-6027PR-HTTR |
| Brand Name | Supermicro |
| Product Line | SuperServer |
| Product Model | 6027PR-HTTR |
| Product Name | SuperServer 6027PR-HTTR (Black) |
| Product Type | Server Barebone System |
| Processor | |
| Number of Nodes | 4 |
| Number of Processors Supported | 2 |
| Processor Socket | Socket R LGA-2011 |
| Processor Supported | Xeon |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C606 |
| Memory | |
| Maximum Memory Supported | 1 TB |
| Memory Technology | DDR3 SDRAM |
| Memory Standard | DDR3-1866/PC3-15000 |
| Total Number of Memory Slots | 16 |
| Controllers | |
| Controller Type | Serial ATA/600,Serial ATA/300 |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 10 |
| Network & Communication | |
| Ethernet Technology | 10 Gigabit Ethernet,Gigabit Ethernet,Fast Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 3 |
| Number of 3.5" Bays | 3 |
| Total Number of Expansion Slots | 1 |
| Number of PCI Express x16 Slots | 1 |
| Interfaces/Ports | |
| Total Number of USB Ports | 2 |
| Network (RJ-45) | Yes |
| Number of SATA Interfaces | 6 |
| Power Description | |
| Input Voltage | 220 V AC |
| Number of Power Supplies Installed | 2 |
| Maximum Power Supply Wattage | 2 kW |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 3.47" (88.14 mm) |
| Width | 17.25" (438.15 mm) |
| Depth | 28.50" (723.90 mm) |
| Miscellaneous | |
| Package Contents | SuperServer 6027PR-HTTR (Black) 4 x Super X9DRT-PT Motherboard 1 x 2U Chassis 4 x Backplan adapter card; 6SATA ports,RoHS/REACH,PBF 1 x 12x 3.5" hard drive backplane; supports 3.5" Twin Pro Chassis; SAS-3 12Gb/s compliance, new Molex 64-pin receptacles, PWM fan control and Power delay control on HDD spin up,RoHS/REACH,PBF 4 x RSC-R1U-E16R 4 x 1U Passive CPU Heat Sink for X9 Generation Motherboards w/ Narrow ILM 4 x 1U Passive Front CPU Heat Sink for X9 2U Twin^2+ Series Servers 2 x 2000W redundant platinum power supply |
| Environmentally Friendly | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
FAQ
What processors are compatible with this SuperServer barebone?
The SuperServer 6027PR-HTTR supports dual Intel Xeon processors using the Socket R LGA-2011 interface. This socket type accommodates the Xeon E5-2600 and similar server-grade CPU families, providing 64-bit processing capabilities across four independent nodes within the chassis.
How much memory can this system support and what type does it use?
This server barebone supports a maximum of 1 terabyte (TB) of DDR3 SDRAM memory. It utilizes DDR3-1866/PC3-15000 modules across 16 available memory slots, offering high bandwidth for memory-intensive applications while maintaining the power efficiency characteristics of DDR3 technology.
What storage interfaces and RAID capabilities does it include?
The system features Serial ATA/600 and Serial ATA/300 storage controllers with six SATA interfaces. It supports hardware RAID levels 0 (striping), 1 (mirroring), and 10 (striped mirroring), providing both performance optimization and data protection options for installed drives.
What networking options are available on this server?
Network connectivity includes 10 Gigabit Ethernet, Gigabit Ethernet, and Fast Ethernet technologies via standard RJ-45 ports. This multi-speed capability allows the server to integrate into existing network infrastructures while providing high-bandwidth options for data-intensive applications.
What power supplies are included and are they redundant?
The system includes two 2000W platinum-level power supplies configured for redundancy. This dual-power design ensures continuous operation if one supply fails, while the platinum efficiency rating minimizes energy waste and operating costs in data center environments.
What expansion capabilities does this 2U chassis provide?
Expansion options include three 3.5" drive bays, one PCI Express x16 slot for add-in cards, and two USB ports for peripheral connectivity. The chassis also incorporates specialized backplanes and adapter cards to support the four-node architecture and storage configurations.
