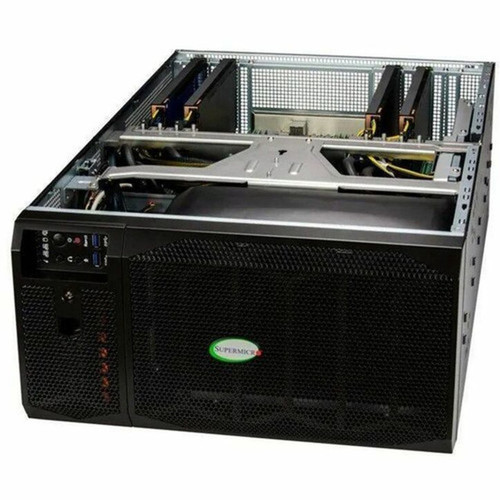

Supermicro SYS-751GE-TNRT SuperWorkstation Tower Barebone System - Dual Socket LGA-4677 - 2TB DDR5 - 6x PCIe x16 - 8 x 2. 5" Bays
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The technical architecture of the SYS-751GE-TNRT centers on enterprise-grade components and extensive connectivity. The Intel C741 chipset provides the foundation for dual-processor configurations, supporting 64-bit processing and advanced memory management. Sixteen DDR5 memory slots accommodate registered ECC modules with speeds up to DDR5-5600, delivering substantial bandwidth for parallel processing and large dataset handling.
Storage flexibility is a key strength, with eight hot-swap 2.5" bays supporting SATA or SAS drives via the integrated Serial ATA/600 controller with hardware RAID 0, 1, 5, and 10 support. Two M.2 interfaces provide additional high-speed NVMe storage options. The six full-length PCIe x16 slots offer extensive expansion for professional graphics cards, computational accelerators, or additional storage controllers.
Relevant factors for this section include Number of Processors Supported, Processor Socket, Processor Supported, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The SYS-751GE-TNRT delivers several distinct advantages for professional workstation deployment. Its dual-processor capability with Socket LGA-4677 support provides exceptional compute density for parallel workloads, while the extensive memory capacity ensures smooth operation of memory-intensive applications like finite element analysis, computational fluid dynamics, and large-scale data processing.
Professional Expansion
Six PCIe x16 slots accommodate multiple high-performance graphics cards, FPGA accelerators, or specialized compute cards for rendering, simulation, and AI workloads.
- Full-length PCIe x16 slots
- Support for dual-width cards
- Professional workstation expansion
Advanced Storage Architecture
Eight 2.5" bays with hardware RAID support combined with two M.2 interfaces provide flexible storage configurations for performance, capacity, or redundancy requirements.
- Hot-swap drive bays
- Hardware RAID 0/1/5/10
- NVMe M.2 support
Enterprise Networking
Dual Gigabit Ethernet and 10 Gigabit Ethernet ports deliver high-speed connectivity for network storage, collaborative workflows, and data transfer between systems.
- 10GbE capability
- Multiple network ports
- Low-latency connectivity
Deployment / Use Cases
The SYS-751GE-TNRT is ideally suited for professional environments requiring substantial computational resources and expansion flexibility. Engineering firms can deploy this system for CAD/CAM applications, finite element analysis, and computational fluid dynamics simulations where dual processors and extensive memory accelerate complex calculations.
Media production studios benefit from the six PCIe slots for multiple high-end graphics cards in rendering farms or video editing workstations. Research institutions can utilize the platform for scientific computing, data analysis, and machine learning workloads where the combination of processor cores, memory bandwidth, and storage performance accelerates research timelines.
Engineering & Simulation
Dual Xeon processors and extensive memory support complex engineering simulations, structural analysis, and product design validation with reduced computation times.
Media Production & Rendering
Multiple PCIe x16 slots accommodate professional graphics cards for real-time 3D rendering, video editing, and visual effects production in post-production environments.
Physical Profile
The tower chassis measures 8.60" (218.44 mm) in height, 17.90" (454.66 mm) in width, and 27.60" (701.04 mm) in depth, with a substantial 97-pound weight that ensures stability during operation. The 5U rack-height compatibility allows for optional rack mounting in data center or lab environments, while the tower form factor provides convenient desktop access for frequent hardware changes or upgrades. The black finish maintains a professional appearance suitable for office, laboratory, or studio settings.
- Width
- 17.90" (454.66 mm)
- Depth
- 27.60" (701.04 mm)
- Height
- 5U
- Weight
- 97 lb (44000 g)
Highlights
- Dual Socket LGA-4677 support for Intel Xeon Bronze, Gold, Silver, and Platinum processors
- Up to 2TB DDR5-5600 memory across sixteen slots for memory-intensive applications
- Six PCI Express x16 slots for professional graphics cards and expansion cards
- Eight 2.5" drive bays with hardware RAID 0, 1, 5, and 10 support
- 10 Gigabit Ethernet networking for high-speed data transfer and network storage
- Two M.2 interfaces for high-performance NVMe storage options
- Intel C741 chipset with 64-bit processing capability
- Tower form factor with 5U rack-height compatibility for flexible deployment
Specifications
| Specifications | |
|---|---|
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | SYS-751GE-TNRT |
| Brand Name | Supermicro |
| Product Line | SuperWorkstation |
| Product Model | SYS-751GE-TNRT |
| Product Name | SuperWorkstation SYS-751GE-TNRT Barebone System |
| Product Type | Barebone System |
| Processor | |
| Number of Processors Supported | 2 |
| Processor Socket | Socket LGA-4677 |
| Processor Supported | Xeon Bronze,Xeon Gold,Xeon Silver,Xeon Platinum |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C741 |
| Memory | |
| Maximum Memory Supported | 2 TB |
| Memory Technology | DDR5 SDRAM |
| Memory Standard | DDR5-5600/PC5-44800 |
| Total Number of Memory Slots | 16 |
| Controllers | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 10 |
| Display & Graphics | |
| Graphics Controller Model | A100 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet,10 Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 8 |
| Number of 2.5" Bays | 8 |
| Total Number of Expansion Slots | 6 |
| Number of PCI Express x16 Slots | 6 |
| Number of M.2 Interfaces | 2 |
| Interfaces/Ports | |
| Total Number of USB Ports | 6 |
| Number of USB 3.2 Gen 1 Ports | 5 |
| Number of USB 3.2 Gen 2 Ports | 1 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 3 |
| Number of SATA Interfaces | 2 |
| Number of VGA Ports | 1 |
| Power Description | |
| Number of Power Supplies Installed | 1 |
| Maximum Power Supply Wattage | 2.20 kW |
| Thermal Design Power | 350 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Tower |
| Rack Height | 5U |
| Height | 8.60" (218.44 mm) |
| Width | 17.90" (454.66 mm) |
| Depth | 27.60" (701.04 mm) |
| Weight (Approximate) | 97 lb (44000 g) |
User Manual
FAQ
What processors are compatible with this barebone system?
The SYS-751GE-TNRT supports dual Intel Xeon processors using the Socket LGA-4677 interface. Compatible processor families include Xeon Bronze, Xeon Gold, Xeon Silver, and Xeon Platinum series. This provides flexibility for different performance and budget requirements while maintaining enterprise-grade reliability and features.
How much memory can this workstation support?
This system supports up to 2TB of DDR5 SDRAM memory across sixteen memory slots. The memory operates at DDR5-5600 speeds (PC5-44800), providing substantial bandwidth for memory-intensive applications like engineering simulations, data analysis, and virtualized environments.
What expansion capabilities does this workstation offer?
The SYS-751GE-TNRT provides extensive expansion with six PCI Express x16 slots for professional graphics cards, computational accelerators, or storage controllers. Additionally, it includes eight 2.5" drive bays, two M.2 interfaces for NVMe storage, and comprehensive I/O including multiple USB and network ports.
What storage configurations are supported?
Storage options include eight 2.5" bays supporting SATA or SAS drives with hardware RAID 0, 1, 5, and 10 capabilities via the integrated Serial ATA/600 controller. Two M.2 interfaces provide additional high-speed NVMe storage options, allowing for mixed storage configurations optimized for performance, capacity, or redundancy.
What networking features are included?
Networking capabilities include both Gigabit Ethernet and 10 Gigabit Ethernet technology with three RJ-45 network ports. The 10GbE support enables high-speed data transfer for network-attached storage, collaborative workflows, and data-intensive applications requiring low-latency network connectivity.
Can this system be rack-mounted?
Yes, the tower chassis has 5U rack-height compatibility, allowing for optional rack mounting in data center, laboratory, or studio environments. The substantial 97-pound weight and robust construction ensure stability whether deployed as a standalone tower or integrated into a rack configuration.
