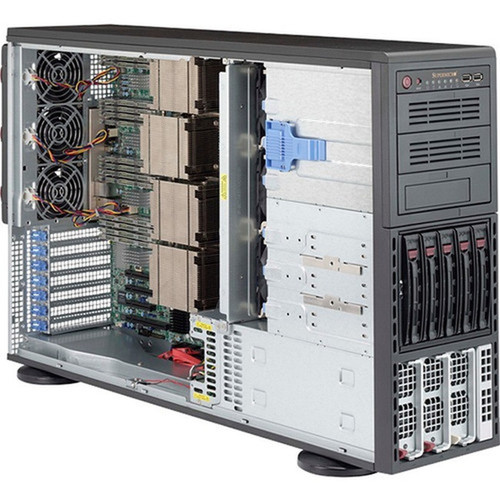

Supermicro SYS-8048B-C0R3FT Server Barebone System - 4U Tower - 4x LGA-2011 CPU Support - 2TB DDR3 - Intel C602J Chipset
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This server barebone system delivers enterprise-grade hardware architecture with comprehensive expansion capabilities. The motherboard features four PCI Express expansion slots, including two x8 and two x16 slots, allowing for substantial add-in card deployment such as GPU accelerators, additional network interfaces, or specialized storage controllers.
The platform includes eight SAS interfaces for direct-attached storage expansion and three USB ports for peripheral connectivity. The system's thermal management incorporates four passive CPU heat sinks designed for X9 and X10 generation systems with narrow ILM motherboards, ensuring efficient cooling for multi-processor configurations.
Relevant factors for this section include Number of Processors Supported, Processor Socket, Processor Supported, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The Supermicro 8048B-C0R3FT combines massive compute scalability with robust enterprise features in a single integrated platform. Its quad-processor architecture enables exceptional parallel processing capability, while the extensive memory and storage options provide the foundation for demanding server workloads.
High-Density Compute
Support for four Intel Xeon processors delivers exceptional multi-threaded performance for virtualization, database, and HPC applications.
- 4 x Socket R1 LGA-2011
- Intel C602J chipset
- 64-bit processing architecture
Enterprise Storage Flexibility
Integrated Serial ATA/600 and 6Gb/s SAS controller with hardware RAID support provides reliable storage performance and data protection.
- 5 x 3.5" drive bays
- Hardware RAID support
- SAS and SATA compatibility
Reliable Power Architecture
Dual 1400W redundant power supplies with wide input voltage range ensure continuous operation and power efficiency.
- 2 x 1400W supplies
- 120-230V AC input
- Redundant configuration
Deployment / Use Cases
This server barebone system is designed for enterprise environments requiring substantial compute resources and reliable infrastructure. Its quad-processor architecture and extensive memory capacity make it particularly suitable for virtualization hosts, where multiple virtual machines can leverage the platform's parallel processing capabilities and memory bandwidth.
The system's storage flexibility and expansion options support database server deployment, with the ability to configure RAID-protected storage arrays for critical data. Technical computing applications, including scientific simulations and engineering analysis, benefit from the platform's processing power and PCI Express expansion for accelerator cards.
Virtualization Host
Ideal for hosting multiple virtual machines with dedicated processor and memory resources in enterprise virtualization environments.
Database Server
Supports high-performance database applications with RAID-protected storage and substantial memory for query processing and caching.
Physical Profile
The system employs a 4U tower form factor with dimensions of 18.20" height, 7" width, and 28.40" depth, providing substantial internal space for components and cooling. The black chassis features a professional appearance suitable for data center or server room environments. With an approximate weight of 65.48 pounds, the system requires appropriate rack mounting or placement consideration.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 4U, 7" (177.80 mm), 28.40" (721.36 mm), 65.48 lb (29700 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 7" (177.80 mm)
- Depth
- 28.40" (721.36 mm)
- Height
- 4U
- Weight
- 65.48 lb (29700 g)
What's in the Box
The Supermicro 8048B-C0R3FT server barebone system includes all necessary components for assembly and operation.
Highlights
- Supports up to four Intel Xeon processors in Socket R1 LGA-2011 sockets
- Maximum memory capacity of 2 TB DDR3 across 32 DIMM slots
- Integrated Serial ATA/600 and 6Gb/s SAS controller with hardware RAID support
- Dual 1400W redundant power supplies with wide input voltage range
- 10 Gigabit Ethernet and Fast Ethernet networking for high-speed connectivity
- Five 3.5" drive bays for storage expansion
- Four PCI Express expansion slots (2 x x8, 2 x x16)
- Black 4U tower form factor with professional chassis design
- Includes all necessary components for complete system assembly
- 3-year limited warranty with environmentally friendly design
Specifications
| Specifications | |
|---|---|
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | SYS-8048B-C0R3FT |
| Brand Name | Supermicro |
| Product Model | 8048B-C0R3FT |
| Product Name | SuperServer 8048B-C0R3FT (Black) |
| Product Type | Server Barebone System |
| Processor | |
| Number of Processors Supported | 4 |
| Processor Socket | Socket R1 LGA-2011 |
| Processor Supported | Xeon |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C602J |
| Memory | |
| Maximum Memory Supported | 2 TB |
| Memory Technology | DDR3 SDRAM |
| Memory Standard | DDR3-1600/PC3-12800 |
| Total Number of Memory Slots | 32 |
| Controllers | |
| Controller Type | Serial ATA/600,6Gb/s SAS |
| RAID Supported | Yes |
| Network & Communication | |
| Ethernet Technology | 10 Gigabit Ethernet,Fast Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 5 |
| Number of 3.5" Bays | 5 |
| Total Number of Expansion Slots | 4 |
| Number of PCI Express x8 Slots | 2 |
| Number of PCI Express x16 Slots | 2 |
| Interfaces/Ports | |
| Total Number of USB Ports | 3 |
| Number of SAS Interfaces | 8 |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Number of Power Supplies Installed | 2 |
| Maximum Power Supply Wattage | 1.40 kW |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Tower |
| Rack Height | 4U |
| Height | 18.20" (462.28 mm) |
| Width | 7" (177.80 mm) |
| Depth | 28.40" (721.36 mm) |
| Weight (Approximate) | 65.48 lb (29700 g) |
| Miscellaneous | |
| Package Contents | SuperServer 8048B-C0R3FT (Black) 1 x CSE-748TQ-R1K43B Chassis 1 x Super X10QBL-CT Motherboard 1 x Mylar air shroud for SC748 (X10QBL-CT),RoHS/REACH 1 x M35 SAS BACKPLANE W/AMI MG9072 2 x internal mini SAS HD to 4 SATA 50CM, S, w/50cm SB,HF,RoHS/REACH,PBF 1 x CAUTION LABEL FOR REDUNDANT PWR SYSTEMS 1 x Standard I/O shield for X10QBL-CT with EMI Gasket,RoHS/REACH 4 x 2U Passive CPU Heat Sink for X9, X10 Generation Systems Equipped w/ a Narrow ILM MB 2 x 1400W redundant digital power supply |
| Environmentally Friendly | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
FAQ
How many processors does this server barebone system support?
The Supermicro 8048B-C0R3FT supports up to four Intel Xeon processors using Socket R1 LGA-2011 sockets. This quad-processor architecture enables substantial parallel processing capability for demanding enterprise workloads such as virtualization, database hosting, and technical computing applications.
What is the maximum memory capacity and configuration?
This system supports up to 2 TB of DDR3 memory across 32 DIMM slots. The memory operates at DDR3-1600/PC3-12800 speeds, providing substantial bandwidth for memory-intensive applications. The extensive memory capacity supports virtualization environments, large databases, and technical computing workloads requiring substantial RAM resources.
What storage interfaces and configurations are available?
The system includes an integrated Serial ATA/600 and 6Gb/s SAS controller with hardware RAID support. It features five 3.5" drive bays for storage expansion, supporting both SAS and SATA drives. The controller enables RAID configurations for data protection and performance optimization in enterprise storage deployments.
What networking capabilities does this system provide?
The platform includes 10 Gigabit Ethernet and Fast Ethernet networking interfaces. The 10GbE connectivity enables high-speed network throughput for data center environments, supporting rapid data transfer for virtualization, storage, and compute-intensive applications. This networking capability is essential for modern enterprise server deployments.
What power supply configuration is included?
The system includes two 1400W redundant power supplies that support input voltages of 120V AC and 230V AC. The redundant configuration ensures continuous operation if one power supply fails, while the high wattage rating supports the substantial power requirements of quad-processor configurations with multiple expansion cards and storage drives.
What expansion options are available for add-in cards?
The motherboard provides four PCI Express expansion slots: two x8 slots and two x16 slots. These slots support various add-in cards including GPU accelerators, additional network interfaces, storage controllers, or specialized compute cards. The expansion capability allows customization of the system for specific workload requirements and future upgrades.
