Supermicro SYS-F619P3-FT SuperServer F619P3-FT 4U Rackmount Barebone - Dual LGA-3647 - Intel C621 - 3TB DDR4-2933 - 12 SATA - 8 Power Supplies
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview

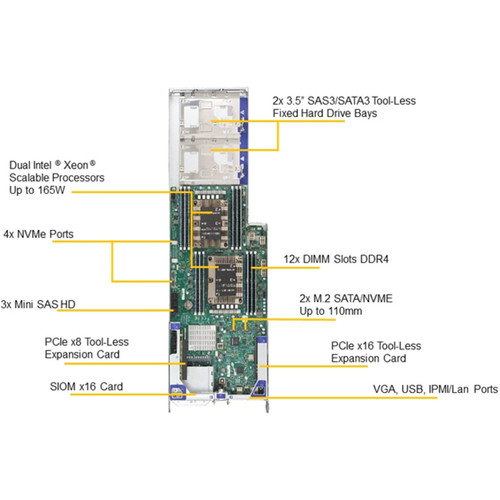

This server barebone features a dual-node architecture with eight independent nodes, each capable of supporting two processors via the Socket P LGA-3647 interface. The Intel C621 chipset enables advanced memory management and I/O throughput, with DDR4-2933 memory delivering high bandwidth for data-intensive tasks.
Storage connectivity includes 12 Serial ATA/600 ports with hardware RAID support, facilitating fast data transfer and redundancy. Expansion is handled through three PCIe slots (one x8 and two x16), while network communication is provided by Gigabit Ethernet. The system is Intel Optane Memory Ready, allowing for accelerated storage performance when compatible modules are installed.
Relevant factors for this section include Number of Nodes, Number of Processors Supported, Processor Socket, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The SuperServer F619P3-FT combines scalable performance with enterprise-grade reliability. Its 4U rackmount form factor optimizes space efficiency in data centers, and the tool-less design simplifies maintenance. Environmental compliance with RoHS standards and a three-year limited warranty further enhance its value for business deployments.
High-Density Compute
With support for dual LGA-3647 processors and up to 3 TB of DDR4-2933 memory, this server delivers exceptional processing power and memory capacity for virtualization, database, and HPC applications.
Redundant Power Design
Eight installed power supplies with 230 V AC input provide N+1 redundancy, minimizing downtime and ensuring continuous operation in mission-critical deployments.
Flexible Storage Expansion
Twelve SATA interfaces with RAID support allow for extensive storage configurations, while PCIe x16 slots enable high-speed add-in cards for GPU, networking, or storage acceleration.
Deployment / Use Cases
This server barebone is designed for environments requiring high availability and performance. Common use cases include enterprise server consolidation, cloud infrastructure, and high-performance computing clusters.
The included static rail set supports rack depths from 28 to 33.5 inches, facilitating easy integration into standard data center cabinets. With Gigabit Ethernet and USB 3.0 ports, it supports efficient network communication and peripheral connectivity.
Relevant factors for this section include Number of Nodes, Number of Processors Supported, Processor Socket, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Virtualization Host
Ideal for hosting multiple virtual machines, thanks to dual processor support, high memory capacity, and redundant power supplies that ensure uptime for critical workloads.
Data Analytics Platform
Suited for big data processing and analytics applications, leveraging fast DDR4 memory, multiple SATA interfaces, and PCIe expansion for storage and compute accelerators.
Physical Profile
The SuperServer F619P3-FT features a black 4U rack-mountable chassis with dimensions of 6.96 inches in height, 17.63 inches in width, and 29 inches in depth. Its approximate weight is 150 pounds, making it a substantial yet manageable unit for data center installation.
The design includes tool-less drive bays and a structured layout for optimal airflow and cooling. The 4U height provides ample space for components while maintaining rack density, and the black finish ensures a professional appearance in server rooms.
- Width
- 17.63" (447.80 mm)
- Depth
- 29" (736.60 mm)
- Height
- 4U
- Weight
- 150 lb (68038.86 g)
What's in the Box
This server barebone system includes all necessary components for assembly and operation. The package contains the SuperServer F619P3-FT chassis, motherboards, power adapter cards, cables, heat sinks, power supplies, and mounting rails.
Highlights
- Dual LGA-3647 processor sockets support Intel Xeon Platinum, Gold, Silver, and Bronze CPUs
- Up to 3 TB of DDR4-2933 memory across 12 slots for high-bandwidth applications
- 12 SATA interfaces with RAID support enable flexible storage configurations
- Eight redundant power supplies with 230 V AC input ensure reliable operation
- 4U rack-mountable form factor with tool-less design for easy maintenance
- Intel C621 chipset provides advanced I/O and memory management capabilities
- Gigabit Ethernet and USB 3.0 ports support network and peripheral connectivity
- Intel Optane Memory Ready for accelerated storage performance
- Includes static rail set for 28-33.5 inch rack depth compatibility
- RoHS compliant and backed by a three-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | SYS-F619P3-FT |
| Brand Name | Supermicro |
| Product Line | SuperServer |
| Product Model | F619P3-FT |
| Product Name | SuperServer F619P3-FT (Black) |
| Product Type | Server Barebone System |
| Processor | |
| Number of Nodes | 8 |
| Number of Processors Supported | 2 |
| Processor Socket | Socket P LGA-3647 |
| Processor Supported | Xeon Platinum,Xeon Gold,Xeon Silver,Xeon Bronze |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C621 |
| Memory | |
| Maximum Memory Supported | 3 TB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-2933/PC4-23466 |
| Total Number of Memory Slots | 12 |
| Intel Optane Memory Ready | Yes |
| Controllers | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 2 |
| Number of 3.5" Bays | 2 |
| Total Number of Expansion Slots | 3 |
| Number of PCI Express x8 Slots | 1 |
| Number of PCI Express x16 Slots | 2 |
| Interfaces/Ports | |
| Total Number of USB Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| Number of SATA Interfaces | 12 |
| Power Description | |
| Input Voltage | 230 V AC |
| Number of Power Supplies Installed | 8 |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Rack-mountable |
| Rack Height | 4U |
| Height | 6.96" (176.78 mm) |
| Width | 17.63" (447.80 mm) |
| Depth | 29" (736.60 mm) |
| Weight (Approximate) | 150 lb (68038.86 g) |
| Miscellaneous | |
| Package Contents | SuperServer F619P3-FT (Black) 8 x Super X11DPFF-SN Motherboard 4U Chassis 8 x Power Adapter Card For X11DPFF,RoHS 8 x CBL,SGPIO,2X5F TO 2X5F,P2.54, 14CM, 24AWG,RoHS 4 x PWCD,US,IEC60320 C14 TO C13,3FT,14AWG 16 x PWEX,2X4F/P4.2 TO 2X4F/P4.2,10.5CM,16AWG,RoHS 8 x MINI SAS HD-SAS 29PX2+2x4P,INT,46/56/41/52CM,22/30AWG,RoHS 16 x Tool-less 3.5 8 x RSC-P-6 (1U LHS TwinPro RSC with 1 PCI-Ex16),RoHS 8 x RSC-R1UF-E16R 8 x 1U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism 8 x 1U Passive CPU Heat Sink with a 17-mm Wide Side Air Channel for X11 Purley Platform Equipped with a Narrow Retention Mechanism 4 x AC-DC 2000W, Titanium Level, Redundancy, 1U, PMBus 1.2, +12V/+5Vsb, 360x76x40mm,HF,RoHS/REACH 4 x 1U 2200W Redundant, Titanium, 76(W) X 40(H) X 336(L) mm 2 x Power Middleplane for X11 FIO Fattwin,RoHS 1 x Fat twin F418 / F424 Static Rail Set Support 28-33.5 inch depth rail,RoHS/REACH,PBF |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
FAQ
What processors are compatible with this server barebone?
The SuperServer F619P3-FT supports dual Socket P LGA-3647 processors, compatible with Intel Xeon Platinum, Xeon Gold, Xeon Silver, and Xeon Bronze series CPUs. This allows for a range of performance options from entry-level to high-end compute capabilities.
How much memory can this system support?
This server barebone supports up to 3 TB of DDR4 SDRAM across 12 memory slots. The memory standard is DDR4-2933/PC4-23466, providing high bandwidth for data-intensive tasks such as virtualization and database applications.
What storage interfaces are available?
The system includes 12 Serial ATA/600 interfaces with hardware RAID support. This allows for multiple SATA drives to be configured in RAID arrays for performance, redundancy, or capacity, depending on your storage needs.
How many power supplies are included, and what is their redundancy?
Eight power supplies are installed, with an input voltage of 230 V AC. This N+1 redundant design ensures that if one power supply fails, the others can maintain system operation, minimizing downtime in critical deployments.
What expansion slots does this server have?
There are three PCIe expansion slots: one PCI Express x8 slot and two PCI Express x16 slots. These slots support add-in cards for graphics, networking, storage controllers, or other peripherals to extend system functionality.
What is included in the package for mounting and assembly?
The package includes a Fat twin F418/F424 static rail set that supports rack depths from 28 to 33.5 inches. It also contains tool-less drive bays, riser cards, heat sinks, power adapter cards, and various cables for complete assembly and integration into a data center rack.
