Supermicro SYS-741GE-TNRT SuperServer Barebone System - Dual Socket LGA-4677 - 4TB DDR5 - 8 x 3. 5" Bays - 10GbE - 2 x 2000W PSU - Tower
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The technical architecture centers on the Intel C741 chipset with dual LGA-4677 sockets, providing robust platform support for current-generation Xeon processors. Memory configuration leverages 16 DDR5-4800/PC5-38400 DIMM slots capable of supporting up to 4TB total capacity, ensuring high-throughput data access.
Storage flexibility is delivered through an 8-port 3.5" LFF direct-attached backplane that supports both 32GT/s NVMe Gen5 and 24Gb/s SAS4 drives. The system includes Serial ATA/600 controllers with hardware RAID support for levels 0, 1, 5, and 10, providing data protection and performance optimization options.
This section brings together practical product details such as Number of Processors Supported, Processor Socket, Processor Supported, Chipset Manufacturer, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The SYS-741GE-TNRT combines server-grade components with thoughtful engineering to deliver reliable performance in demanding environments. Redundant 2000W Titanium-certified power supplies with PMbus monitoring ensure continuous operation while maximizing energy efficiency.
Enterprise-Grade Expansion
Seven PCI Express x16 slots and two M.2 interfaces provide extensive connectivity for GPUs, network adapters, and storage controllers, enabling customized configuration for specific workload requirements.
- 7x PCIe x16 expansion slots
- 2x M.2 interfaces for NVMe storage
- 8x 3.5" hot-swap drive bays
High-Performance Networking
Dual 10 Gigabit Ethernet ports deliver the network throughput needed for data-intensive applications, virtualization environments, and clustered computing scenarios where low latency and high bandwidth are critical.
- 10GbE technology for rapid data transfer
- Dual RJ-45 ports for network redundancy
- Optimized for enterprise environments
Deployment / Use Cases
This SuperServer barebone system is designed for IT professionals building customized server solutions for medium to large enterprises. The tower form factor offers cost-effective deployment in standard server rooms while providing enterprise-grade features typically found in rack-mounted systems.
Typical deployment scenarios include database servers, application hosting platforms, development and testing environments, and compute nodes for technical computing workloads. The comprehensive package contents provide all necessary components for rapid deployment without requiring additional chassis modifications.
Virtualization Host
With dual processor support, extensive memory capacity, and multiple PCIe expansion slots, this system excels as a virtualization platform for consolidating multiple virtual machines and applications.
Storage Server
Eight 3.5" drive bays with support for both NVMe Gen5 and SAS4 interfaces make this an ideal foundation for high-performance storage servers, NAS solutions, or backup repositories.
Physical Profile

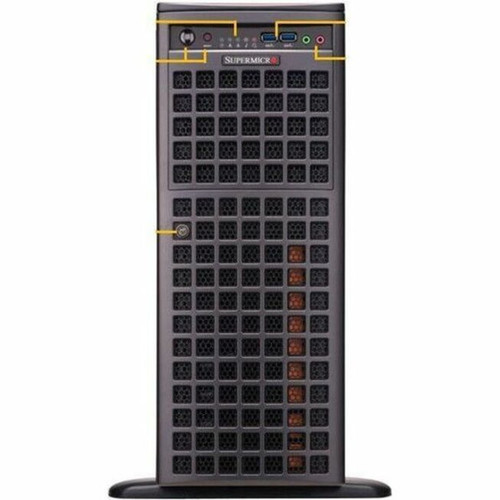

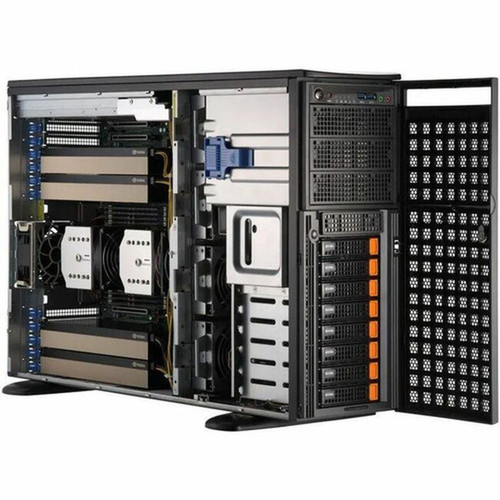

The tower chassis measures 7 inches in height, 17.2 inches in width, and 29 inches in depth, with an approximate weight of 46.08 pounds. The dual-color design features a black front bezel with a silver body, providing a professional appearance for office or data center environments.

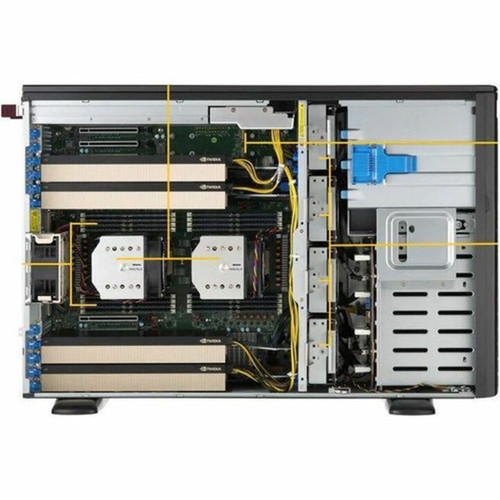

The system includes a complete cooling solution with multiple 92x92x38mm high-performance fans and dedicated CPU heatsinks to maintain optimal operating temperatures under heavy loads. Plastic feet provide stable placement, while the included front control panel offers convenient USB 3.0 and audio connectivity.
- Width
- 17.20" (436.88 mm)
- Depth
- 29" (736.60 mm)
- Height
- 7" (177.80 mm)
- Weight
- 46.08 lb (20900 g)
What's in the Box
The SuperServer SYS-741GE-TNRT package includes all necessary components for a complete barebone system deployment:
Highlights
- Dual Socket LGA-4677 supports Intel Xeon Platinum, Gold, Silver, and Bronze processors
- Up to 4TB DDR5-4800 memory across 16 DIMM slots for high-bandwidth computing
- Eight 3.5" drive bays with NVMe Gen5 and SAS4 support for flexible storage configurations
- Seven PCI Express x16 expansion slots for GPU, network, and storage controller cards
- Dual 10 Gigabit Ethernet ports provide high-speed network connectivity
- Redundant 2000W Titanium-certified power supplies ensure continuous operation
- Intel C741 chipset delivers enterprise platform features and reliability
- Hardware RAID 0,1,5,10 support for data protection and performance optimization
- Tower form factor with professional black and silver design
- Comprehensive package includes all necessary components for rapid deployment
Specifications
| Specifications | |
|---|---|
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | SYS741GETNRT |
| Brand Name | Supermicro |
| Product Line | SuperServer |
| Product Model | 741GE-TNRT |
| Product Name | SuperServer SYS-741GE-TNRT (Black Front & Silver Body) |
| Product Type | Server Barebone System |
| Processor | |
| Number of Processors Supported | 2 |
| Processor Socket | Socket LGA-4677 |
| Processor Supported | Xeon Platinum,Xeon Gold,Xeon Silver,Xeon Bronze |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C741 |
| Memory | |
| Maximum Memory Supported | 4 TB |
| Memory Technology | DDR5 SDRAM |
| Memory Standard | DDR5-4800/PC5-38400 |
| Total Number of Memory Slots | 16 |
| Controllers | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 10 |
| Network & Communication | |
| Ethernet Technology | 10 Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 8 |
| Number of 3.5" Bays | 8 |
| Total Number of Expansion Slots | 7 |
| Number of PCI Express x16 Slots | 7 |
| Number of M.2 Interfaces | 2 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Number of VGA Ports | 1 |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Number of Power Supplies Installed | 2 |
| Maximum Power Supply Wattage | 2 kW |
| Physical Characteristics | |
| Color Family | Dual Color |
| Product Color | Black,Silver |
| Form Factor | Tower |
| Height | 7" (177.80 mm) |
| Width | 17.20" (436.88 mm) |
| Depth | 29" (736.60 mm) |
| Weight (Approximate) | 46.08 lb (20900 g) |
| Miscellaneous | |
| Warranty | |
| Limited Warranty | 1 Year |
| Additional Warranty Information | Supermicro provides a three-year warranty for labor and one-year warranty for parts. |
User Manual
FAQ
What processors are compatible with this SuperServer system?
The SYS-741GE-TNRT supports dual Intel Xeon processors using the LGA-4677 socket, including the Platinum, Gold, Silver, and Bronze families. This compatibility provides flexibility for selecting the appropriate processor performance level based on your specific workload requirements and budget considerations.
How much memory can this server system support?
This system supports up to 4 terabytes of DDR5 memory across 16 DIMM slots. The memory operates at DDR5-4800/PC5-38400 speeds, providing high bandwidth for memory-intensive applications such as virtualization, database management, and scientific computing workloads.
What storage expansion options are available?
The chassis includes eight 3.5" drive bays with a backplane that supports both 32GT/s NVMe Gen5 and 24Gb/s SAS4 interfaces. Additionally, the system features two M.2 interfaces and Serial ATA/600 controllers with hardware RAID support for levels 0, 1, 5, and 10, offering comprehensive storage configuration flexibility.
What networking capabilities does this system provide?
The SuperServer includes two 10 Gigabit Ethernet ports using RJ-45 connectors. This 10GbE technology delivers high-speed network connectivity suitable for enterprise environments, data center deployments, and applications requiring rapid data transfer between systems or storage arrays.
What power supply configuration is included?
The system comes with two 1U 2000W Redundant Titanium Power Supplies that feature PMbus monitoring capabilities. This redundant configuration ensures continuous operation even if one power supply fails, while the Titanium certification indicates high energy efficiency exceeding 94% at typical loads.
What expansion slots are available for additional cards?
The chassis provides seven PCI Express x16 expansion slots, allowing installation of multiple GPUs, network adapters, storage controllers, or other expansion cards. This extensive expansion capability enables customization for specific workloads such as GPU computing, additional network interfaces, or specialized storage solutions.
What processor or platform detail is listed?
This product uses the Socket LGA-4677 processor for everyday performance and multitasking.
