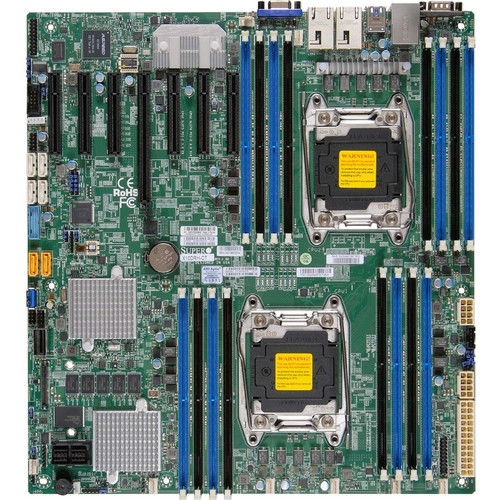

Supermicro X10DRH-CT Server Motherboard - Intel C612 Chipset - Socket LGA 2011-v3 - Extended ATX - 1 TB DDR4 SDRAM Maximum RAM - - - x (MBD-X10DRH-CT-B)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- X10DRH-CT Server Motherboard
- 1 x Quick Reference Guide
- 1 x I/O Shield
- 2 x I/O Shield
- SC826BE1C-R920LPB
- SC836BE2C-R1K03B
- SC836BE1C-R1K03B
- SC835TQ-R920B
- SC732D4F-903B
- SC732i-865B
- SC743TQ-1200B
- SSG-6028R-E1CR12T
- SYS-2028R-C1RT
- SYS-7048R-C1RT
Chipset Manufacturer: Intel
Chipset Model: C612
Total Processor Supported: 2
Processor Socket: Socket LGA 2011-v3
Processor Supported: Xeon
Number of Memory Slots: 16
Memory Form Factor: DIMM,LRDIMM,RDIMM
Maximum Memory Supported: 1 TB
Memory Speed Supported: 2133 MHz,1866 MHz,1600 MHz
Memory Standard: DDR4-2133/PC4-17000,DDR4-1866/PC4-14900,DDR4-1600/PC4-12800
Memory Technology: DDR4 SDRAM
Controller Type: Serial ATA/600,12Gb/s SAS
RAID Supported: Yes
RAID Levels: 0,1,5,6,10,50,60
Onboard Video: On-board Video Chipset
Graphics Controller Model: AST2400
10Gigabit Ethernet: Yes
Total Number of Expansion Slots: 7
Total Number of PCI Express Slots: 7
Number of PCI Express x8 Slots: 6
Number of PCI Express x16 Slots: 1
Total Number of USB Ports: 4
Number of USB 3.0 Ports: 2
VGA: Yes
Number of SATA Interfaces: 10
Number of Mini-SAS Interfaces: 8
Total Number of Onboard USB Ports: 5
Number of Onboard USB 3.0 Ports: 3
Form Factor: Extended ATX
Width: 13" (330.20 mm)
Depth: 12" (304.80 mm)
Package Contents:
Compatibility: Supermicro Super Chasis
2U Chassis:
3U Chassis:
Mid/Mini Tower Chassis:
4U / Tower Chassis:
Environmentally Friendly: Yes
Limited Warranty: 3 Year
- Experience high performance, built-in security and remote management capabilities with compatible Intel Xeon processor
- DDR4 SDRAM compatible slot - Allows the memory to operate at an effective bus speed while using minimal power, resulting in an optimal computer performance and improved memory heat dissipation
- Supported 0 RAID levels provide data reliability and fault tolerance
- Extended ATX form factor brings a significant number of PCI slots, expansion slots, and peripheral ports with an enhanced heat dissipation capability
[custom-specifications]
| Specifications | |
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | MBD-X10DRH-CT-B |
| Manufacturer Website Address | http://www.supermicro.com |
| Brand Name | Supermicro |
| Product Model | X10DRH-CT |
| Product Name | X10DRH-CT Server Motherboard |
| Packaged Quantity | 1 |
| Package Type | Bulk |
| Product Type | Server Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C612 |
| Total Processor Supported | 2 |
| Processor Socket | Socket LGA 2011-v3 |
| Processor Supported | Xeon |
| Memory | |
| Number of Memory Slots | 16 |
| Memory Form Factor | DIMM,LRDIMM,RDIMM |
| Maximum Memory Supported | 1 TB |
| Memory Speed Supported | 2133 MHz,1866 MHz,1600 MHz |
| Memory Standard | DDR4-2133/PC4-17000,DDR4-1866/PC4-14900,DDR4-1600/PC4-12800 |
| Memory Technology | DDR4 SDRAM |
| I/O Controller | |
| Controller Type | Serial ATA/600,12Gb/s SAS |
| RAID Supported | Yes |
| RAID Levels | 0,1,5,6,10,50,60 |
| Video | |
| Onboard Video | On-board Video Chipset |
| Graphics Controller Model | AST2400 |
| Network & Communication | |
| 10Gigabit Ethernet | Yes |
| I/O Expansions | |
| Total Number of Expansion Slots | 7 |
| Total Number of PCI Express Slots | 7 |
| Number of PCI Express x8 Slots | 6 |
| Number of PCI Express x16 Slots | 1 |
| Interfaces/Ports | |
| Total Number of USB Ports | 4 |
| Number of USB 3.0 Ports | 2 |
| VGA | Yes |
| Onboard Interfaces | |
| Number of SATA Interfaces | 10 |
| Number of Mini-SAS Interfaces | 8 |
| Total Number of Onboard USB Ports | 5 |
| Number of Onboard USB 3.0 Ports | 3 |
| Physical Characteristics | |
| Form Factor | Extended ATX |
| Width | 13" (330.20 mm) |
| Depth | 12" (304.80 mm) |
| Miscellaneous | |
| Package Contents |
|
| Compatibility | Supermicro Super Chasis 2U Chassis:
3U Chassis:
Mid/Mini Tower Chassis:
4U / Tower Chassis:
|
| Environmentally Friendly | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
[/custom-specifications]
