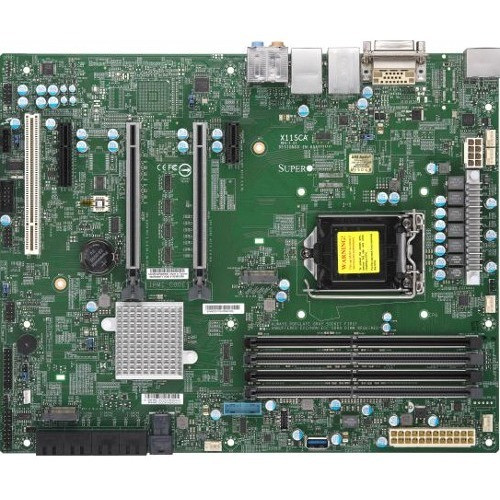

Supermicro X11SCA Workstation Motherboard Intel Chipset LGA-1151 ATX 64 GB DDR4 UDIMM DIMM Maximum Socket SDRAM RAM MBD-X11SCA-B
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- X11SCA Workstation Motherboard
- 2 x SATA 3 Cable
- 1 x X11SCA Series IO Shield
- 2 x M.2 SSD Folder
Marketing Information:
UP Xeon® Motherboards - Socket H4 (LGA 1151)
Xeon® E-2100 Boards / Socket H4 (LGA 1151)
Supermicro's new X11SCA workstation motherboard comes in a standard ATX form factor packed with features and expandability options including 4k video support. Optimized for the latest Xeon E processors, this platform supports up to 64GB of either ECC or non-ECC DDR4-2666 memory, triple displays with DisplayPort 1.2, HDMI 2.0, DVI-D; dual M.2, U.2, dual GbE LAN ports, and USB 3.1 Gen 2. In addition, there is a front panel USB-C header on the X11SCA motherboard with different versions to add either gigabit wireless 802.11ac with Bluetooth 5.0 (X11SCA-W) or Supermicro IPMI 2.0 with an additional VGA port (X11SCA-F).
Chipset Manufacturer: Intel
Chipset Model: C246
Total Processor Supported: 1
Processor Socket: Socket H4 LGA-1151
Processor Supported: Celeron,Core i3,Pentium,Xeon
Number of Memory Slots: 4
Memory Form Factor: DIMM,UDIMM
Maximum Memory Supported: 64 GB
Memory Speed Supported: 2666 MHz
Memory Technology: DDR4 SDRAM
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0,1,5,10
Onboard Video: CPU Dependent Video
Gigabit Ethernet: Yes
Total Number of Expansion Slots: 5
Total Number of PCI Express Slots: 4
Number of PCI Express x1 Slots: 1
Number of PCI Express x4 Slots: 1
Number of PCI Express x16 Slots: 2
Total Number of USB Ports: 4
Number of USB 3.1 Ports: 4
HDMI: Yes
DisplayPort: Yes
DVI: Yes
Number of SATA Interfaces: 8
Number of M.2 Interfaces: 2
Total Number of Onboard USB Ports: 6
Number of Onboard USB 3.1 Ports: 4
Form Factor: ATX
Width: 12" (304.80 mm)
Depth: 9.60" (243.84 mm)
Package Contents:
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 1 Year
- Compatible Intel Core i3 processor is smart and responsive, which lets you use multiple applications without any lag
- DDR4 SDRAM compatible slot - Install memory that synchronizes electrical and clock signals for an efficient data throughput
- RAID supported levels provide data reliability and fault tolerance
- HDMI interface enables the user to experience a fantastic sound/video quality at the expense of a single cable
- DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
- ATX form factor brings a significant number of PCI slots, expansion slots, and peripheral ports with an enhanced heat dissipation capability
[custom-specifications]
| Specifications | |
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | MBD-X11SCA-B |
| Manufacturer Website Address | http://www.supermicro.com |
| Brand Name | Supermicro |
| Product Model | X11SCA |
| Product Name | X11SCA Workstation Motherboard |
| Packaged Quantity | 1 |
| Package Type | Bulk |
| Product Type | Workstation Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C246 |
| Total Processor Supported | 1 |
| Processor Socket | Socket H4 LGA-1151 |
| Processor Supported | Celeron,Core i3,Pentium,Xeon |
| Memory | |
| Number of Memory Slots | 4 |
| Memory Form Factor | DIMM,UDIMM |
| Maximum Memory Supported | 64 GB |
| Memory Speed Supported | 2666 MHz |
| Memory Technology | DDR4 SDRAM |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 0,1,5,10 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| I/O Expansions | |
| Total Number of Expansion Slots | 5 |
| Total Number of PCI Express Slots | 4 |
| Number of PCI Express x1 Slots | 1 |
| Number of PCI Express x4 Slots | 1 |
| Number of PCI Express x16 Slots | 2 |
| Interfaces/Ports | |
| Total Number of USB Ports | 4 |
| Number of USB 3.1 Ports | 4 |
| HDMI | Yes |
| DisplayPort | Yes |
| DVI | Yes |
| Onboard Interfaces | |
| Number of SATA Interfaces | 8 |
| Number of M.2 Interfaces | 2 |
| Total Number of Onboard USB Ports | 6 |
| Number of Onboard USB 3.1 Ports | 4 |
| Physical Characteristics | |
| Form Factor | ATX |
| Width | 12" (304.80 mm) |
| Depth | 9.60" (243.84 mm) |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 1 Year |
[/custom-specifications]
