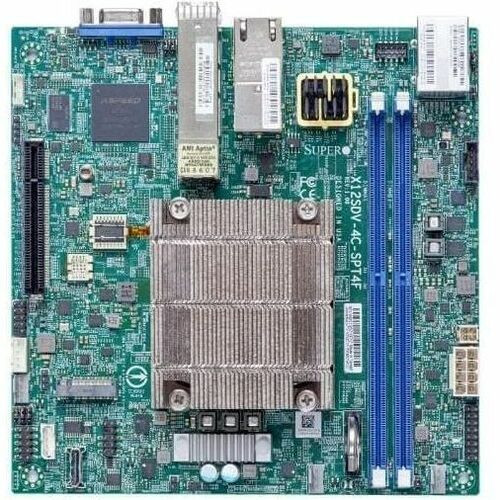

Supermicro X12SDV SPT4F Mini ITX Server Motherboard Intel Chipset Socket BGA 2227 Xeon D Support 128 GB DDR4 MBD-X12SDV-4C-SPT4F-O
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- X12SDV-4C-SPT4F Server Motherboard
- 1 x 6CM ATX Power Signal Cable
- 1 x COM Cable 20cm
- 1 x Standard I/O Shield
- 1 x 50CM OCuLink to 4x SATA Cable
- 1 x 55CM OCuLink to U.2 Cable with Molex Power Header
- 1 x Motherboard Quick Reference Guide
Marketing Information:
Supermicro motherboards support the latest generation Intel and AMD processors, memories and offer the most advanced technologies in the IT field - NVMe, M.2, 10GbE network ports. Thanks to their high scalability and a wide choice of form factors, the boards can fulfill the needs of even the most demanding customers. Supermicro offers the broadest selection of servers designed for industrial use, which is reflected in the overall quality of the boards. Materials that guarantee a long lifespan are used for manufacturing Supermicro motherboards, thanks to which a minimal failure rate is achieved. Supermicro motherboards go through a generational exchange approximately once every seven years, which guarantees long support by the manufacturer. Each Supermicro motherboard also allows free installation of specialized software for basic system monitoring.
The purchase of NBD warranty of your own choice is a matter of course, which minimizes service outages even in cases that cannot be predicted. Contact our sales department for more information. Standard NBD warranties are offered for 3 or 5 years.
Chipset Manufacturer: Intel
Total Processor Supported: 1
Processor Socket: Socket BGA-2227
Processor Generation Supported: 1st Gen
Processor Supported: Xeon D
Number of Memory Slots: 2
Memory Form Factor: DIMM,RDIMM,UDIMM
Maximum Memory Supported: 128 GB
Memory Speed Supported: 2933 MHz,2666 MHz,2400 MHz
Memory Technology: DDR4 SDRAM
Error Checking: ECC
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0,1,5,10
Onboard Video: CPU Dependent Video
Graphics Controller Model: AST2600
Gigabit Ethernet: Yes
10Gigabit Ethernet: Yes
Total Number of Expansion Slots: 2
Total Number of PCI Express Slots: 2
Number of PCI Express x4 Slots: 1
Number of PCI Express x8 Slots: 1
PCI Express Standard: PCI Express 3.0,PCI Express 4.0
Total Number of USB Ports: 2
VGA: Yes
HDMI: No
DVI: No
Number of Network (RJ-45) Ports: 2
Number of SATA Interfaces: 4
Number of M.2 Interfaces: 1
Total Number of Onboard USB Ports: 2
Form Factor: Mini ITX
Width: 6.75" (171.50 mm)
Depth: 6.75" (171.50 mm)
Weight (Approximate): 4.41 lb (2000 g)
Package Contents:
Environmental Compliance: Taiwan Restriction of Hazardous Substances (Taiwan RoHS),Restriction of Hazardous Substances (RoHS)
Limited Warranty: 36 Month
- Compatible Xeon D processor lets you perform all your computational tasks at a swift pace
- DDR4 SDRAM compatible slot - Allows the memory to operate at an effective bus speed while using minimal power, resulting in an optimal computer performance and improved memory heat dissipation
- RAID supported levels provide data reliability and fault tolerance
- Mini ITX form factor builds a perfect symmetry of hardware components needed in media server or NAS box
[custom-specifications]
| Specifications | |
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | MBD-X12SDV-4C-SPT4F-O |
| Manufacturer Website Address | http://www.supermicro.com |
| Brand Name | Supermicro |
| Product Model | X12SDV-4C-SPT4F |
| Product Name | X12SDV-4C-SPT4F Server Motherboard |
| Packaged Quantity | 1 |
| Package Type | Retail |
| Product Type | Server Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Total Processor Supported | 1 |
| Processor Socket | Socket BGA-2227 |
| Processor Generation Supported | 1st Gen |
| Processor Supported | Xeon D |
| Memory | |
| Number of Memory Slots | 2 |
| Memory Form Factor | DIMM,RDIMM,UDIMM |
| Maximum Memory Supported | 128 GB |
| Memory Speed Supported | 2933 MHz,2666 MHz,2400 MHz |
| Memory Technology | DDR4 SDRAM |
| Error Checking | ECC |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 0,1,5,10 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Graphics Controller Model | AST2600 |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| 10Gigabit Ethernet | Yes |
| I/O Expansions | |
| Total Number of Expansion Slots | 2 |
| Total Number of PCI Express Slots | 2 |
| Number of PCI Express x4 Slots | 1 |
| Number of PCI Express x8 Slots | 1 |
| PCI Express Standard | PCI Express 3.0,PCI Express 4.0 |
| Interfaces/Ports | |
| Total Number of USB Ports | 2 |
| VGA | Yes |
| HDMI | No |
| DVI | No |
| Number of Network (RJ-45) Ports | 2 |
| Onboard Interfaces | |
| Number of SATA Interfaces | 4 |
| Number of M.2 Interfaces | 1 |
| Total Number of Onboard USB Ports | 2 |
| Physical Characteristics | |
| Form Factor | Mini ITX |
| Width | 6.75" (171.50 mm) |
| Depth | 6.75" (171.50 mm) |
| Weight (Approximate) | 4.41 lb (2000 g) |
| Miscellaneous | |
| Package Contents |
|
| Environmental Compliance | Taiwan Restriction of Hazardous Substances (Taiwan RoHS),Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 36 Month |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Additional-pdf1
Additional-pdf2
[/custom-user-manual]
