Synology DS723+ DiskStation SAN/NAS Storage System - AMD Ryzen R1600 Dual-core - 2 GB DDR4 - 2-Bay - Gigabit Ethernet - Desktop
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the DS723+ is an AMD Ryzen R1600 dual-core processor that delivers efficient performance for storage operations and light computational tasks. The system includes 2 GB of DDR4 SDRAM as standard memory, supporting smooth operation of the DSM operating system and installed applications.
Storage connectivity is handled through Serial ATA controllers with support for two 2.5" or 3.5" drives. The system supports multiple RAID configurations including RAID 0, RAID 1, Basic, Hybrid RAID, and JBOD, providing data protection and performance optimization options.
This section brings together practical product details such as Number of Hard Drives Supported, Number of Solid State Drive Supported, Processor Manufacturer, Processor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The DS723+ offers a balanced combination of processing capability and storage flexibility in a compact desktop form factor. Its support for multiple RAID configurations provides data protection options suitable for different use cases and risk tolerances.
Flexible Storage Configuration
Support for both HDD and SSD drives allows for performance-optimized storage setups, while multiple RAID options enable data protection strategies from basic mirroring to striped performance configurations.
- 2 drive bays for HDD/SSD
- RAID 0, 1, Basic, Hybrid, JBOD
- Serial ATA controller
Comprehensive Connectivity
Dual Gigabit Ethernet ports support link aggregation for increased throughput, while USB 3.2 Gen 1 and eSATA ports provide expansion options for additional storage or peripheral devices.
- 2x Gigabit Ethernet
- USB 3.2 Gen 1
- eSATA support
Deployment / Use Cases
The DS723+ is well-suited for small office environments requiring centralized file storage and backup solutions. Its compact size makes it ideal for locations with limited space, while its processing capability supports basic business applications and media serving.
Common deployment scenarios include departmental file servers, backup destinations for workstations and servers, and media libraries for small creative teams. The system's protocol support (SMB, AFP, NFS, FTP, iSCSI) ensures compatibility with diverse client environments including Windows, macOS, and Linux systems.
Small Business File Server
Provides centralized storage for document sharing, collaborative work, and automated backups with user access controls and versioning capabilities.
Media Storage & Streaming
Serves as a media library for photos, videos, and music with streaming capabilities to multiple devices through supported applications.

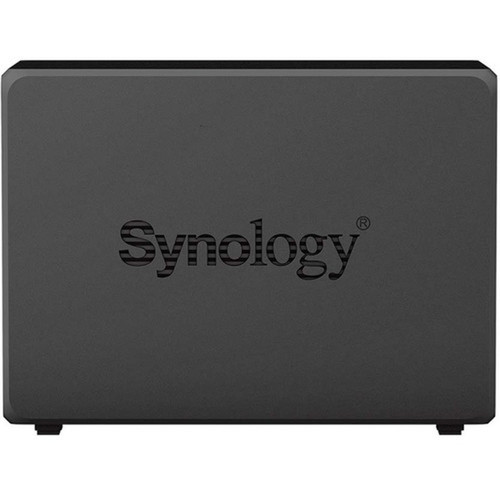

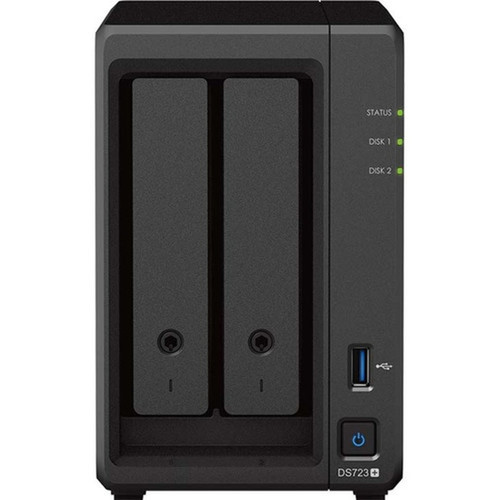

Physical Profile
The DS723+ features a compact desktop form factor measuring 6.54" (166 mm) in height, 4.17" (106 mm) in width, and 8.78" (223 mm) in depth. With an approximate weight of 3.33 lb (1510 g), the unit is easily portable and fits comfortably on desks, shelves, or in small server cabinets.
The desktop design requires no rack mounting hardware and operates quietly in office environments. The compact footprint makes efficient use of space while providing adequate ventilation for continuous operation.
- Width
- 4.17" (106 mm)
- Depth
- 8.78" (223 mm)
- Height
- 6.54" (166 mm)
- Weight
- 3.33 lb (1510 g)
Highlights
- AMD Ryzen R1600 dual-core processor for responsive storage performance
- 2 GB DDR4 SDRAM standard memory
- 2 drive bays supporting both HDD and SSD storage
- Multiple RAID configurations (0, 1, Basic, Hybrid RAID, JBOD)
- Dual Gigabit Ethernet ports for network connectivity
- USB 3.2 Gen 1 port for peripheral expansion
- eSATA support for additional storage devices
- Comprehensive protocol support including SMB, AFP, NFS, FTP, iSCSI
- Compact desktop form factor (6.54" H × 4.17" W × 8.78" D)
- Synology DiskStation Manager (DSM) software for intuitive management
Specifications
| Specifications | |
|---|---|
| Manufacturer | Synology, Inc |
| Manufacturer Part Number | DS723+ |
| Brand Name | Synology |
| Product Line | DiskStation |
| Product Model | DS723+ |
| Product Name | DiskStation DS723+ SAN/NAS Storage System |
| Packaged Quantity | 1 |
| Product Type | SAN/NAS Storage System |
| Storage | |
| Number of Hard Drives Supported | 2 |
| Number of Solid State Drive Supported | 2 |
| Processor & Chipset | |
| Processor Manufacturer | AMD |
| Processor Type | Ryzen |
| Processor Model | R1600 |
| Processor Core | Dual-core (2 Core) |
| Memory | |
| Standard Memory | 2 GB |
| Memory Technology | DDR4 SDRAM |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 2 |
| Number of 2.5"/3.5" Bays | 2 |
| Controllers | |
| Controller Type | Serial ATA |
| RAID Supported | Yes |
| RAID Levels | 0, 1, Basic, Hybrid RAID, JBOD |
| Interfaces/Ports | |
| Total Number of USB Ports | 1 |
| Number of USB 3.2 Gen 1 Ports | 1 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 2 |
| eSATA | Yes |
| Management & Protocols | |
| Protocols | SMB,AFP,NFS,FTP,WEBDAV,CalDAV,iSCSI,Telnet,SSH,SNMP,PPTP,L2TP,NTFS,LDAP,SSL/TLS,SFTP,RSync,HTTPS,TFTP,DNS |
| Physical Characteristics | |
| Height | 6.54" (166 mm) |
| Width | 4.17" (106 mm) |
| Depth | 8.78" (223 mm) |
| Form Factor | Desktop |
| Weight (Approximate) | 3.33 lb (1510 g) |
User Manual
FAQ
What processor does the Synology DS723+ use?
The DS723+ is powered by an AMD Ryzen R1600 dual-core processor. This processor provides efficient performance for storage operations, data transfer tasks, and running the DiskStation Manager operating system with installed applications.
How much memory is included with the DS723+?
The system comes with 2 GB of DDR4 SDRAM as standard memory. This memory supports the DSM operating system and provides sufficient resources for file serving, backup operations, and running basic applications simultaneously.
How many drives can the DS723+ support?
The DS723+ has two drive bays that support both 2.5" and 3.5" hard drives or solid-state drives. This allows for flexible storage configurations using either traditional spinning media or faster SSD storage, or a combination of both.
What RAID configurations does the DS723+ support?
The system supports RAID 0 (striping for performance), RAID 1 (mirroring for data protection), Basic (individual drives), Hybrid RAID (Synology's proprietary RAID system), and JBOD (Just a Bunch of Disks). This range of options allows users to choose between performance optimization, data protection, or simple storage expansion.
What network connectivity options are available?
The DS723+ features two Gigabit Ethernet (RJ-45) ports that support link aggregation for increased throughput. These ports provide reliable network connectivity for file sharing, backup operations, and remote access to stored data and applications.
What expansion ports does the DS723+ include?
The system includes one USB 3.2 Gen 1 port for connecting external storage devices, printers, or other peripherals. It also features eSATA support for connecting additional external storage enclosures to expand capacity beyond the internal drive bays.
What processor or CPU is listed for this server or storage platform?
This product uses the AMD processor for everyday performance and multitasking.
How much memory is installed?
It includes 2 GB of memory to support responsive multitasking and daily workloads.
