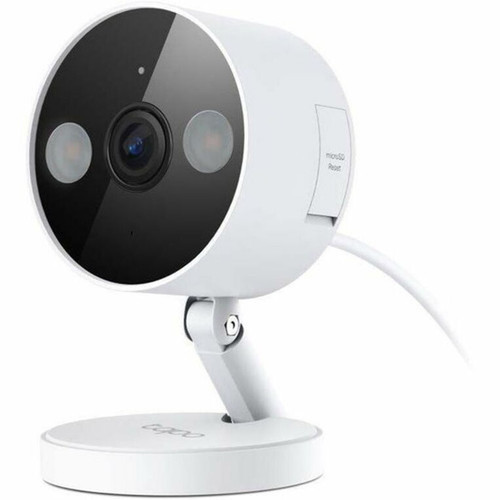

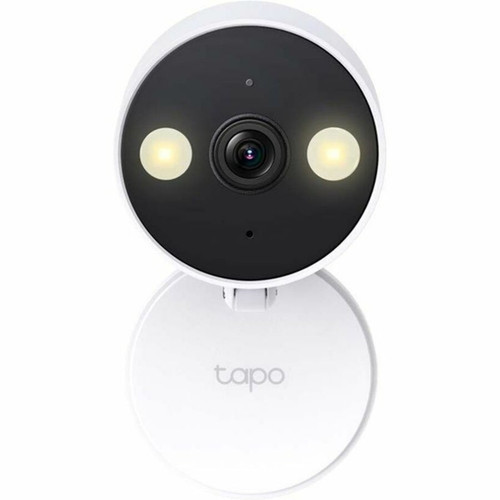

Tapo TAPO C120 4MP Indoor/Outdoor 2K Wi-Fi Security Camera - Color Night Vision 30 ft - IP66 Weatherproof - 2560 x 1440 - H. 264
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The camera uses a 1/2.9-inch CMOS image sensor and a fixed 3.2 mm lens with an f/1.65 aperture, optimizing light capture for sharp daytime and night-time imagery. It records in H.264 format at up to 20 frames per second, balancing video quality with efficient bandwidth and storage usage. Storage is handled via memory card, and the camera supports RTSP, ONVIF, and standard network protocols for integration with NVRs or video management systems.
Wireless connectivity through Wi-Fi eliminates the need for Ethernet cabling, simplifying installation. Remote management allows monitoring and configuration from mobile devices or computers. The camera includes a built-in speaker and microphone for two-way audio, wide dynamic range to handle challenging lighting, and day/night operation with automatic IR cut-off.
This section brings together practical product details such as HD Recording, Recording Formats, Night Vision, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The Tapo C120 combines high-resolution imaging, robust construction, and smart features into a versatile security solution. Its color night vision provides more identifiable footage compared to traditional monochrome infrared, while the IP66 rating guarantees durability in outdoor installations. AI analytics reduce false alarms by distinguishing between people, vehicles, and other motion, focusing alerts on relevant events.
Flexible Mounting Options
Magnetic, table, and ceiling mounts offer adaptable placement without permanent modifications. The included metal plate and adhesive anchors support quick setup on various surfaces.
- Magnetic attachment for easy repositioning
- Ceiling mount for overhead coverage
- Table stand for temporary placement
Energy-Efficient Operation
With a maximum power draw of 4.70 watts and compliance with the Energy-related Products Directive (ErP), the camera minimizes electricity usage for cost-effective 24/7 operation.
- Low power consumption
- ErP compliance
- 5V DC input
Deployment / Use Cases
This camera is ideal for monitoring residential properties, small offices, retail spaces, or warehouses where wireless convenience and weather resistance are priorities. Its compact size and multiple mounting options allow discreet installation under eaves, on walls, or indoors near windows.
Use the C120 for perimeter security to detect intruders, for driveway surveillance to capture license plates, or for indoor baby or pet monitoring with two-way audio. The ONVIF and RTSP support enables integration into existing security systems, while cloud or local storage via memory card provides flexible recording options. Voice assistant compatibility adds hands-free control for viewing feeds or receiving alerts.
Outdoor Perimeter Security
Deploy along fences, gates, or entry points with the IP66 rating protecting against rain and dust. Color night vision enhances identification of persons or vehicles after dark.
Indoor Monitoring
Place in living rooms, nurseries, or offices using the table mount. The built-in microphone and speaker enable communication, while motion detection sends alerts for unauthorized access.
Physical Profile
Measuring 2.52 x 2.65 x 2.26 inches (64 x 67.40 x 57.40 mm) and weighing approximately 3.53 ounces (100 grams), the C120 has a compact, unobtrusive design. Its white housing blends with most decors, and the magnetic mount allows quick angle adjustments. The included 3-meter Type-C cable and organizers simplify power routing, while the detaching pin aids maintenance.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 2.52" (64 mm), 2.65" (67.40 mm), 2.26" (57.40 mm), 3.53 oz (100 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 2.65" (67.40 mm)
- Depth
- 2.26" (57.40 mm)
- Height
- 2.52" (64 mm)
- Weight
- 3.53 oz (100 g)
- Length
- 3.2 mm (0.12")
What's in the Box
The package includes all necessary components for immediate setup and installation.
Highlights
- 4-megapixel resolution for detailed 2K video at 2560 x 1440
- Color and infrared night vision up to 30 ft (9.14 m)
- IP66 weatherproof rating for indoor/outdoor use
- Wi-Fi connectivity with remote management
- AI-powered human and vehicle detection
- 120-degree diagonal field of view
- Supports Google Assistant and Alexa
- Magnetic, table, and ceiling mounting options
- Built-in speaker and microphone for two-way audio
- Energy-efficient with 4.70W max power consumption
Specifications
| Specifications | |
|---|---|
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Manufacturer Part Number | Tapo C120 |
| Brand Name | Tapo |
| Product Model | C120 |
| Product Name | Indoor/Outdoor Home Security Wi-Fi Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | 2K |
| Night Vision | Yes |
| Night Vision Distance | 30 ft (9.14 m) |
| Night Vision Type | Infrared/Color |
| Virtual Assistant Supported | Google Assistant,Alexa |
| AI-powered | Yes |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Image Sensor Size | 1/2.9" |
| Color Supported | Color |
| Field of View | 120° (Diagonal), 103° (Horizontal), 55° (Vertical) |
| Effective Camera Resolution | 4 Megapixel |
| Video | |
| Video Formats | H.264 |
| Maximum Video Resolution | 2560 x 1440 |
| Maximum Frame Rate | 20 fps |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 3.2 mm (0.12") |
| Lens Included | Yes |
| Maximum Aperture | f/1.65 |
| Network & Communication | |
| Connectivity Technology | Wireless |
| Remote Management | Yes |
| Wireless Technology | Wi-Fi |
| Protocols | RTSP,ONVIF,TCP/IP,DHCP,ICMP,DNS,NTP,HTTPS,TCP,UDP,SSL/TLS |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| USB | Yes |
| Power Description | |
| Maximum Power Consumption | 4.70 W |
| Input Voltage | 5 V DC |
| Power Source Type | DC |
| Physical Characteristics | |
| Mount Type | Magnetic Mount,Table Mount,Ceiling Mount |
| Durability | Weather Proof,Weather Resistant,Rain Resistant,Water Resistant,Snow Resistant,Dust Resistant |
| Height | 2.52" (64 mm) |
| Width | 2.65" (67.40 mm) |
| Depth | 2.26" (57.40 mm) |
| Weight (Approximate) | 3.53 oz (100 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -4°F (-20°C) |
| Maximum Operating Temperature | 113°F (45°C) |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Features | Day/Night,Built-in IR LED,AI Analytics,Built-in Speaker,Microphone In,Motion Detection,Human Detection,Vehicle Detection,Alarm Triggering,Noise Detection,Wide Dynamic Range |
| Indoor/Outdoor | Indoor/Outdoor |
| Package Contents | Indoor/Outdoor Home Security Wi-Fi Camera USB Power Adapter Quick Start Guide Mounting Screws Mounting Template Metal Plate 3M Adhesive Mounting Anchors 3-Meter Type-C Wire Cable Organizers Detaching Pin |
| Ingress Protection Rating | IP66 |
| Environmentally Friendly | Yes |
| Energy Efficiency Compliance | Energy-related Products Directive (ErP) |
User Manual
FAQ
What is the resolution and video quality of the Tapo C120?
The Tapo C120 captures 4-megapixel video at a maximum resolution of 2560 x 1440 (2K), providing sharp, detailed footage for surveillance. It uses H.264 compression to balance quality with storage efficiency and records at up to 20 frames per second for smooth motion.
How does the night vision perform in low-light conditions?
The camera features both infrared and color night vision, illuminating scenes up to 30 feet (9.14 meters) away. Infrared mode provides clear monochrome images in darkness, while color night vision enhances identification with visible light, depending on ambient conditions.
Is this camera suitable for outdoor installation?
Yes, the Tapo C120 is rated IP66 for weather resistance, protecting against rain, snow, dust, and water jets. It operates in temperatures from -4°F to 113°F (-20°C to 45°C), making it reliable for year-round outdoor use in various climates.
What mounting options are included with the camera?
The camera supports magnetic, table, and ceiling mounting. The package includes a metal plate for magnetic attachment, screws and anchors for permanent installation, and a table stand. This flexibility allows placement on walls, under eaves, or on flat surfaces without drilling.
Does the Tapo C120 support smart home integration?
Yes, it works with Google Assistant and Alexa for voice control, enabling commands to view camera feeds or receive alerts. It also supports RTSP and ONVIF protocols for integration with network video recorders and third-party security software.
What storage options are available for recorded footage?
Footage can be stored locally on a memory card inserted into the camera. The camera also supports cloud storage through Tapo's services and is compatible with NVRs via RTSP/ONVIF for centralized recording and management.
What storage is included?
The system includes Memory Card of storage for applications, files, and everyday business data.
