Tapo TAPO C510W Outdoor 2K 3MP Wi-Fi Security Camera - 98ft Night Vision - IP65360° View - Two-Way Audio
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview

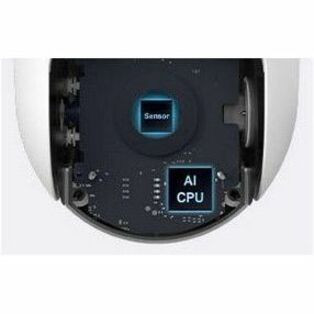

The C510W utilizes a 1/2.8" CMOS image sensor paired with a fixed f/2.0 aperture lens to deliver sharp 2304 x 1296 resolution video at up to 15 frames per second. The H.264 video compression ensures efficient storage without sacrificing quality, while the dual-band Wi-Fi connectivity supports reliable wireless transmission.
Advanced imaging capabilities include color night vision with infrared illumination extending to 98 feet, allowing for detailed identification even in complete darkness. The camera's two-way audio system features both a built-in microphone and speaker for real-time communication, while the physical privacy mode provides an additional layer of security when the camera is not in active use.
This section brings together practical product details such as HD Recording, Recording Formats, Night Vision, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The Tapo C510W combines advanced security features with practical installation flexibility to deliver a comprehensive surveillance solution. Its smart detection algorithms minimize false alerts by accurately identifying human and vehicle movement, while activity zones allow for customized monitoring of specific areas.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Smart Detection System, Enhanced Security Features.
Smart Detection System
Advanced algorithms distinguish between humans, vehicles, and general motion to reduce false alerts and provide more accurate notifications.
- Human Detection
- Vehicle Detection
- Motion Detection
- Sound Detection
Enhanced Security Features
Multiple layers of protection including visual and audible deterrents plus physical privacy controls.
- Sound and Light Alarm
- Two-Way Audio
- Physical Privacy Mode
- Privacy Masking
Deployment / Use Cases
The C510W is ideally suited for perimeter security applications where comprehensive coverage and weather resistance are essential. Its 360° pan capability makes it particularly effective for monitoring driveways, entry points, and outdoor storage areas where a single camera needs to cover multiple angles.
Small business owners can deploy the C510W for after-hours surveillance of storefronts, parking lots, and loading docks. The camera's compatibility with Alexa and Google Assistant enables convenient voice control integration, while the remote management capabilities allow for monitoring from any location with internet access.
Residential Security
Protect home perimeters, driveways, and backyard areas with comprehensive coverage and smart detection that reduces false alerts from pets or wildlife.
Small Business Monitoring
Secure retail storefronts, office entrances, and inventory storage areas with reliable outdoor surveillance that withstands various weather conditions.
Physical Profile
Measuring 4.90" wide x 4.80" deep x 3.50" high (124.46 x 121.92 x 88.90 mm), the C510W features a compact design that integrates discreetly into outdoor environments. The camera supports multiple mounting options including wall, ceiling, and pole installations, with all necessary hardware included for straightforward setup. The durable construction maintains reliable operation across a wide temperature range while the IP65 rating ensures protection against environmental elements.
- Width
- 4.90" (124.46 mm)
- Depth
- 4.80" (121.92 mm)
- Height
- 3.50" (88.90 mm)
- Length
- 3.9 mm (0.15")
What's in the Box
The C510W comes complete with all components needed for immediate installation and operation.
Highlights
- 3-megapixel 2K resolution for clear, detailed video footage
- 98-foot infrared night vision with color capability
- 360° horizontal pan with 130° vertical tilt coverage
- IP65 weatherproof rating for outdoor durability
- Two-way audio with built-in microphone and speaker
- Smart detection for humans, vehicles, and motion
- Wi-Fi connectivity with remote management
- Multiple mounting options: wall, ceiling, or pole
- Compatible with Alexa and Google Assistant
- Physical privacy mode for added security
Specifications
| Specifications | |
|---|---|
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Manufacturer Part Number | TAPOC510W |
| Brand Name | Tapo |
| Product Model | C510W |
| Product Name | Outdoor Pan/Tilt Security Wi-Fi Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | 2K |
| Night Vision | Yes |
| Night Vision Distance | 98 ft (29.87 m) |
| Night Vision Type | Infrared/Color |
| Virtual Assistant Supported | Alexa,Google Assistant |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Image Sensor Size | 1/2.8" |
| Color Supported | Color |
| Field of View | Horizontal: 360°, Vertical: 130° |
| Effective Camera Resolution | 3 Megapixel |
| Video | |
| Video Formats | H.264 |
| Maximum Video Resolution | 2304 x 1296 |
| Maximum Frame Rate | 15 fps |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 3.9 mm (0.15") |
| Lens Included | Yes |
| Maximum Aperture | f/2 |
| Network & Communication | |
| Connectivity Technology | Wireless |
| Remote Management | Yes |
| Wireless Technology | Wi-Fi |
| Protocols | TCP/IP,ICMP,DNS,HTTPS,TCP,UDP |
| Storage | |
| Storage Type | Memory Card |
| Power Description | |
| Input Voltage | 100 V AC,240 V AC,12 V DC |
| Power Source Type | DC |
| Physical Characteristics | |
| Mount Type | Wall Mount,Ceiling Mount,Pole Mount |
| Durability | Water Resistant,Dust Resistant,Weather Proof |
| Height | 3.50" (88.90 mm) |
| Width | 4.90" (124.46 mm) |
| Depth | 4.80" (121.92 mm) |
| Environmental Conditions | |
| Minimum Operating Temperature | -22°F (-30°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Features | Human Detection,Vehicle Detection,Motion Detection,Day/Night,Ingress Protection,Built-in Microphone,Built-in Speaker,Alarm Triggering,Sound Detection,Privacy Masking |
| Indoor/Outdoor | Outdoor |
| Package Contents | Tapo C510W Camera DC Power Adapter Mounting Anchors Mounting Screws Bracket Screws Mounting Template Waterproof Seal Mounting Bracket Quick Start Guide |
| Ingress Protection Rating | IP65 |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
User Manual
FAQ
What resolution does the Tapo C510W camera record at?
The Tapo C510W records at 2K resolution with 3 megapixels, specifically 2304 x 1296 pixels. This provides clear, detailed video footage that captures important details for identification purposes, with H.264 compression ensuring efficient storage without compromising image quality.
How far does the night vision reach on this camera?
The C510W features infrared night vision that extends to 98 feet (29.87 meters) with color capability. This allows the camera to capture detailed images even in complete darkness, making it effective for monitoring large outdoor areas during nighttime hours.
Is the Tapo C510W suitable for outdoor installation?
Yes, the C510W is specifically designed for outdoor use with an IP65 weatherproof rating that protects against rain, dust, and extreme temperatures from -22°F to 140°F (-30°C to 60°C). It includes waterproof seals and mounting hardware for secure outdoor installation on walls, ceilings, or poles.
What smart detection features does this camera include?
The C510W includes advanced detection algorithms that distinguish between humans, vehicles, and general motion. This reduces false alerts by filtering out irrelevant movement, while activity zones allow you to define specific areas for monitoring. The camera also features sound detection and privacy masking capabilities.
Can I communicate through this security camera?
Yes, the C510W features two-way audio with both a built-in microphone and speaker. This allows for real-time communication through the camera, enabling you to speak with visitors, deter intruders, or listen to audio from the monitored area remotely through the companion app.
What mounting options are available for this camera?
The C510W supports multiple installation methods including wall mount, ceiling mount, and pole mount configurations. The package includes all necessary hardware: mounting anchors, screws, template, bracket, and waterproof seal for flexible installation in various outdoor locations.
What storage is included?
The system includes Memory Card of storage for applications, files, and everyday business data.
