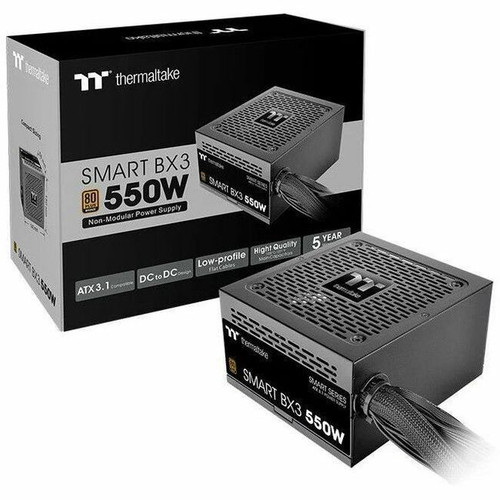

Thermaltake Smart Internal Power Supply Multi Rail DC Output Reliable Desktop Input AC V PS-SPD-0550NNFABU-3
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Specification Compliance: ATX 3.1
Efficiency: 85%
Power Factor Correction (PFC): Active
Number of Fans: 1
Protection Type: Over Current,Over Voltage,Under Voltage,Over Power,Over Temperature,Short Circuit
Modular: No
Input Voltage: 120 V AC,230 V AC
Number of +12V Rails: 1
Output Voltage: 3.3 V DC,5 V DC,12 V DC,-12 V DC,5 V SB
Output Voltage Detail: 3.3 V DC @ 16 A,5 V DC @ 16 A,-12 V DC @ 0.3 A,5 V DC @ 3 A,12 V DC @ 45.85 A
Output Current: 16 A,45.85 A,300 mA,3 A
Output Power: 550 W
Form Factor: Internal
Height: 3.39" (86 mm)
Width: 5.91" (150 mm)
Depth: 5.51" (140 mm)
Minimum Operating Temperature: 41°F (5°C)
Maximum Operating Temperature: 113°F (45°C)
Environmentally Friendly: Yes
Energy Efficiency Certification: 80 Plus Bronze
Limited Warranty: 5 Year
[custom-specifications]
| Specifications | |
| Manufacturer | Thermaltake Technology Co., Ltd |
| Manufacturer Part Number | PS-SPD-0550NNFABU-3 |
| Manufacturer Website Address | http://www.thermaltake.com |
| Brand Name | Thermaltake |
| Product Line | Smart BX3 |
| Product Model | SPD-0550AH2NLB-3 |
| Product Name | Smart BX3 SPD-0550AH2NLB-3 550W Power Supply |
| Product Type | Power Supply |
| Technical Information | |
| Specification Compliance | ATX 3.1 |
| Efficiency | 85% |
| Power Factor Correction (PFC) | Active |
| Number of Fans | 1 |
| Protection Type | Over Current,Over Voltage,Under Voltage,Over Power,Over Temperature,Short Circuit |
| Modular | No |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Number of +12V Rails | 1 |
| Output Voltage | 3.3 V DC,5 V DC,12 V DC,-12 V DC,5 V SB |
| Output Voltage Detail | 3.3 V DC @ 16 A,5 V DC @ 16 A,-12 V DC @ 0.3 A,5 V DC @ 3 A,12 V DC @ 45.85 A |
| Output Current | 16 A,45.85 A,300 mA,3 A |
| Output Power | 550 W |
| Physical Characteristics | |
| Form Factor | Internal |
| Height | 3.39" (86 mm) |
| Width | 5.91" (150 mm) |
| Depth | 5.51" (140 mm) |
| Environmental Conditions | |
| Minimum Operating Temperature | 41°F (5°C) |
| Maximum Operating Temperature | 113°F (45°C) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Energy Efficiency Certification | 80 Plus Bronze |
| Warranty | |
| Limited Warranty | 5 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Additional-pdf1
[/custom-user-manual]
