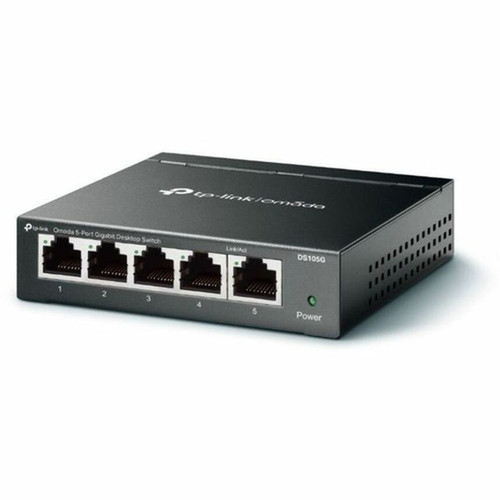

TP-LINK DS105G Omada 5-Port Gigabit Desktop Switch - Layer 2 - Unmanaged - Fanless - Metal Case
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This Layer 2 switch supports essential networking protocols including IEEE 802.3x flow control for reliable data transfer, 802.1p/DSCP QoS for traffic prioritization, and IGMP Snooping for efficient multicast traffic management. The five 10/100/1000 Mbps RJ45 ports feature Auto-MDI/MDIX, eliminating the need for crossover cables and simplifying installation.
With a compact footprint measuring 3.90" wide by 3.90" deep by 1" high, the DS105G fits easily on desks or mounts securely to walls using standard hardware. The switch operates on 5V DC power via included adapter and consumes only 3.10 watts under typical load conditions.
Relevant factors for this section include Features, Total Number of Network Ports, Network (RJ-45), Port/Expansion Slot Details. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The DS105G combines enterprise-grade durability with consumer-friendly simplicity, offering robust connectivity without complex configuration requirements. Its metal construction provides superior heat dissipation and physical protection compared to plastic alternatives, while the completely silent fanless design ensures zero noise pollution in quiet environments.
Zero-Configuration Networking
Simply connect devices to any port—the switch automatically negotiates optimal speed and duplex settings while Auto-MDI/MDIX handles cable type detection. No software installation, management interfaces, or technical expertise required for basic operation.
- Plug-and-play deployment
- Auto-speed negotiation 10/100/1000 Mbps
- Auto-MDI/MDIX crossover detection
Enhanced Network Reliability
IEEE 802.3x flow control prevents packet loss during congestion, while loop detection helps identify and mitigate network loops that can cause broadcast storms and connectivity disruptions.
- Flow control for congestion management
- Loop detection for network stability
- 802.1p QoS for traffic prioritization
Deployment / Use Cases
Ideal for expanding wired network connectivity in environments where simplicity and reliability take priority over advanced management features. The DS105G serves as an excellent backbone for small office networks, connecting workstations to shared resources like network-attached storage and printers with full Gigabit throughput.
Home office users benefit from the switch's compact size and silent operation, allowing discreet placement near entertainment centers or home workstations. Educational settings and retail environments appreciate the wall-mount capability for securing equipment out of reach while maintaining clean cable management.
Small Office Network Expansion
Connect multiple computers, VoIP phones, and network printers in a shared workspace with guaranteed Gigabit speeds between all connected devices. The metal housing withstands commercial environment wear while maintaining consistent performance.
Home Media & Gaming Setup
Eliminate wireless bottlenecks for gaming consoles, streaming devices, and media servers by establishing wired connections that deliver maximum bandwidth with minimal latency. The fanless design ensures no interference with audio equipment.
Physical Profile
The DS105G features a compact, square-profile design with dimensions of 3.90" × 3.90" × 1" (99.06 mm × 99.06 mm × 25.40 mm) that occupies minimal desk space. Four rubber feet provide stable desktop placement, while integrated wall-mount slots accept standard screws for vertical or horizontal mounting orientations.
The all-metal enclosure offers superior durability and heat dissipation compared to plastic alternatives, with a dark finish that blends discreetly into professional and residential environments. Front-panel LED indicators provide clear status visibility for power, link activity, and speed per port.
- Width
- 3.90" (99.06 mm)
- Depth
- 3.90" (99.06 mm)
- Height
- 1" (25.40 mm)
What's in the Box
Each DS105G switch ships complete with all necessary components for immediate deployment.
Package contents include Omada 5-Port Gigabit Desktop Switch Power Adapter Installation Guide, Omada 5-Port Gigabit Desktop Switch. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- 5 auto-negotiating Gigabit Ethernet ports (10/100/1000 Mbps)
- Plug-and-play operation with zero configuration required
- Layer 2 switching with 802.1p QoS and IGMP Snooping support
- Durable metal casing with fanless, silent operation
- Desktop or wall-mount placement flexibility
- IEEE 802.3x flow control for reliable data transfer
- Green Ethernet technology reduces power consumption
- Compact 3.90" × 3.90" × 1" footprint
- RoHS compliant for environmental safety
- Loop detection helps prevent network disruptions
Specifications
| Specifications | |
|---|---|
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Manufacturer Part Number | DS105G |
| Brand Name | TP-Link |
| Product Line | Omada |
| Product Model | DS105G |
| Product Name | Omada 5-Port Gigabit Desktop Switch |
| Product Type | Ethernet Switch |
| Technical Information | |
| Features | Fanless |
| Interfaces/Ports | |
| Total Number of Network Ports | 5 |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details | 5 x Gigabit Ethernet Network |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3i,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3x,IEEE 802.1p |
| Management & Protocols | |
| Manageable | No |
| Power Description | |
| Input Voltage | 5 V DC |
| Power Source | DC,Power Adapter |
| Power Consumption | 3.10 W |
| Physical Characteristics | |
| Product Material | Metal |
| Form Factor | Desktop,Wall Mountable |
| Height | 1" (25.40 mm) |
| Width | 3.90" (99.06 mm) |
| Depth | 3.90" (99.06 mm) |
| Miscellaneous | |
| Package Contents | Omada 5-Port Gigabit Desktop Switch Power Adapter Installation Guide |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
User Manual
FAQ
How many devices can I connect to this switch?
The DS105G provides five Gigabit Ethernet ports, allowing direct connection of up to five network devices such as computers, printers, NAS units, or gaming consoles. For additional connections, you can daisy-chain multiple switches or upgrade to a model with more ports.
Does this switch require any software or configuration?
No configuration is needed—the DS105G is an unmanaged switch that operates plug-and-play. Simply connect your devices using standard Ethernet cables, and the switch automatically negotiates optimal connection settings. There's no web interface, management software, or setup required for basic operation.
Can this switch be mounted on a wall?
Yes, the DS105G includes integrated wall-mount slots on its underside that accept standard screws. This allows secure vertical or horizontal mounting in network closets, behind desks, or in other space-constrained locations. The compact metal housing is specifically designed for both desktop and wall-mount deployment.
What Layer does this switch operate at?
This is a Layer 2 switch that operates at the data link layer of the OSI model. It uses MAC addresses to forward traffic between connected devices within the same network segment. Layer 2 functionality includes basic switching, VLAN support (via port-based VLANs), and traffic prioritization through 802.1p QoS.
Is this switch fanless and quiet?
Yes, the DS105G features a completely fanless design with passive cooling through its metal housing. This eliminates moving parts that can fail and ensures silent operation—making it ideal for noise-sensitive environments like offices, bedrooms, home theaters, or recording studios where fan noise would be disruptive.
What power requirements does this switch have?
The switch operates on 5V DC power supplied through the included power adapter. It consumes approximately 3.10 watts under typical load conditions, making it highly energy efficient. The Green Ethernet technology further reduces power consumption by adjusting energy usage based on cable length and link status.
