TP-LINK ER7206 SafeStream TL- Gigabit Multi-WAN VPN Router - 4 WAN Ports - 150K Device Capacity - Omada SDN
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This router features a sophisticated port arrangement with one Gigabit SFP WAN port, one standard Gigabit WAN port, two configurable Gigabit WAN/LAN ports, and one dedicated Gigabit LAN port. This flexible configuration enables bandwidth optimization through multi-WAN load balancing and failover protection.
Network capacity scales to support up to 150,000 associated client devices with concurrent connections for up to 700 active clients. The Gigabit Ethernet architecture ensures high-speed data transfer across all connected devices while maintaining network stability under heavy loads.
Relevant factors for this section include Total Number of Expansion Slots, Ethernet Technology. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages

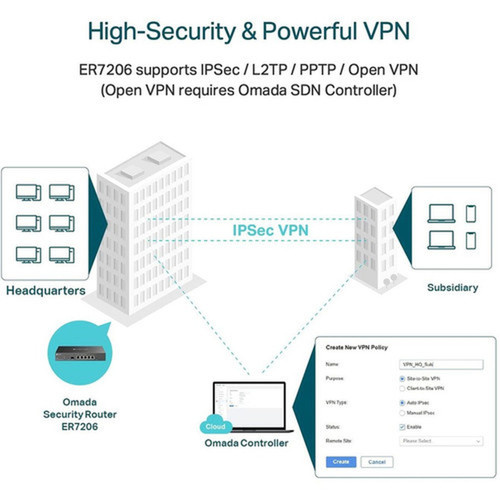

The TL-ER7206 delivers exceptional value through its combination of high-capacity networking, enterprise security features, and flexible management options. Businesses benefit from reliable VPN connectivity with support for 100 LAN-to-LAN IPsec tunnels plus 50 each of OpenVPN, L2TP, and PPTP connections.
Omada SDN Integration
Seamlessly integrates with TP-Link's Omada SDN ecosystem, allowing centralized management of gateways, access points, and switches through hardware controllers, software controllers, or cloud-based management platforms.
- Single-interface network control
- Multi-site management capability
- Standalone mode available
Advanced Security Suite
Comprehensive security features protect business networks with sophisticated firewall policies, Denial-of-Service (DoS) defense mechanisms, and granular filtering controls.
- IP/MAC/URL filtering
- Speed test functionality
- Real-time threat monitoring
Deployment / Use Cases
This router is ideally suited for small to medium-sized businesses requiring robust network infrastructure with multiple internet connections. The multi-WAN configuration enables bandwidth aggregation from different ISPs or dedicated connections for critical applications.
Educational institutions can leverage the high client capacity for campus-wide networking, while retail environments benefit from the secure VPN capabilities for connecting multiple store locations. Professional offices appreciate the Omada SDN integration for simplified network management across distributed work environments.
Relevant factors for this section include Total Number of Expansion Slots, Ethernet Technology. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Business Branch Connectivity
Connect remote offices securely with VPN tunneling while maintaining centralized control through cloud management interfaces.
High-Density Environments
Support large numbers of connected devices in hospitality, education, or corporate settings with the 150,000-device capacity.
Physical Profile

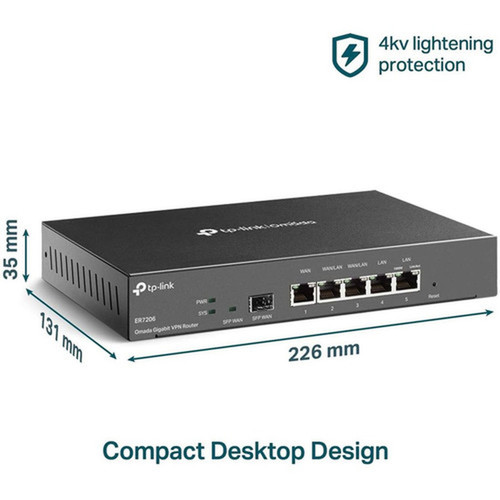

The compact rack-mountable design measures 8.90 inches wide by 5.20 inches deep by 1.40 inches high (226.06 × 132.08 × 35.56 mm), making it suitable for space-constrained network cabinets. The metal chassis provides durability while complying with RoHS environmental standards for reduced hazardous substances.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.40" (35.56 mm), 8.90" (226.06 mm), 5.20" (132.08 mm). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 8.90" (226.06 mm)
- Depth
- 5.20" (132.08 mm)
- Height
- 1.40" (35.56 mm)
What's in the Box
The package includes everything needed for immediate deployment of the router in your network environment.
Highlights
- Flexible 4-WAN port configuration with SFP support for bandwidth optimization
- Supports up to 150,000 associated client devices with 700 concurrent connections
- Omada SDN integration for centralized management of network devices
- Cloud access and mobile app for remote network management
- Advanced security features including firewall policies and DoS defense
- Supports 100 IPsec VPN tunnels plus 50 each of OpenVPN, L2TP, and PPTP
- 5-year limited warranty with 24/7 technical support
- Compact rack-mountable design with RoHS compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Manufacturer Part Number | ER7206 |
| Brand Name | TP-Link |
| Product Line | SafeStream |
| Product Model | TL-ER7206 |
| Product Name | SafeStream Gigabit Multi-WAN VPN Router |
| Product Type | Router |
| I/O Expansions | |
| Total Number of Expansion Slots | 1 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Physical Characteristics | |
| Height | 1.40" (35.56 mm) |
| Width | 8.90" (226.06 mm) |
| Depth | 5.20" (132.08 mm) |
| Miscellaneous | |
| Package Contents | SafeStream Gigabit Multi-WAN VPN Router Power Cord Quick Installation Guide |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
How many WAN ports does the TL-ER7206 router support?
The TL-ER7206 provides four WAN ports total: one Gigabit SFP WAN port, one standard Gigabit WAN port, and two configurable Gigabit WAN/LAN ports that can be set as additional WAN connections. This multi-WAN configuration enables load balancing and failover protection for business-critical internet connectivity.
What is the maximum number of devices this router can support?
This router can manage up to 150,000 associated client devices on the network, with support for up to 700 concurrent client connections. This high capacity makes it suitable for business environments with numerous connected devices, including offices, retail locations, and educational facilities.
What VPN protocols does this router support?
The router supports multiple VPN protocols including 100 LAN-to-LAN IPsec tunnels, 50 OpenVPN connections, 50 L2TP connections, and 50 PPTP connections. This comprehensive VPN support enables secure site-to-site and remote access connectivity for distributed business networks.
What security features are included with this router?
Security features include advanced firewall policies, Denial-of-Service (DoS) defense mechanisms, IP address filtering, MAC address filtering, URL filtering, and built-in speed test functionality. These enterprise-grade security measures help protect business networks from external threats and unauthorized access.
What is the warranty coverage for this router?
TP-Link provides a 5-year limited warranty for the TL-ER7206 router, backed by 24/7 technical support. The warranty covers manufacturing defects and ensures reliable performance for business networking applications throughout the coverage period.
What connectivity or interface options are available?
Connectivity options include Gigabit Ethernet, helping the product integrate into common office or home setups.
