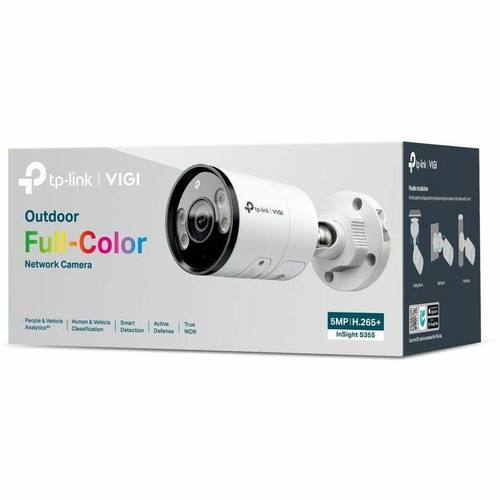

VIGI INSIGHT S355(2. 8MM) 5MP Outdoor Bullet Network Camera - 2880 x 1620 Resolution - 98. 43 ft Infrared/Color Night Vision - H. 265+ - IP67 - PoE/DC
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera delivers 5-megapixel resolution at a maximum frame rate of 30 fps, providing smooth, real-time surveillance footage. The CMOS sensor offers power-efficient operation and superior HD video quality compared to traditional CCD sensors. Video formats include H.265+, H.265, H.264, H.264+, H.264H, and H.265M, giving flexibility for various recording and streaming setups.
Network connectivity is wired Fast Ethernet with support for TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, SSL/TLS, FTP, SFTP, RTP, IPv4, IPv6, and ARP protocols. Remote management enables configuration and monitoring from any location. Storage options include memory card support for local recording, complementing network video recorder systems.
This section brings together practical product details such as HD Recording, Night Vision, Night Vision Distance, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The INSIGHT S355(2.8MM) combines high-resolution imaging with intelligent features to elevate surveillance effectiveness. Its 98.43 ft infrared/color night vision uses two IR LEDs and an IR cut-off filter to deliver clear monochrome or color footage in low-light conditions. AI-powered human and vehicle detection reduces false alarms by focusing on relevant events, while 3D digital noise reduction ensures clean video even in challenging lighting.
Enhanced Low-Light Performance
The camera maintains image quality in darkness with infrared/color night vision and a fast f/1.6 aperture, supporting surveillance around the clock.
- 98.43 ft night vision range
- Infrared/Color night vision mode
- 2 IR LEDs for illumination
Robust Outdoor Durability
Built for outdoor installation, the metal bullet design resists water, weather, and temperature extremes with an IP67 rating and wide operating range.
- IP67 weatherproof and dustproof
- Metal construction
- Operates from -22°F to 140°F
Deployment / Use Cases
This camera is ideal for perimeter security, parking lots, building entrances, and industrial sites where high-resolution monitoring and outdoor durability are critical. Its bullet form factor and multiple mounting options allow flexible installation on walls, ceilings, or poles, covering wide areas with a 134° diagonal field of view.
For retail environments, the camera supports alarm triggering and wide dynamic range to handle bright windows and dark shadows, ensuring consistent video quality. In residential or commercial complexes, PoE power simplifies installation by delivering data and power over a single Ethernet cable, reducing wiring complexity and costs.
Perimeter and Outdoor Surveillance
Deploy along fences, gates, or exterior walls to monitor access points and deter unauthorized activity with clear 5MP footage.
- IP67 rating for all-weather use
- 98.43 ft night vision for dark areas
- Metal housing for vandal resistance
Parking and Traffic Monitoring
Use in parking lots or driveways to capture license plates and vehicle movements with AI vehicle detection and high-resolution video.
- 2880x1620 resolution for detail
- AI vehicle detection
- 30 fps for smooth video
Physical Profile
The camera features a compact bullet design measuring 2.90" wide, 2.90" high, and 7.20" long, with a weight of 1.15 lb. Its metal construction ensures durability, while the IP67 rating guarantees protection against dust and water immersion up to 1 meter. Mounting accessories support ceiling, wall, or pole installation, providing versatile placement for optimal coverage. The included M12-mount lens is fixed at 2.8mm, offering a balanced field of view for general surveillance applications.
- Width
- 2.90" (73.66 mm)
- Height
- 2.90" (73.66 mm)
- Weight
- 1.15 lb (520 g)
- Length
- 2.8 mm (0.11")
What's in the Box
The package includes all necessary components for quick setup and installation.
Highlights
- 5MP resolution delivers 2880x1620 video for detailed surveillance footage
- 98.43 ft infrared/color night vision ensures clear monitoring in low-light conditions
- AI-powered human and vehicle detection reduces false alarms and enhances security
- IP67 weatherproof rating with metal housing for durable outdoor installation
- H.265+, H.265, and H.264 video compression optimize bandwidth and storage
- PoE and DC power options provide flexible installation and reduced wiring
- Wide 134° diagonal field of view covers expansive areas with a single camera
- 120 dB wide dynamic range balances lighting in high-contrast environments
- Fixed 2.8mm lens with f/1.6 aperture for strong low-light performance
- Remote management capabilities enable configuration from any location
Specifications
| Specifications | |
|---|---|
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Manufacturer Part Number | INSIGHT S355(2.8MM) |
| Brand Name | TP-Link |
| Product Model | S355 |
| Product Name | 5MP Outdoor Full-Color Bullet Network Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Night Vision | Yes |
| Night Vision Distance | 98.43 ft (30 m) |
| Night Vision Type | Infrared/Color |
| Number of IR LEDs | 2 |
| Wide Dynamic Range Detail | 120 dB |
| AI-powered | Yes |
| Infrared (IR) Cut-off Filter | Yes |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Image Sensor Size | 1/2.7" |
| Color Supported | Color |
| Field of View | Horizontal FOV: 111.4°, Vertical FOV: 58.8°, Diagonal FOV: 134° |
| Effective Camera Resolution | 5 Megapixel |
| Video | |
| Video Formats | H.265+,H.265,H.264,H.264+,H.264H,H.265M |
| Maximum Video Resolution | 2880 x 1620 |
| Maximum Frame Rate | 30 fps |
| Audio | |
| Audio Support | Yes |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 2.8 mm (0.11") |
| Lens Included | Yes |
| Lens Mount Type | M12-mount |
| Maximum Aperture | f/1.6 |
| Exposure | |
| Shortest Shutter Speed | 1/10000 Second |
| Longest Shutter Speed | 1/3 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Ethernet Technology | Fast Ethernet |
| Protocols | TCP/IP,UDP,ICMP,HTTP,HTTPS,DHCP,DNS,RTSP,NTP,UPnP,SSL/TLS,FTP,SFTP,RTP,IPv4,IPv6,ARP |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Maximum Power Consumption | 10.70 W |
| Input Voltage | 12 V DC |
| Power Source Type | DC,PoE |
| Physical Characteristics | |
| Product Material | Metal |
| Mount Type | Ceiling Mount,Wall Mount,Pole Mount |
| Form Factor | Bullet |
| Durability | Water Proof,Weather Proof |
| Height | 2.90" (73.66 mm) |
| Width | 2.90" (73.66 mm) |
| Length | 7.20" (182.88 mm) |
| Diameter | 2.91" (74 mm) |
| Weight (Approximate) | 1.15 lb (520 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -22°F (-30°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Minimum Storage Temperature | -40°F (-40°C) |
| Maximum Storage Temperature | 140°F (60°C) |
| Maximum Operating Humidity (Non-condensing) | 95% |
| Maximum Storage Humidity (Non-condensing) | 95% |
| Miscellaneous | |
| Features | Alarm Triggering,Vehicle Detection,Human Detection,Wide Dynamic Range,3D Digital Noise Reduction,Noise Reduction,White Balance,Built-in Microphone,Day/Night,Mirror |
| Indoor/Outdoor | Outdoor |
| Package Contents | VIGI Network Camera Quick Start Guide Waterproof Cable Attachments Mounting Accessories |
| Ingress Protection Rating | IP67 |
User Manual
FAQ
What is the resolution and video quality of this camera?
The VIGI INSIGHT S355(2.8MM) offers 5-megapixel resolution with a maximum video resolution of 2880 x 1620 at 30 frames per second. This high resolution provides crisp, detailed footage essential for identifying faces, license plates, and other critical details in surveillance applications. Video compression includes H.265+, H.265, and H.264 formats to efficiently manage bandwidth and storage without sacrificing quality.
How does the night vision perform and what distance does it cover?
This camera features infrared/color night vision with a range of 98.43 ft (30 m). It uses two IR LEDs and an IR cut-off filter to deliver clear monochrome footage in complete darkness or color video in low-light conditions. The f/1.6 aperture enhances light capture, ensuring reliable performance around the clock for outdoor security monitoring.
Is this camera suitable for outdoor use and what is its durability rating?
Yes, the camera is designed for outdoor use with an IP67 ingress protection rating, making it dust-tight and waterproof against immersion up to 1 meter. Its metal housing and weatherproof construction withstand temperatures from -22°F to 140°F, ensuring reliable operation in harsh environments like rain, snow, or extreme heat.
What power options are available for installation?
The camera supports both Power over Ethernet (PoE) and 12 V DC power sources. PoE allows data and power transmission over a single Ethernet cable, simplifying installation and reducing wiring costs. The maximum power consumption is 10.70 W, making it energy-efficient for continuous surveillance operations.
What mounting options does the camera support?
It includes mounting accessories for ceiling, wall, and pole installation, providing flexibility to position the camera for optimal coverage. The bullet form factor and compact dimensions (2.90" x 2.90" x 7.20") make it easy to install in various locations, from building corners to fence posts.
Does this camera include AI features for smart surveillance?
Yes, the camera is AI-powered with human and vehicle detection capabilities. These features reduce false alarms by focusing on relevant security events, and they support alarm triggering for immediate notifications. Additional AI-enhanced functions include wide dynamic range (120 dB) and 3D digital noise reduction for improved video clarity in challenging lighting conditions.
What storage is included?
The system includes Memory Card of storage for applications, files, and everyday business data.
