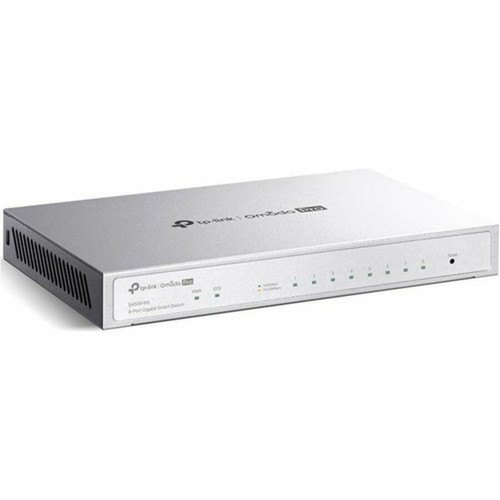

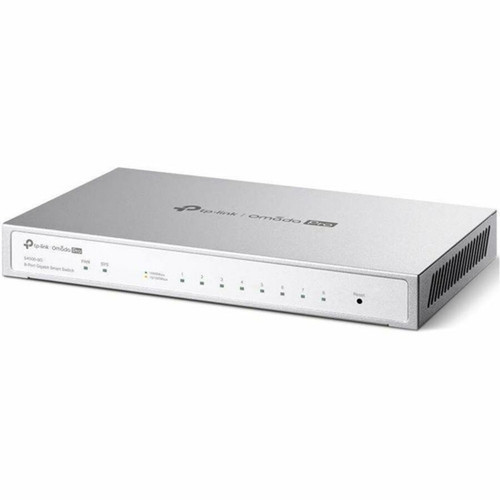

TP-LINK S4500-8G Omada Pro 8-Port Gigabit Smart Switch - Layer 2 Managed - Fanless - Desktop/Wall Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This switch operates at Layer 2, supporting advanced networking standards including IEEE 802.1Q for VLANs, IEEE 802.1p for quality of service, and IEEE 802.1x for network access control. The 8 × 10/100/1000BASE-T RJ-45 ports auto-negotiate speed and duplex settings, ensuring compatibility with a wide range of devices from computers to IP cameras.
The switch is manageable, allowing for configuration of port settings, traffic prioritization, and security features. It supports link aggregation with IEEE 802.3ad for increased bandwidth and redundancy. The input voltage is 12 V DC via an external power adapter, providing stable power delivery in various environments.
Relevant factors for this section include Features, Total Number of Network Ports, Network (RJ-45), Port/Expansion Slot Details. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The S4500-8G combines robust management features with a compact, energy-efficient design. Its Layer 2 capabilities enable network segmentation, improved traffic control, and enhanced security, making it a solid foundation for growing business networks.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Silent Operation, Flexible Deployment.
Silent Operation
The fanless design eliminates moving parts, reducing noise and maintenance while increasing reliability in office environments.
- No fan noise
- Lower failure risk
- Suitable for quiet spaces
Flexible Deployment

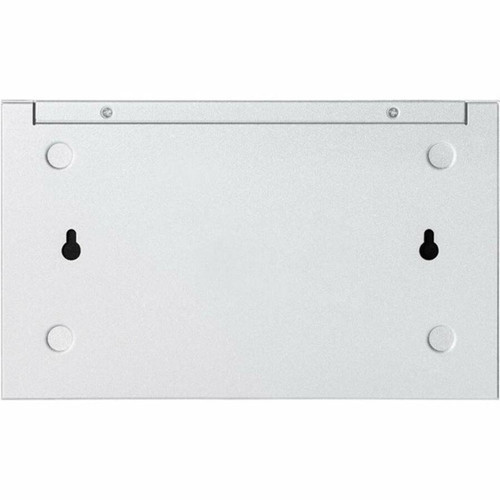

With desktop and wall-mountable options, this switch can be installed in various locations, from under desks to network closets.
- Desktop placement
- Wall mountable
- Space-saving design
Deployment / Use Cases
This switch is ideal for small office networks, retail environments, and educational settings where reliable, managed connectivity is required. It can serve as a core switch for a small network or as an edge switch connecting end devices like computers, printers, and VoIP phones.
In a retail setup, the switch supports point-of-sale systems and security cameras with consistent Gigabit speeds. For office deployments, it enables efficient data sharing and internet access across multiple workstations. The wall-mountable feature allows for tidy installations in network racks or enclosed spaces.
Small Office Core Switch
Centralize network traffic with eight ports, providing a managed backbone for computers, servers, and peripherals.
Edge Deployment
Place at network edges to connect end devices, leveraging Layer 2 features for traffic optimization and security.
Physical Profile
The switch measures 8.20" wide, 4.90" deep, and 1" high, offering a compact footprint that fits easily on desks or in tight spaces. Its gray color blends with standard office equipment, and the robust construction supports wall mounting with appropriate hardware. The low profile makes it suitable for installations where space is limited, such as in network cabinets or behind monitors.
- Width
- 8.20" (208.28 mm)
- Depth
- 4.90" (124.46 mm)
- Height
- 1" (25.40 mm)
Highlights
- 8 Gigabit Ethernet ports for high-speed connectivity
- Layer 2 managed switch with VLAN and QoS support
- Fanless design for silent, reliable operation
- Desktop and wall-mountable form factor
- Supports twisted pair cabling up to 100 meters
- Low power consumption at 6.40 W
- IEEE 802.3ad link aggregation for bandwidth increase
- Gray finish for professional appearance
Specifications
| Specifications | |
|---|---|
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Manufacturer Part Number | S45008G |
| Brand Name | TP-Link |
| Product Line | Omada Pro |
| Product Series | 4500 |
| Product Name | Omada Pro 8-Port Gigabit Smart Switch |
| Product Type | Ethernet Switch |
| Technical Information | |
| Features | Fanless |
| Interfaces/Ports | |
| Total Number of Network Ports | 8 |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details | 8 × 10/100/1000BASE-T RJ-45 Network Ports |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T |
| Maximum Data Transfer Rate | 125 MB/s |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3i,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3x,IEEE 802.1D,IEEE 802.1s,IEEE 802.1w,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1x |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| Input Voltage | 12 V DC |
| Power Source | Power Adapter |
| Power Consumption | 6.40 W |
| Physical Characteristics | |
| Product Color | Gray |
| Form Factor | Desktop,Wall Mountable |
| Height | 1" (25.40 mm) |
| Width | 8.20" (208.28 mm) |
| Depth | 4.90" (124.46 mm) |
User Manual
FAQ
How many ports does the TP-LINK S4500-8G switch have?
The TP-LINK S4500-8G features eight 10/100/1000BASE-T RJ-45 Ethernet ports. These ports support Gigabit speeds and auto-negotiate for compatibility with various devices, making it suitable for connecting computers, printers, and other network equipment in small to medium environments.
Is this switch manageable?
Yes, the S4500-8G is a managed switch operating at Layer 2. It supports management features such as VLAN configuration, quality of service (QoS), port mirroring, and link aggregation. This allows network administrators to optimize traffic, enhance security, and improve network performance through centralized control.
What is the power consumption of this switch?
The switch consumes 6.40 W of power under typical operation, powered by a 12 V DC external adapter. This low power draw contributes to energy efficiency, reducing operational costs and making it suitable for environments where power savings are a priority.
Can this switch be wall-mounted?
Yes, the TP-LINK S4500-8G supports both desktop and wall-mountable form factors. Its compact dimensions of 8.20" wide, 4.90" deep, and 1" high allow for flexible installation options, enabling tidy placements in network closets, under desks, or on walls using standard mounting hardware.
Does the switch support PoE (Power over Ethernet)?
No, the S4500-8G does not support PoE. It provides data connectivity only through its eight Gigabit Ethernet ports. For PoE requirements, consider TP-Link's PoE-enabled switch models within the Omada Pro series that can deliver power to devices like IP cameras or wireless access points.
What networking standards does this switch comply with?
The switch complies with multiple IEEE standards, including 802.3i, 802.3u, 802.3ab, 802.3ad, 802.3x, 802.1D, 802.1s, 802.1w, 802.1Q, 802.1p, and 802.1x. These standards ensure compatibility with existing network infrastructure and support features like VLANs, QoS, and network access control for robust performance.
