TP-LINK S5500-24GP4F Omada Pro 24-Port PoE+ Gigabit L2+ Managed Switch with 4 SFP Slots
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This switch operates as a full-featured Layer 2+ managed device, supporting a comprehensive suite of networking standards including IEEE 802.3af/at for PoE, IEEE 802.3ad for link aggregation, and IEEE 802.1Q for VLAN tagging. The management capability allows for precise control over network configuration, traffic prioritization, and security policies through a web interface or command-line access.
The hardware architecture supports a maximum data transfer rate of 125 GB/s, ensuring high-throughput performance for bandwidth-intensive applications. All 24 RJ-45 ports auto-negotiate between 10/100/1000 Mbps speeds, while the four SFP slots accommodate Gigabit fiber transceivers for long-distance uplinks or backbone connections.
Relevant factors for this section include Network (RJ-45), Port/Expansion Slot Details, Media Type Supported, Ethernet Technology. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The Omada Pro S5500-24GP4F combines high port density with advanced management features in a compact, rack-optimized design. Its integrated power supply and substantial PoE budget eliminate the need for external injectors, streamlining installations and reducing total cost of ownership.
High-Density PoE Deployment
With 24 PoE+ ports and a 250W budget, this switch can power numerous devices simultaneously, ideal for modern office networks with wireless access points, security cameras, and IP phones.
- Eliminates separate power cables
- Centralized power management
- Supports PoE and PoE+ devices
Flexible Uplink Options
The four SFP slots provide fiber connectivity options for extending network reach, connecting to backbone switches, or creating redundant links with different media types.
- Fiber optic distance capabilities
- Mixed copper/fiber networks
- Uplink redundancy support
Deployment / Use Cases
This switch is particularly well-suited for medium to large business networks where reliable, managed switching with Power over Ethernet is required. Its combination of port count, PoE capacity, and management features addresses common infrastructure challenges.
Typical deployment scenarios include corporate office networks supporting VoIP systems and wireless access points, educational institutions with classroom technology, retail environments with POS systems and security cameras, and small to medium data centers requiring reliable access layer switching. The rack-mountable design makes it equally appropriate for wall-mounted network closets or standard 19-inch rack installations.
Relevant factors for this section include Network (RJ-45), Port/Expansion Slot Details, Media Type Supported, Ethernet Technology. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile

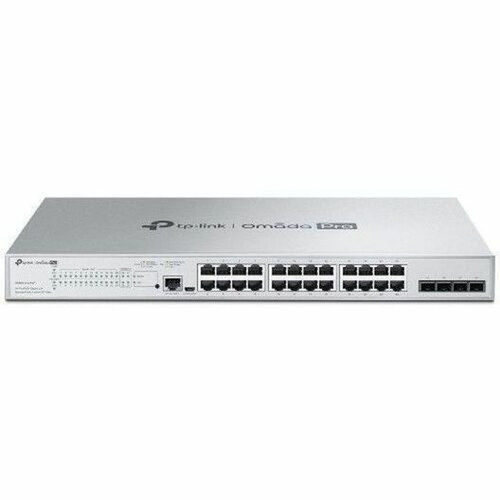

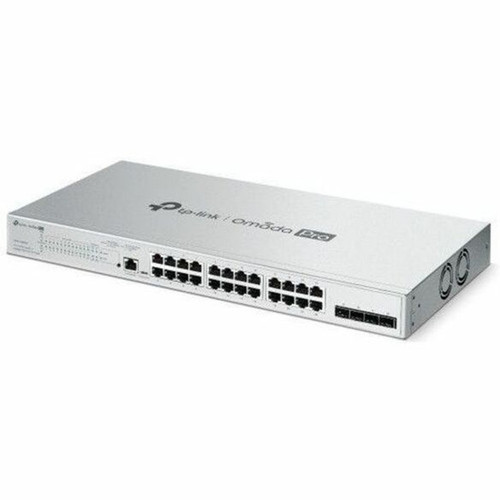

The switch features a durable metal chassis with dimensions of 1.70 inches in height, 17.30 inches in width, and 8.70 inches in depth, conforming to standard 1U rack specifications. The compact depth allows for installation in shallow network cabinets while maintaining adequate airflow for thermal management. Front-panel LED indicators provide at-a-glance status monitoring for power, link activity, and PoE status across all ports.
- Width
- 17.30" (439.42 mm)
- Depth
- 8.70" (220.98 mm)
- Height
- 1.70" (43.18 mm)
Highlights
- 24 Gigabit Ethernet ports with PoE+ support
- 4 SFP slots for fiber optic uplinks
- 250-watt total PoE budget
- Layer 2+ managed switching with comprehensive features
- 1U rack-mountable form factor
- Dual console ports (RJ-45 and Micro-USB)
- Supports twisted pair and fiber optic media
- Built-in power supply with 120V/230V input
- IEEE 802.3af/at PoE standards compliance
- Web-based and CLI management options
Specifications
| Specifications | |
|---|---|
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Manufacturer Part Number | S5500-24GP4F |
| Brand Name | Omada Pro |
| Product Series | 5500 |
| Product Model | S5500-24GP4F |
| Product Name | Omada Pro 24-Port PoE+ Gigabit L2+ Managed Switch with 4 SFP Slots |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details | 24 x 10/100/1000BASE-T RJ-45 Network Port,4 x Gigabit SFP Expansion Slots,1 x RJ-45 Console Port,1 x Micro-USB Console Port |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,1000Base-X |
| Maximum Data Transfer Rate | 125 GB/s |
| I/O Expansions | |
| Total Number of Expansion Slots | 4 |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 4 |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3i,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3z,IEEE 802.3af,IEEE 802.3at,IEEE 802.3ad,IEEE 802.3x,IEEE 802.3az,IEEE 802.1D,IEEE 802.1s,IEEE 802.1w,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1x,IEEE 802.3ah |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 250 W |
| Input Voltage | 120 V AC,230 V AC |
| Power Source | Power Supply,PoE+ |
| Power Consumption | 301.10 W |
| Physical Characteristics | |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable |
| Height | 1.70" (43.18 mm) |
| Width | 17.30" (439.42 mm) |
| Depth | 8.70" (220.98 mm) |
User Manual
FAQ
How many devices can this switch power with PoE?
The switch provides 24 PoE+ enabled ports with a total power budget of 250 watts. The actual number of devices it can power depends on the power requirements of each connected device. For example, it could support approximately 16 devices drawing 15.4W each (802.3af) or fewer devices requiring higher 802.3at PoE+ power levels. The switch intelligently manages power allocation across all ports.
What types of SFP modules are compatible with this switch?
The four SFP slots support standard Gigabit SFP (Small Form-factor Pluggable) transceivers, including both copper and fiber optic modules. Compatible modules typically include 1000BASE-SX for multimode fiber, 1000BASE-LX for single-mode fiber, and 1000BASE-T for copper connections. Always verify compatibility with specific SFP module models before deployment.
Is this switch manageable, and what features does it support?
Yes, this is a fully manageable Layer 2+ switch. Management features include VLAN support (802.1Q), Quality of Service (QoS) for traffic prioritization, link aggregation (802.3ad), port mirroring for monitoring, IGMP snooping for multicast optimization, and spanning tree protocols (802.1D/w/s) for loop prevention. Management can be performed via web interface, command line interface (CLI), or through the Omada SDN platform for centralized control.
What is the power consumption of this switch?
The switch has a maximum power consumption of 301.10 watts. This includes both the switch's operational power and the PoE power delivered to connected devices. The actual consumption will vary based on the number of active ports, connected devices, and network traffic. The switch supports 120V and 230V AC input voltages for flexibility in different geographical regions.
Can this switch be mounted in a standard server rack?
Yes, the switch is designed for standard 19-inch server rack installation with a 1U form factor. It includes mounting brackets and uses minimal rack space with dimensions of 1.70 inches in height. The compact depth of 8.70 inches makes it suitable for both shallow and deep network cabinets commonly found in server rooms and network closets.
What networking standards does this switch support?
The switch supports a comprehensive range of IEEE standards including 802.3i/u/ab/z for Ethernet, 802.3af/at for PoE, 802.3ad for link aggregation, 802.3x for flow control, 802.3az for energy efficiency, and 802.1D/s/w/Q/p/x for switching and security protocols. This standards compliance ensures interoperability with other network equipment and support for advanced networking features.
