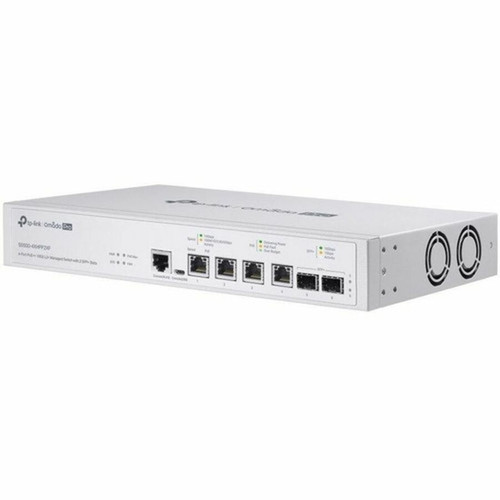

TP-LINK S5500-4XHPP2XF Omada Pro 4-Port PoE++ Managed 10 Gigabit Switch with 2 SFP+ Slots - 200W PoE Budget - Layer 3
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The S5500-4XHPP2XF operates as a full Layer 3 managed switch, supporting static routing and a wide array of networking protocols including VLAN, ACL, QoS, IGMP Snooping, and Ethernet Ring Protection Switching (ERPS). It is compliant with key IEEE standards such as 802.3bt for PoE++, 802.3at, 802.3af, 802.1x for authentication, and 802.1Q for VLAN tagging.
Its dual console ports (RJ-45 and Micro-USB) offer flexible out-of-band management options, while the switch supports both twisted pair and optical fiber media via its RJ-45 and SFP+ interfaces. The maximum data transfer rate of 1.25 GB/s ensures efficient handling of high-bandwidth applications across the network.
Relevant factors for this section include Features, Total Number of Network Ports, Network (RJ-45), Port/Expansion Slot Details. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This switch stands out with its balanced combination of high-speed PoE++ ports, flexible uplink options, and enterprise-grade management capabilities. The 200W total PoE budget allows for efficient power distribution across connected devices, reducing the need for additional power injectors and simplifying cable management.
Centralized Cloud Management
Manage the switch seamlessly through the Omada cloud platform via web or mobile app, enabling zero-touch provisioning and unified control across multiple sites.
- Web-based management
- CLI, SNMP, and RMON support
- Omada app integration
Robust PoE Delivery
Each of the four PoE++ ports supports up to 60W per port, making it ideal for powering high-performance devices like 802.11ax access points or multi-sensor IP cameras.
- 60W per port maximum
- IEEE 802.3bt compliant
- 200W total budget
Flexible Deployment Options
The compact design supports both desktop placement and standard 19-inch rack mounting, with dual AC voltage input (120V/230V) for global compatibility.
- Desktop or rack-mountable
- Dual voltage input
- RoHS compliant
Deployment / Use Cases
The S5500-4XHPP2XF is optimally deployed at the access layer in enterprise networks, where it can aggregate traffic from multiple devices and provide uplink connectivity to core switches or routers. Its PoE++ capabilities make it particularly suitable for environments with power-hungry networked devices.
Common use cases include small to medium business office networks, retail environments with extensive surveillance systems, educational campuses requiring high-density wireless coverage, and healthcare facilities where reliable network power and connectivity are critical. The dual SFP+ slots enable fiber uplinks for longer distance connections or higher bandwidth aggregation to network cores.
Enterprise Office Networks
Provide 10G connectivity to workstations and servers while powering VoIP phones, access points, and security devices through a single switch.
Surveillance and Security Systems
Power multiple high-resolution IP cameras with PoE++ and aggregate video feeds efficiently with 10G uplinks to NVR systems.

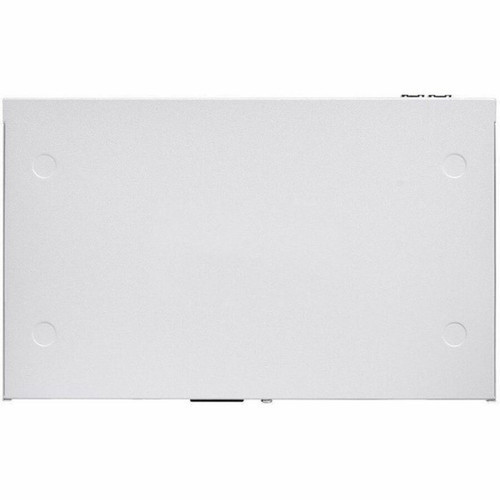

Physical Profile
The switch features a compact chassis measuring 1.70" (43.18 mm) in height, 11.60" (294.64 mm) in width, and 7.10" (180.34 mm) in depth, making it suitable for space-constrained environments. Its dual form factor support allows for flexible installation either as a desktop unit or mounted in a standard 19-inch rack using appropriate brackets.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.70" (43.18 mm), 11.60" (294.64 mm), 7.10" (180.34 mm). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 11.60" (294.64 mm)
- Depth
- 7.10" (180.34 mm)
- Height
- 1.70" (43.18 mm)
Highlights
- 4× 10 Gigabit Ethernet PoE++ RJ-45 ports with up to 60W per port
- 2× 10 Gigabit SFP+ uplink slots for fiber or copper expansion
- 200W total PoE budget for powering multiple high-demand devices
- Layer 3 managed switching with static routing support
- Zero-Touch Provisioning (ZTP) for simplified deployment
- Centralized cloud management via Omada web portal or mobile app
- Dual console ports (RJ-45 and Micro-USB) for flexible management
- Desktop or rack-mountable form factor with compact dimensions
- Comprehensive networking standards support including IEEE 802.3bt, 802.1Q, 802.1x
- RoHS compliant for environmental safety
Specifications
| Specifications | |
|---|---|
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Manufacturer Part Number | S5500-4XHPP2XF |
| Brand Name | TP-Link |
| Product Line | Omada Pro |
| Product Model | S5500-4XHPP2XF |
| Product Name | S5500-4XHPP2XF Omada Pro 4-Port PoE++ 10GE L2+ Managed Switch with 2 SFP+ Slots |
| Product Type | Ethernet Switch |
| Technical Information | |
| Features | Zero-Touch Provisioning (ZTP) |
| Interfaces/Ports | |
| Total Number of Network Ports | 4 |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details | 4 × 10 Gigabit Ethernet PoE++ RJ-45 Network Port,2 × 10 Gigabit Ethernet SFP+ Expansion Slot,1 x RJ-45 Console Port,1 x Micro-USB Console Port |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network Technology | 10GBase-T,10GBase-X |
| Maximum Data Transfer Rate | 1.25 GB/s |
| I/O Expansions | |
| Total Number of Expansion Slots | 2 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 2 |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.3bt,IEEE 802.3at,IEEE 802.3af,IEEE 802.1x,IEEE 802.3ah,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3bz,IEEE 802.3an,IEEE 802.3z,IEEE 802.3ae,IEEE 802.1p,IEEE 802.1D,IEEE 802.1w,IEEE 802.1s,IEEE 802.3x,IEEE 802.1Q,IEEE 802.1ab |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 200 W |
| Input Voltage | 120 V AC,230 V AC |
| Power Source | AC,PoE++,Power Supply |
| Power Consumption | 244.90 W |
| Physical Characteristics | |
| Form Factor | Desktop,Rack-mountable |
| Height | 1.70" (43.18 mm) |
| Width | 11.60" (294.64 mm) |
| Depth | 7.10" (180.34 mm) |
| Miscellaneous | |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
User Manual
FAQ
How many devices can this switch power with PoE?
The S5500-4XHPP2XF has a total PoE budget of 200W distributed across its four PoE++ ports. Each port can deliver up to 60W, allowing you to power multiple high-power devices simultaneously, such as 802.11ax wireless access points, PTZ cameras, or VoIP phones with large displays. The actual number of devices depends on their individual power requirements, but the switch efficiently manages power allocation across all connected PoE devices.
What types of uplink connections does this switch support?
This switch includes two 10 Gigabit SFP+ slots that support both fiber and copper transceivers. You can use these uplinks to connect to other switches, routers, or network cores using 10GBase-T copper cables or various SFP+ fiber modules for longer distance connections. The dual uplink design provides redundancy and increased bandwidth for aggregation links in enterprise network topologies.
Is this switch manageable, and what management options are available?
Yes, this is a fully manageable Layer 3 switch. Management options include web-based interface, command line interface (CLI), SNMP, and RMON for monitoring. It also supports centralized cloud management through the TP-Link Omada platform, enabling zero-touch provisioning and unified management of multiple switches across different locations via a single cloud dashboard or mobile app.
What layer of switching does this device support?
The S5500-4XHPP2XF supports Layer 3 switching, which means it can perform basic routing functions between VLANs and IP subnets in addition to traditional Layer 2 switching. This includes support for static routing, allowing for more efficient traffic flow in segmented network environments without requiring a separate router for inter-VLAN communication.
Can this switch be rack-mounted?
Yes, the switch supports both desktop placement and standard 19-inch rack mounting. Its compact dimensions of 1.70" height, 11.60" width, and 7.10" depth make it suitable for installation in rack environments where space is limited. The switch typically requires separate rack mounting brackets (often sold separately) for secure installation in equipment racks.
What power input voltages does this switch accept?
The switch accepts both 120V AC and 230V AC input voltages, making it compatible with standard power systems in North America and many international regions. This dual voltage capability ensures flexibility in deployment across different geographic locations without requiring voltage converters or specialized power supplies.
