TP-LINK SG2008P JetStream 8-Port Gigabit Ethernet Switch - Managed Layer 2 - 4 PoE+ Ports - 62W Budget - Desktop/Wall Mount
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This switch features eight auto-negotiating Gigabit Ethernet ports (10/100/1000Base-T) that support twisted-pair cabling for distances up to 100 meters. Four of these ports deliver PoE+ power, complying with IEEE 802.3at standards and offering a total PoE budget of 62 watts to efficiently support powered devices.
Layer 2 switching capabilities enable advanced network management, including VLAN support (IEEE 802.1Q), Quality of Service (IEEE 802.1p), and link aggregation (IEEE 802.3ad) for improved traffic control and network segmentation. The switch supports a comprehensive suite of networking standards, ensuring compatibility and stable operation in diverse IT environments.
Relevant factors for this section include Features, Total Number of Network Ports, Network (RJ-45), Modular. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The SG2008P stands out by integrating power, performance, and manageability in a single compact unit. Its combination of PoE+ support and Layer 2 features provides a cost-effective upgrade path for networks requiring both connectivity and device power.
Simplified Power Delivery
Eliminate separate power adapters for compatible devices by using the integrated PoE+ ports, reducing cable clutter and installation complexity.
- 62W total budget supports multiple devices
- IEEE 802.3af/at compliance ensures compatibility
Enhanced Network Control
Gain visibility and control over network traffic with managed Layer 2 features that improve security, prioritize critical applications, and optimize bandwidth usage.
- VLAN support for network segmentation
- QoS for traffic prioritization
- Link aggregation for increased throughput
Deployment / Use Cases
The SG2008P is particularly well-suited for environments where space is limited but network demands are growing. Its desktop-friendly design and wall-mount capability make it adaptable to various installation scenarios beyond traditional rack-mounted setups.
Common deployment scenarios include small business networks where the switch can serve as the central connectivity point for workstations, printers, and IP phones. In retail environments, it supports point-of-sale systems, security cameras, and digital signage. For educational settings, it provides reliable connectivity in classrooms or administrative offices while powering wireless access points for campus coverage.
Small Office Connectivity Hub
Connect up to eight devices with Gigabit speeds while powering VoIP phones and wireless access points through the integrated PoE+ ports.
Remote Work & Branch Office Solution
Deploy in satellite offices or home office setups where quiet fanless operation and compact form factor are essential considerations.
Physical Profile

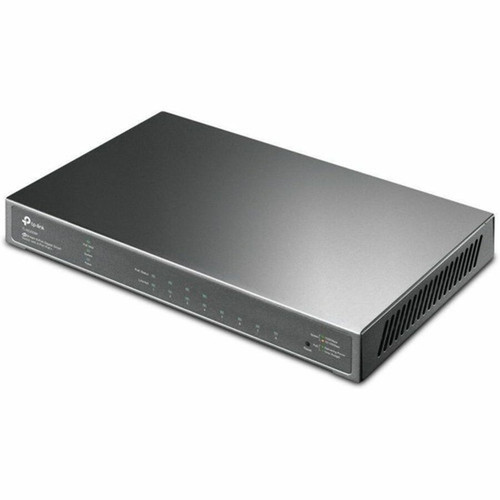

Measuring 8.20" wide × 4.90" deep × 1" high (208.28 × 124.46 × 25.40 mm), the switch features a low-profile metal enclosure that dissipates heat effectively without active cooling. The desktop form factor includes rubber feet for stable placement, while integrated wall-mount slots allow vertical installation to conserve desk space. This compact footprint makes it suitable for placement on shelves, under desks, or mounted on walls in tight spaces.
- Width
- 8.20" (208.28 mm)
- Depth
- 4.90" (124.46 mm)
- Height
- 1" (25.40 mm)
Highlights

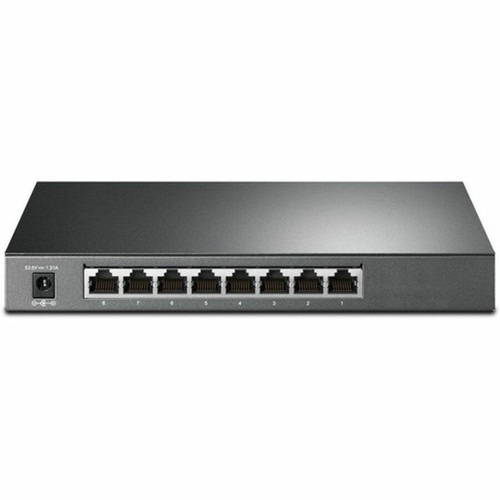

- 8 Gigabit Ethernet ports with auto-negotiation for 10/100/1000 Mbps speeds
- 4 PoE+ ports with 62W total budget to power compatible devices
- Managed Layer 2 switching with VLAN, QoS, and link aggregation support
- Fanless metal design for silent operation in office environments
- Desktop or wall-mount installation flexibility
- Supports comprehensive IEEE networking standards for interoperability
- Twisted-pair cable support up to 100 meters distance
- Compact footprint ideal for space-constrained deployments
Specifications
| Specifications | |
|---|---|
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Manufacturer Part Number | SG2008P |
| Brand Name | TP-Link |
| Product Line | JetStream |
| Product Model | TL-SG2008P |
| Product Name | JetStream TL-SG2008P 8-Ports Ethernet Switch |
| Product Type | Ethernet Switch |
| Technical Information | |
| Features | Fanless |
| Interfaces/Ports | |
| Total Number of Network Ports | 8 |
| Network (RJ-45) | Yes |
| Modular | Yes |
| Port/Expansion Slot Details | 4 × Gigabit Ethernet PoE+,4 x Gigabit Ethernet Network |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T |
| Maximum Data Transfer Rate | 125 MB/s |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3i,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3x,IEEE 802.1D,IEEE 802.1s,IEEE 802.1w,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1x |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 62 W |
| Input Voltage | 53.5 V DC |
| Power Source | Power Adapter,PoE+ |
| Power Consumption | 7.90 W |
| Physical Characteristics | |
| Product Material | Metal |
| Form Factor | Desktop,Wall Mountable |
| Height | 1" (25.40 mm) |
| Width | 8.20" (208.28 mm) |
| Depth | 4.90" (124.46 mm) |
| Miscellaneous | |
| TAA Compliant | No |
User Manual
FAQ
How many devices can this switch power using PoE?
The SG2008P includes four PoE+ ports that comply with IEEE 802.3at standards, providing up to 30 watts per port with a total PoE budget of 62 watts. This allows you to power multiple compatible devices simultaneously, such as VoIP phones, wireless access points, or security cameras, though the actual number depends on each device's power requirements. The switch intelligently manages power allocation across connected devices.
What management features does this Layer 2 switch offer?
As a managed Layer 2 switch, the SG2008P supports VLAN configuration (IEEE 802.1Q) for network segmentation, Quality of Service (IEEE 802.1p) for traffic prioritization, link aggregation (IEEE 802.3ad) for increased bandwidth, and Spanning Tree Protocol variants (IEEE 802.1D/w/s) for network redundancy. These features provide control over network traffic, improve security through segmentation, and optimize performance for critical applications.
Can this switch be mounted on a wall?
Yes, the SG2008P supports both desktop placement and wall mounting. The metal enclosure includes integrated mounting slots that allow secure vertical installation, helping conserve desk space in compact environments. The switch measures 8.20" wide × 4.90" deep × 1" high, making it suitable for installation in various locations where traditional rack mounting isn't practical.
What type of cables does this switch support?
The switch supports standard twisted-pair Ethernet cables (CAT5e, CAT6, or higher) for all eight Gigabit Ethernet ports. It's compatible with 10/100/1000Base-T network technology, allowing cable runs up to 100 meters (328 feet) between devices. The auto-MDI/MDIX feature eliminates the need for crossover cables, so you can use straight-through cables for all connections.
Is this switch fanless and quiet?
Yes, the SG2008P features a completely fanless design with passive cooling through its metal enclosure. This makes it ideal for office environments, classrooms, or retail spaces where quiet operation is important. The metal housing effectively dissipates heat without generating audible noise, ensuring reliable performance in noise-sensitive locations.
What is the power consumption of this switch?
The switch has a typical power consumption of 7.90 watts, with an input voltage requirement of 53.5 V DC. It can be powered either through the included power adapter or via PoE+ input if connected to an upstream PoE-capable switch or injector. The low power consumption contributes to energy efficiency in always-on network deployments.
