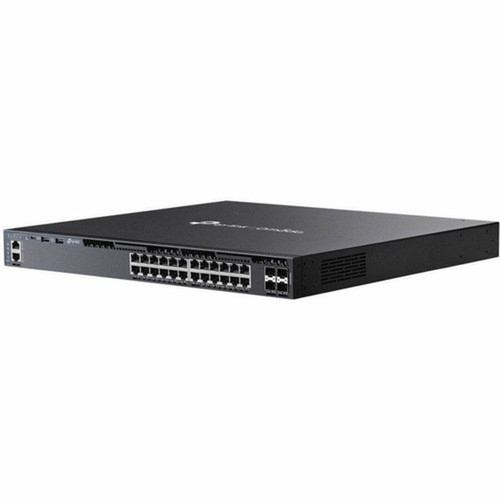

TP-LINK SG6428XHP Omada 24-Port Gigabit Stackable L3 Managed PoE+ Switch - 4 x 10G SFP+ Slots - 720W PoE Budget - 1U Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This switch operates at Layer 3, enabling advanced routing features such as static routing and VLAN routing for improved network segmentation and performance. It supports a comprehensive set of networking standards, including IEEE 802.3at for PoE+, IEEE 802.1Q for VLAN tagging, and IEEE 802.3x for flow control, ensuring compatibility and reliability in mixed-device environments.
The media types supported include twisted pair cables for distances up to 100 meters and optical fiber via the SFP+ slots for longer reaches. The switch handles 10/100/1000Base-T and 10GBase-X network technologies, providing flexibility for both copper and fiber connections. Power consumption is rated at 916.60W with input voltages of 120V AC or 230V AC, suitable for global deployment.
Relevant factors for this section include Total Number of Network Ports, Network (RJ-45), Stack Port, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The SG6428XHP combines high port density with substantial PoE power, making it ideal for powering and connecting multiple devices without additional power injectors. Its stackable architecture simplifies network management by allowing multiple switches to operate as a single logical unit, reducing configuration overhead and enhancing fault tolerance.
High-Speed Uplinks
Four 10G SFP+ slots deliver up to 10x faster connectivity than standard Ethernet, providing high-performance uplinks for server connections or aggregation links.
- Supports 10GBase-X fiber optics
- Reduces network bottlenecks
- Enables future-proof scalability
Robust PoE Support
With a 720W PoE budget, this switch can power numerous PoE+ devices simultaneously, such as IP cameras, VoIP phones, and wireless access points.
- IEEE 802.3at compliant
- Eliminates need for extra power sources
- Simplifies cable management
Deployment / Use Cases
This switch is well-suited for medium to large office networks, educational campuses, and retail environments where reliable connectivity and power delivery are critical. Its Layer 3 capabilities support complex network designs with multiple subnets, making it a fit for organizations requiring advanced routing without dedicated routers.
In data center applications, the 10G SFP+ slots provide high-speed uplinks to servers or core switches, ensuring low-latency performance for bandwidth-intensive tasks. The rack-mountable design and 1U height allow for efficient use of rack space in server rooms, while the stackable feature enables easy expansion as network demands increase.
Enterprise Office Networks
Deploy in office buildings to connect workstations, printers, and PoE devices while managing traffic with VLANs and QoS settings.
Campus and Education
Use in schools or universities to support dense device deployments across multiple buildings, leveraging stackability for centralized management.
Physical Profile
The SG6428XHP features a sleek black chassis with dimensions of 1.73 inches in height, 17.32 inches in width, and 16.54 inches in depth, designed for standard 1U rack mounting. This compact form factor ensures easy integration into existing server racks or network cabinets, with front-accessible ports for straightforward cable management. The robust construction supports reliable operation in controlled environments, making it a durable choice for continuous use.
- Width
- 17.32" (440 mm)
- Depth
- 16.54" (420 mm)
- Height
- 1.73" (44 mm)
Highlights
- 24 Gigabit Ethernet PoE+ ports for connecting powered devices
- 4x 10G SFP+ slots for high-speed uplinks and fiber connectivity
- 720W PoE budget to support multiple PoE+ devices simultaneously
- Layer 3 managed switching for advanced routing and VLAN support
- Stackable design simplifies network expansion and management
- 1U rack-mountable form factor saves space in server cabinets
- Supports twisted pair and optical fiber media types
- Compliant with IEEE 802.3at, 802.1Q, and other networking standards
Specifications
| Specifications | |
|---|---|
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Manufacturer Part Number | SG6428XHP |
| Brand Name | Omada |
| Product Name | Omada 24-Port Gigabit Stackable L3 Managed PoE+ Switch with 4 10G Slots |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 25 |
| Network (RJ-45) | Yes |
| Stack Port | Yes |
| Port/Expansion Slot Details | 24 x Gigabit Ethernet PoE+,4 x 10 Gigabit Ethernet Expansion Slot,1 x Gigabit Ethernet Network |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Ethernet Technology | Gigabit Ethernet,10 Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,10GBase-X |
| I/O Expansions | |
| Total Number of Expansion Slots | 4 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 4 |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.3x,IEEE 802.3at,IEEE802.3af,IEEE 802.1p,IEEE 802.3ah,IEEE 802.1Q |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 720 W |
| Input Voltage | 120 V AC,230 V AC |
| Power Consumption | 916.60 W |
| Physical Characteristics | |
| Product Color | Black |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable |
| Height | 1.73" (44 mm) |
| Width | 17.32" (440 mm) |
| Depth | 16.54" (420 mm) |
FAQ
How many PoE+ ports does this switch have?
The TP-LINK Omada SG6428XHP has 24 Gigabit Ethernet ports that support PoE+, providing power and data to compatible devices like IP phones, wireless access points, and security cameras. These ports deliver up to 30W per port under the IEEE 802.3at standard, with a total PoE budget of 720W to handle multiple devices simultaneously.
What are the 10G SFP+ slots used for?
The four 10G SFP+ slots are expansion slots designed for high-speed uplinks, allowing connections to servers, core switches, or other network equipment using fiber optic or copper SFP+ modules. They support 10GBase-X technology, providing up to 10 times the speed of standard Gigabit Ethernet for reduced latency and improved bandwidth in backbone or aggregation links.
Is this switch stackable?
Yes, the SG6428XHP is a stackable switch, meaning multiple units can be connected and managed as a single logical device. This feature simplifies network administration, enhances scalability by allowing easy addition of ports, and improves redundancy by enabling unified management across the stack for more resilient network operations.
What does Layer 3 managed switching mean?
Layer 3 managed switching indicates that this switch supports routing functions at the network layer, such as static routing and inter-VLAN routing. This allows for more efficient traffic management between different subnets, better network segmentation, and improved performance compared to Layer 2 switches, making it suitable for complex enterprise networks.
What is the PoE budget of this switch?
The PoE budget is 720 watts, which represents the total power available for all PoE+ ports combined. This budget ensures the switch can supply adequate power to multiple high-demand PoE+ devices without overloading, supporting deployments with numerous IP cameras, VoIP phones, or wireless access points in office or campus settings.
Can this switch be rack-mounted?
Yes, the SG6428XHP is designed for rack mounting with a 1U form factor, meaning it occupies one unit of vertical space in a standard server rack. Its dimensions are 1.73 inches in height, 17.32 inches in width, and 16.54 inches in depth, making it easy to install in data centers or network closets for organized cable management and space efficiency.
