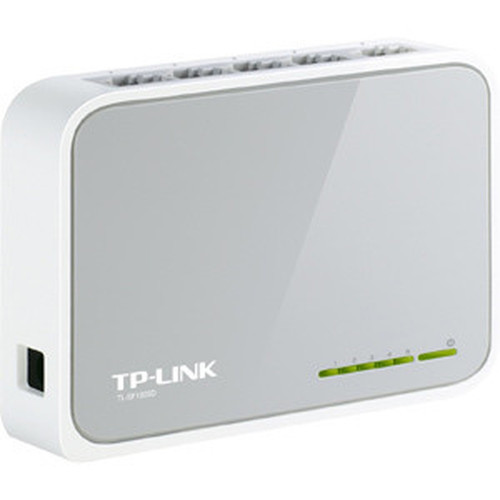

TP-LINK TL-SF1005D 5-Port Fast Ethernet Desktop Switch - 10/100Base-TX - Layer 2 - White
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Product Overview
The TP-Link TL-SF1005D is a compact 5-port Fast Ethernet desktop switch designed for straightforward network expansion in small office, home office, and residential environments. It provides a reliable and cost-effective solution for adding wired connections to your existing network infrastructure.
This switch operates as a plug-and-play device, requiring no software installation or complex configuration. Its fanless design ensures silent operation, making it suitable for noise-sensitive areas like offices or living spaces. The unit supports auto-negotiation and Auto-MDI/MDIX, which automatically detects and configures the optimal connection speed and eliminates the need for crossover cables, simplifying setup.
Relevant factors for this section include Total Number of Network Ports, Network (RJ-45), Port/Expansion Slot Details, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Technical Overview
The TL-SF1005D features five 10/100 Mbps RJ-45 ports that support Fast Ethernet technology over twisted pair cabling. It operates at Layer 2 of the OSI model, providing basic switching functionality for efficient local network traffic management. The switch incorporates IEEE 802.3x flow control to ensure reliable data transfer by preventing packet loss during high-traffic periods.
Power efficiency is a key aspect of this model, with a typical power consumption of just 1.90 watts. It includes an energy-saving feature that automatically adjusts power usage based on link status and cable length, potentially reducing power consumption by up to 68% compared to standard operation. The switch is powered by an included external power adapter and does not support Power over Ethernet (PoE) or redundant power supplies.
Relevant factors for this section include Total Number of Network Ports, Network (RJ-45), Port/Expansion Slot Details, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This switch delivers essential networking functionality with a focus on simplicity, reliability, and energy efficiency. Its design prioritizes ease of use and low operational costs, making it an ideal choice for basic network expansion needs.
Plug-and-Play Simplicity
Ready to use out of the box with no configuration required. Just connect your devices and the switch handles the rest automatically.
- No software installation
- Auto-negotiation for optimal speed
- Auto-MDI/MDIX eliminates crossover cables
Energy-Efficient Operation
Designed to minimize power usage without sacrificing performance. The switch adjusts power consumption dynamically based on network activity.
- 1.90 W typical consumption
- Up to 68% power saving
- Fanless design reduces energy use
Compact and Versatile Deployment
Small footprint allows placement on desktops or mounting on walls. The white plastic housing blends with various environments.
- Desktop or wall-mountable
- Compact dimensions: 4.10" W × 2.80" D × 0.90" H
- Lightweight plastic construction
Deployment / Use Cases
The TL-SF1005D is well-suited for scenarios where additional wired network ports are needed but advanced features like VLANs, QoS, or management interfaces are unnecessary. Its simplicity makes it accessible to users of all technical levels.
Common applications include extending a home network to connect multiple devices such as gaming consoles, printers, smart TVs, and additional computers. In small office settings, it can serve as a basic workgroup switch to expand connectivity beyond what a router provides. The wall-mount capability allows for neat installation in networking closets, behind desks, or in other space-constrained locations.
Home Network Expansion
Add wired connections for gaming consoles, media streamers, printers, and computers to improve reliability over Wi-Fi.
Small Office Connectivity
Provide additional ports for workstations, IP phones, or network printers in office environments where basic switching suffices.
Physical Profile
The switch features a compact white plastic housing measuring 4.10 inches wide, 2.80 inches deep, and 0.90 inches high (104.14 mm × 71.12 mm × 22.86 mm). This small form factor allows flexible placement on desktops or mounting on walls using appropriate hardware. The lightweight construction and fanless design contribute to quiet operation and easy installation in various environments.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 0.90" (22.86 mm), 4.10" (104.14 mm), 2.80" (71.12 mm). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 4.10" (104.14 mm)
- Depth
- 2.80" (71.12 mm)
- Height
- 0.90" (22.86 mm)
What's in the Box
The package includes everything needed for immediate deployment.
Package contents include 5-Port 10/100Mbps Desktop Switch Power Adapter Installation Guide, 5-Port 10/100Mbps Desktop Switch. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- 5 Fast Ethernet ports for network expansion
- Plug-and-play setup with no configuration required
- IEEE 802.3x flow control for reliable data transfer
- Energy-efficient design with up to 68% power saving
- Auto-MDI/MDIX eliminates need for crossover cables
- Fanless operation for silent performance
- Desktop or wall-mountable form factor
- 2-year limited warranty for peace of mind
Specifications
| Specifications | |
|---|---|
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Manufacturer Part Number | TL-SF1005D |
| Brand Name | TP-Link |
| Product Model | TL-SF1005D |
| Product Name | 5-Port 10/100Mbps Desktop Switch |
| Packaged Quantity | 1 |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 5 |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details | 5 x Fast Ethernet Network |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 10/100Base-TX |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3x |
| Power Description | |
| PoE (RJ-45) Port | No |
| Power Source | Power Adapter |
| Redundant Power Supply Supported | No |
| Power Consumption | 1.90 W |
| Physical Characteristics | |
| Product Color | White |
| Product Material | Plastic |
| Form Factor | Desktop,Wall Mountable |
| Height | 0.90" (22.86 mm) |
| Width | 4.10" (104.14 mm) |
| Depth | 2.80" (71.12 mm) |
| Miscellaneous | |
| Package Contents | 5-Port 10/100Mbps Desktop Switch Power Adapter Installation Guide |
| Environmentally Friendly | Yes |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 2 Year |
FAQ
How many devices can I connect to this switch?
The TP-Link TL-SF1005D provides five Fast Ethernet ports, allowing you to connect up to five wired devices directly. This makes it suitable for expanding a home or small office network to accommodate additional computers, printers, gaming consoles, or other network-enabled equipment.
What is the maximum speed supported by each port?
Each port supports Fast Ethernet speeds of 10 Mbps or 100 Mbps, with auto-negotiation that automatically selects the optimal speed based on the connected device. This switch uses 10/100Base-TX technology over standard twisted pair Ethernet cabling (CAT5 or better).
Does this switch support Power over Ethernet (PoE)?
No, the TL-SF1005D does not support Power over Ethernet. It requires an external power adapter (included) for operation and does not provide power to connected devices through the Ethernet ports. For PoE capabilities, you would need a different switch model specifically designed with PoE support.
Can this switch be mounted on a wall?
Yes, the switch features a wall-mountable design in addition to desktop placement. The compact plastic housing includes mounting points that allow secure installation on vertical surfaces, making it suitable for networking closets, behind furniture, or other space-constrained locations where a clean installation is preferred.
What is the power consumption of this switch?
The switch has a typical power consumption of 1.90 watts. It includes energy-saving technology that automatically adjusts power usage based on link status and cable length, potentially reducing consumption by up to 68% compared to full operation. This makes it an energy-efficient choice for always-on networking applications.
What warranty comes with this product?
TP-Link provides a 2-year limited warranty for the TL-SF1005D switch. This warranty covers defects in materials and workmanship under normal use. The product also comes with unlimited 24/7 technical support at no additional cost to assist with installation or troubleshooting questions.
