TP-LINK TL-SG1008D 8-Port Unmanaged Gigabit Switch - Desktop/Wall Mount - 10/100/1000Base-T - Layer 2 - 4.60W Power
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Product Overview

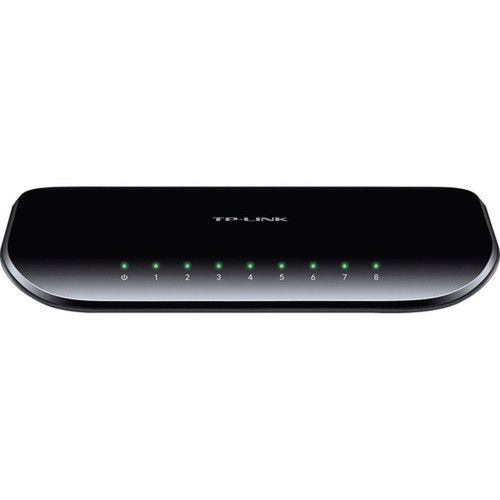

The TP-Link TL-SG1008D is an 8-port unmanaged Gigabit switch designed for straightforward wired network expansion in small offices, home offices, and entertainment setups. It delivers reliable Gigabit Ethernet connectivity across all eight ports, supporting auto-negotiation for seamless integration with existing network devices. This switch operates as a true plug-and-play solution, requiring no configuration or management software, making it ideal for users who need additional wired connections without complexity.
Built with a fanless design, the TL-SG1008D ensures silent operation in any environment, from desktop workspaces to wall-mounted installations. Its compact footprint and low power draw of 4.60 watts contribute to energy efficiency, aligning with environmentally friendly practices. The switch supports key IEEE networking standards, including 802.3x flow control, to maintain stable data transfers and prevent packet loss during high-traffic periods.
Technical Overview
This switch provides full Gigabit Ethernet performance across all eight RJ-45 ports, each capable of 10/100/1000 Mbps speeds with auto-negotiation and Auto-MDI/MDIX support. The Layer 2 switching architecture enables efficient data forwarding within local networks, while compliance with IEEE 802.3i, 802.3u, 802.3ab, and 802.3x standards ensures interoperability with a wide range of networking equipment. The unmanaged design simplifies deployment, as the switch automatically handles network traffic without user intervention.
Power efficiency is a core feature, with the switch dynamically adjusting power consumption based on link status and cable length, achieving up to 80% power savings in idle or low-usage scenarios. The external power adapter supplies consistent operation, and the switch's internal components are optimized for minimal heat generation, eliminating the need for active cooling.
Relevant factors for this section include Total Number of Network Ports, Network (RJ-45), Port/Expansion Slot Details, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The TL-SG1008D excels in delivering reliable, high-speed networking with minimal setup effort. Its plug-and-play functionality allows users to expand their wired networks instantly, connecting devices like computers, printers, gaming consoles, and network-attached storage without configuration headaches. The switch's robust construction and adherence to industry standards ensure long-term stability and compatibility in diverse networking environments.
Energy-Efficient Operation
With a maximum power consumption of 4.60 watts and adaptive power-saving technology, this switch reduces operational costs and environmental impact. The fanless design further enhances efficiency by eliminating moving parts that can wear out or generate noise.
- Up to 80% power savings
- Fanless silent operation
- Low 4.60W power draw
Simplified Connectivity
Auto-negotiation and Auto-MDI/MDIX support remove the need for crossover cables or manual port configuration. Each port automatically detects and adjusts to connected devices, streamlining network expansion for both novice and experienced users.
- No crossover cables required
- Automatic speed and duplex negotiation
- Plug-and-play deployment
Deployment / Use Cases
This switch is well-suited for scenarios where additional wired ports are needed to overcome router limitations or to create dedicated network segments. In home offices, it can connect multiple workstations, printers, and VoIP phones to a single internet source, ensuring consistent Gigabit speeds for data-intensive tasks like file transfers and video conferencing. For entertainment centers, the switch provides stable connections for gaming consoles, streaming devices, and smart TVs, reducing Wi-Fi congestion and latency.
Small business environments benefit from the TL-SG1008D's reliability and ease of use, particularly in retail settings or clinics where networked point-of-sale systems, security cameras, and administrative computers require dependable connectivity. The wall-mountable option allows for discreet installation in tight spaces, such as behind desks or in network closets, while the desktop form factor offers flexibility for temporary or mobile setups.
Home Network Expansion
Ideal for households with multiple wired devices, this switch eliminates the need for Wi-Fi extenders or additional routers. It ensures full Gigabit speeds for online gaming, 4K streaming, and large file downloads across all connected equipment.
- Gaming console connectivity
- Media server integration
- Printer and NAS sharing
Office Connectivity Hub
In small office environments, the switch serves as a central hub for workstations, network printers, and IP phones. Its unmanaged nature reduces IT overhead, while Gigabit ports support collaborative workflows and cloud-based applications.
- Workstation aggregation
- VoIP phone support
- Network printer sharing
Physical Profile
The TL-SG1008D features a compact and versatile design, measuring 7.10 inches in width, 3.50 inches in depth, and 1 inch in height. This slim profile allows for flexible placement on desktops, shelves, or mounted vertically on walls using standard hardware. The switch's lightweight construction and durable casing make it suitable for both permanent installations and portable use, with a finish that resists dust and minor impacts in typical office or home settings.
- Width
- 7.10" (180.34 mm)
- Depth
- 3.50" (88.90 mm)
- Height
- 1" (25.40 mm)
Highlights
- 8 Gigabit Ethernet ports for high-speed wired connections
- Plug-and-play setup with no configuration required
- Fanless design ensures silent operation in any environment
- Auto-MDI/MDIX eliminates need for crossover cables
- IEEE 802.3x flow control for reliable data transfer
- Up to 80% power saving with adaptive consumption
- Desktop and wall-mountable form factor options
- Supports 10/100/1000 Mbps speeds on all ports
Specifications
| Specifications | |
|---|---|
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Manufacturer Part Number | TL-SG1008D |
| Brand Name | TP-Link |
| Product Model | TL-SG1008D |
| Product Name | TL-SG1008D 8-port Unmanaged Gigabit Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 8 |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details | 8 x Gigabit Ethernet Network |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3i,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3x |
| Management & Protocols | |
| Manageable | No |
| Power Description | |
| Power Source | Power Adapter |
| Power Consumption | 4.60 W |
| Physical Characteristics | |
| Form Factor | Desktop,Wall Mountable |
| Height | 1" (25.40 mm) |
| Width | 7.10" (180.34 mm) |
| Depth | 3.50" (88.90 mm) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
FAQ
How many devices can I connect to this switch?
The TP-Link TL-SG1008D provides eight Gigabit Ethernet ports, allowing you to connect up to eight wired devices simultaneously. This includes computers, printers, gaming consoles, network-attached storage, and other Ethernet-enabled equipment, making it suitable for expanding home or small office networks.
Does this switch support Power over Ethernet (PoE)?
No, this switch does not support Power over Ethernet. It is a standard unmanaged Gigabit switch that requires connected devices to have their own power sources. For PoE capabilities, you would need to consider a dedicated PoE switch model from TP-Link's product lineup.
What is the difference between managed and unmanaged switches?
Unmanaged switches, like the TL-SG1008D, operate plug-and-play with no configuration options, making them ideal for simple network expansion. Managed switches offer advanced features like VLANs, QoS, and port monitoring for network control. This switch is unmanaged, prioritizing ease of use and reliability over customization.
Can I mount this switch on a wall?
Yes, the TL-SG1008D is designed for both desktop and wall mounting. Its compact dimensions and included mounting holes allow for secure vertical installation, saving space in network closets, behind desks, or in entertainment centers. The switch's lightweight construction makes wall mounting straightforward with standard hardware.
What networking standards does this switch comply with?
This switch complies with IEEE 802.3i, 802.3u, 802.3ab, and 802.3x standards. These ensure compatibility with 10/100/1000 Mbps Ethernet networks, support auto-negotiation for speed and duplex settings, and include flow control for reliable data transmission, providing a stable foundation for wired connectivity.
How does the power-saving feature work on this switch?
The switch incorporates adaptive power-saving technology that adjusts energy consumption based on link status and cable length. When ports are idle or connected with shorter cables, power usage can drop by up to 80% compared to full operation. This feature, combined with the fanless design, reduces electricity costs and environmental impact without compromising performance.
