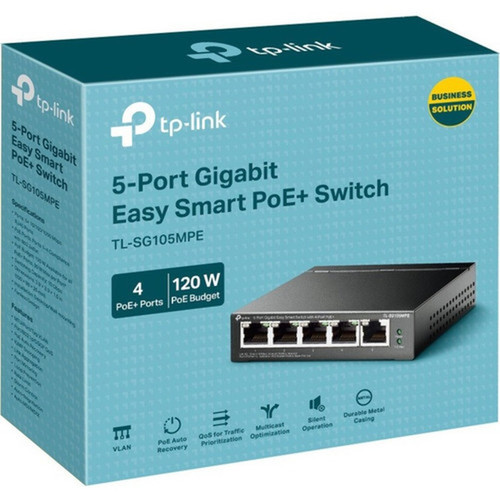

TP-LINK TL-SG105MPE 5-Port Gigabit Easy Smart Switch with 4-Port PoE+ - 120W PoE Budget - Layer 2 - Desktop/Wall Mount
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This switch delivers full Gigabit Ethernet performance across all five ports, supporting 10/100/1000 Mbps auto-negotiation for backward compatibility with existing network infrastructure. The four PoE+ ports comply with IEEE 802.3af/at standards, automatically detecting and delivering appropriate power levels to connected devices up to 30W per port.
Network management is simplified through the Easy Smart interface, which provides essential configuration options without the complexity of fully managed switches. The switch supports key networking standards including IEEE 802.1Q for VLAN support, IEEE 802.1p for Quality of Service prioritization, and IEEE 802.3x for flow control.
Relevant factors for this section include Features, Total Number of Network Ports, Network (RJ-45), Port/Expansion Slot Details. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The TL-SG105MPE combines PoE+ capability with smart switching features in a compact, versatile form factor. Its 120W PoE budget provides substantial power for multiple connected devices, eliminating the need for separate power supplies and reducing cable clutter in deployment environments.
PoE+ Power Delivery
Four PoE+ ports deliver up to 30W per port with automatic device detection and power management, supporting a wide range of PoE-enabled devices.
- 120W total PoE budget
- IEEE 802.3af/at compliant
- Auto-sensing power delivery
Layer 2 Features
Includes essential Layer 2 switching capabilities for improved network management without complex configuration requirements.
- IGMP snooping for multicast optimization
- Port mirroring for network monitoring
- Spanning tree protocol for loop prevention
Compact Deployment
The small footprint and multiple mounting options make this switch suitable for space-constrained environments where traditional rack-mounted switches aren't practical.
- Desktop placement
- Wall mountable
- Metal construction for durability
Deployment / Use Cases
This switch is particularly well-suited for small office, retail, and home office environments where reliable wired connectivity with PoE support is needed. Its compact size and versatile mounting options allow installation in locations where space is limited or traditional networking equipment wouldn't fit.
Common deployment scenarios include powering security camera systems where multiple IP cameras require both data and power over single cables, supporting small business VoIP phone systems, and extending wired network connectivity to areas where wireless coverage is insufficient or unreliable.
Small Office Networking
Provides reliable wired connectivity for workstations, printers, and network storage while powering VoIP phones and wireless access points through PoE+.
Surveillance Systems
Ideal for IP camera installations where multiple cameras need both network connectivity and power delivered through a single cable run.
Physical Profile
The TL-SG105MPE features a compact metal enclosure measuring 3.90 inches wide by 3.90 inches deep by 1 inch tall, making it suitable for desktop placement or wall mounting. The all-metal construction provides durability and effective heat dissipation without requiring cooling fans, ensuring silent operation in office or residential environments.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1" (25.40 mm), 3.90" (99.06 mm), 3.90" (99.06 mm). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 3.90" (99.06 mm)
- Depth
- 3.90" (99.06 mm)
- Height
- 1" (25.40 mm)
Highlights
- 5 Gigabit Ethernet ports with 4 PoE+ ports for device power
- 120W total PoE budget supports multiple powered devices
- Layer 2 switching with IGMP snooping and port mirroring
- Fanless metal design for silent, reliable operation
- Compact form factor suitable for desktop or wall mounting
- Easy Smart interface for simplified network management
- Supports IEEE 802.3af/at PoE standards
- 3-year limited warranty for peace of mind
Specifications
| Specifications | |
|---|---|
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Manufacturer Part Number | TL-SG105MPE |
| Brand Name | TP-Link |
| Product Line | EasySmart |
| Product Model | TL-SG105MPE |
| Product Name | 5-Port Gigabit Easy Smart Switch with 4-Port PoE+ |
| Product Type | Ethernet Switch |
| Technical Information | |
| Features | Fanless |
| Interfaces/Ports | |
| Total Number of Network Ports | 5 |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details | 4 x Gigabit Ethernet PoE+,1 x Gigabit Ethernet Network |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3i,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3x,IEEE 802.1Q,IEEE 802.1p,IEEE 802.3af,IEEE 802.3at |
| Management & Protocols | |
| Manageable | No |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 120 W |
| Power Source | Power Adapter |
| Power Consumption | 4.34 W |
| Physical Characteristics | |
| Product Material | Metal |
| Form Factor | Desktop,Compact,Wall Mountable |
| Height | 1" (25.40 mm) |
| Width | 3.90" (99.06 mm) |
| Depth | 3.90" (99.06 mm) |
| Miscellaneous | |
| Country of Origin | Vietnam |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
How many devices can this switch power with PoE?
The TL-SG105MPE has four PoE+ ports with a total power budget of 120W. This allows it to power multiple PoE-enabled devices simultaneously, such as IP cameras, wireless access points, or VoIP phones. Each PoE+ port can deliver up to 30W, and the switch automatically manages power allocation based on connected device requirements.
What Layer 2 features does this switch support?
This Easy Smart switch supports essential Layer 2 features including IGMP snooping for efficient multicast traffic management, port mirroring for network monitoring and troubleshooting, and spanning tree protocol to prevent network loops. These features provide more control than basic unmanaged switches while maintaining straightforward configuration through the Easy Smart interface.
Can this switch be mounted on a wall?
Yes, the TL-SG105MPE is designed for both desktop placement and wall mounting. Its compact dimensions of 3.90" × 3.90" × 1" and metal construction make it suitable for installation in various environments. The switch includes mounting provisions for secure wall installation in locations where desktop space is limited.
What is the difference between this Easy Smart switch and a fully managed switch?
Easy Smart switches like the TL-SG105MPE provide essential management features without the complexity of fully managed switches. They offer key Layer 2 functionality such as VLAN support, QoS prioritization, and port management through a simplified interface, making them ideal for small networks where advanced features like CLI access, SNMP monitoring, or complex routing protocols aren't required.
What type of network cables does this switch support?
The TL-SG105MPE supports standard twisted pair Ethernet cables (CAT5e, CAT6, or higher) for network connections. It's compatible with 10/100/1000Base-T network technology, allowing it to work with existing cable infrastructure while delivering Gigabit speeds. The switch supports cable runs up to 100 meters as per Ethernet standards.
Does this switch require active cooling with fans?
No, the TL-SG105MPE features a fanless design that operates silently. The metal housing provides effective passive cooling through heat dissipation, making this switch suitable for office environments, retail spaces, or residential areas where noise from cooling fans would be disruptive. The low power consumption of 4.34W contributes to minimal heat generation.
