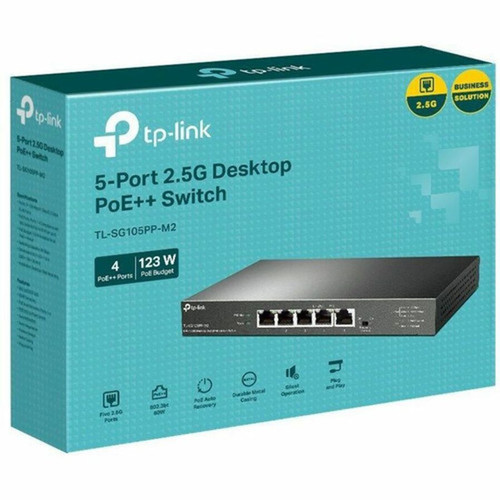

TP-LINK TL-SG105PP-M2 5-Port 2.5G Desktop Switch - 4-Port PoE++ - 123W Budget - Fanless
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The switch supports Layer 2 networking with 2.5 Gigabit Ethernet technology across all five RJ-45 ports. It complies with IEEE 802.3af, 802.3at, and 802.3bt standards for PoE, ensuring compatibility with a wide range of powered devices. Each PoE++ port can deliver up to 60W, with a total budget of 123W across all PoE ports.
Built with a steel chassis, the TL-SG105PP-M2 includes QoS (Quality of Service) via 802.1p/DSCP to prioritize latency-sensitive traffic like voice and video. Its PoE Auto Recovery feature automatically reboots unresponsive powered devices to maintain network stability without manual intervention.
Relevant factors for this section include Features, Total Number of Network Ports, Network (RJ-45), Port/Expansion Slot Details. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The switch's plug-and-play functionality makes it accessible for users without networking expertise, while its compact desktop form factor allows flexible placement on desks, shelves, or wall mounts. The included rubber feet provide stability on various surfaces.
High-Speed PoE++
Four ports combine 2.5G data speeds with PoE++ power delivery up to 60W per port, supporting demanding devices like high-resolution cameras or multi-radio access points.
- Up to 60W per PoE++ port
- Total 123W PoE budget
- Single-cable data and power
Silent Operation
Fanless design eliminates moving parts, reducing noise and potential failure points for reliable performance in quiet office or residential settings.
- No cooling fan noise
- Enhanced reliability
- Low maintenance
Deployment / Use Cases
Ideal for small office environments, the TL-SG105PP-M2 efficiently connects computers, printers, and servers while powering PoE devices like security cameras, wireless access points, and IP phones. Its 2.5G ports offer future-proofing for bandwidth-intensive applications without requiring a full network overhaul.
In retail or hospitality settings, this switch can support point-of-sale systems, digital signage, and surveillance cameras, with PoE simplifying installation by reducing cable clutter. Home offices benefit from its silent operation and ability to power devices like VoIP phones or small access points directly from the switch.
Small Business Network
Connects workstations and peripherals while powering security cameras and access points, creating an integrated network with reduced wiring.
- Unified data and power
- Scalable for growth
- Easy setup
Remote Work Setup
Provides high-speed connectivity for home offices with power to devices like IP phones or Wi-Fi extenders, enhancing productivity without complex configuration.
- Quiet operation
- Compact footprint
- Plug-and-play
Physical Profile
Measuring 8.23" wide, 4.96" deep, and 1.02" high, the switch has a low-profile design that fits easily on desktops or in tight spaces. Its steel construction ensures durability, while the black finish blends with most office equipment. Wall-mount capability offers installation flexibility, and the included rubber feet prevent sliding on smooth surfaces.
- Width
- 8.23" (209 mm)
- Depth
- 4.96" (126 mm)
- Height
- 1.02" (26 mm)
What's in the Box
The package includes everything needed for immediate setup and operation.
Highlights
- 5× 2.5 Gigabit Ethernet ports with auto-negotiation down to 10/100/1000 Mbps
- 4 PoE++ ports deliver up to 60W each with a total budget of 123W
- Fanless design for silent operation in office or residential environments
- Plug-and-play setup requires no configuration or management software
- Supports IEEE 802.3af/at/bt standards for broad PoE device compatibility
- PoE Auto Recovery automatically reboots unresponsive powered devices
- 802.1p/DSCP QoS prioritizes voice, video, and latency-sensitive traffic
- Wall-mountable or desktop placement with included rubber feet
- Steel construction in black finish for durability and aesthetics
- RoHS compliant for environmentally responsible manufacturing
Specifications
| Specifications | |
|---|---|
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Manufacturer Part Number | TL-SG105PP-M2 |
| Brand Name | TP-Link |
| Product Model | TL-SG105PP-M2 |
| Product Name | 5-Port 2.5G Desktop Switch with 4-Port PoE++ |
| Product Type | Ethernet Switch |
| Technical Information | |
| Features | Fanless |
| Interfaces/Ports | |
| Total Number of Network Ports | 5 |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details | 5 x 2.5 Gigabit Ethernet PoE++ |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Network Technology | 2.5GBase-T |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE802.3af,IEEE 802.3at,IEEE 802.3bt,IEEE 802.3x,IEEE 802.1p,IEEE 802.3ab,IEEE 802.3 |
| Management & Protocols | |
| Manageable | No |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 123 W |
| Input Voltage | 53.5 V DC |
| Power Source | Power Adapter |
| Power Consumption | 143.37 W |
| Physical Characteristics | |
| Product Color | Black |
| Product Material | Steel |
| Form Factor | Wall Mountable,Desktop |
| Height | 1.02" (26 mm) |
| Width | 8.23" (209 mm) |
| Depth | 4.96" (126 mm) |
| Miscellaneous | |
| Package Contents | 5-Port 2.5G Desktop Switch with 4-Port PoE++ Power Adapter Installation Guide Rubber Feet |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
User Manual
FAQ
How many PoE ports does this switch have, and what is the total power budget?
The TP-Link TL-SG105PP-M2 has four PoE++ ports that support Power over Ethernet. The total PoE budget is 123 watts, with each PoE++ port capable of delivering up to 60 watts individually. This allows the switch to power multiple high-demand devices like access points, cameras, or phones simultaneously without exceeding its power capacity.
What Ethernet speeds are supported by the ports on this switch?
All five RJ-45 ports support 2.5 Gigabit Ethernet speeds, which is 2.5 times faster than standard Gigabit Ethernet. They are backward compatible with 10 Mbps, 100 Mbps, and 1 Gbps devices, automatically negotiating the highest common speed. This makes the switch suitable for both current and legacy network equipment while providing headroom for future upgrades.
Is this switch manageable, and does it require configuration?
No, this switch is not manageable and operates as a plug-and-play device. It requires no configuration, software, or management interface, making it ideal for users who need a simple, reliable network connection without advanced networking knowledge. Features like auto-negotiation and PoE Auto Recovery work automatically to maintain network stability.
What PoE standards does the switch support for device compatibility?
The switch supports IEEE 802.3af (PoE), 802.3at (PoE+), and 802.3bt (PoE++) standards. This broad compatibility ensures it can power a wide range of devices, from low-power IP phones and sensors to high-power access points and cameras that require up to 60W per port. It automatically detects and delivers the appropriate power level to each connected device.
Can this switch be wall-mounted, and what are its physical dimensions?
Yes, the switch is designed for both desktop and wall-mount installation. Its dimensions are 8.23 inches wide, 4.96 inches deep, and 1.02 inches high, with a compact form factor that saves space. The steel chassis provides durability, and included rubber feet offer stability on desks, while wall-mounting options allow for flexible placement in offices or retail environments.
Does the switch have any features to improve network performance for voice or video?
Yes, the switch includes 802.1p/DSCP Quality of Service (QoS) to prioritize latency-sensitive traffic like VoIP calls or video streaming. This ensures smoother performance by reducing jitter and packet loss for critical applications. Additionally, the fanless design eliminates noise that could interfere with audio devices in quiet settings.
