TP-LINK TL-SG108S-M2 8-Port 2.5G Multi-Gigabit Desktop Switch - 5 RJ-45 Ports - Layer 2 - Fanless - Wall Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This Layer 2 switch supports 2.5 Gigabit Ethernet technology over twisted pair cabling, enabling data transfer speeds up to 2.5 Gbps per port while maintaining compatibility with standard Cat5e or better cables. The switch implements IEEE 802.3bz networking standards alongside foundational protocols including IEEE 802.3i, 802.3u, 802.3ab, 802.3x, and 802.1p for reliable network operation.
The TL-SG108S-M2 provides a complete feature set including IGMP snooping for efficient multicast traffic handling, port mirroring for network monitoring and troubleshooting, and spanning tree protocol for network loop prevention. These capabilities ensure stable network performance even in environments with multiple connected devices.
Relevant factors for this section include Features, Total Number of Network Ports, Network (RJ-45), Port/Expansion Slot Details. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The TL-SG108S-M2 delivers multi-gigabit performance without the complexity of managed switches, making it ideal for users who need faster network speeds but prefer plug-and-play simplicity. Its 2.5G Ethernet capability provides a significant throughput improvement over standard gigabit switches while maintaining backward compatibility with existing network infrastructure.
Enhanced Throughput
Five 2.5 Gigabit Ethernet ports deliver 2.5x the bandwidth of traditional gigabit ports, supporting faster file transfers, smoother media streaming, and improved performance for bandwidth-intensive applications.
- 2.5 Gbps per port maximum speed
- Backward compatible with 1G/100M/10M devices
- Supports twisted pair cables up to 100 meters
Simplified Deployment
As an unmanaged switch, the TL-SG108S-M2 requires no configuration or management software, allowing immediate network expansion with minimal technical expertise. The included installation guide and rubber feet facilitate quick setup in various environments.
- No configuration required
- Plug-and-play operation
- Includes comprehensive installation materials
Deployment / Use Cases
This switch is particularly well-suited for small office environments where multiple workstations need to share files, access network-attached storage, or connect to high-speed internet services. The 2.5G capability makes it effective for creative professionals working with large media files, small businesses implementing network backups, or home users building media server setups.
The wall-mountable design allows installation in network closets, behind entertainment centers, or in other space-constrained locations where cable organization is important. The fanless operation ensures silent performance in quiet office environments or residential settings where noise reduction matters.
Small Business Networking
Connect multiple workstations, printers, and network storage devices with enhanced throughput for collaborative work environments and efficient data sharing between departments.
Home Office Expansion
Upgrade home network infrastructure to support multiple computers, gaming consoles, streaming devices, and smart home equipment with improved bandwidth for simultaneous high-demand activities.
Physical Profile

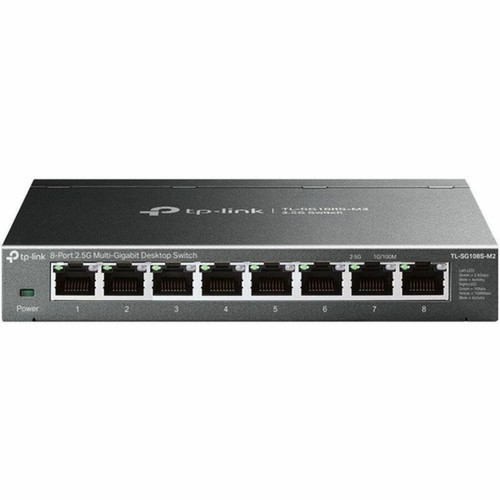

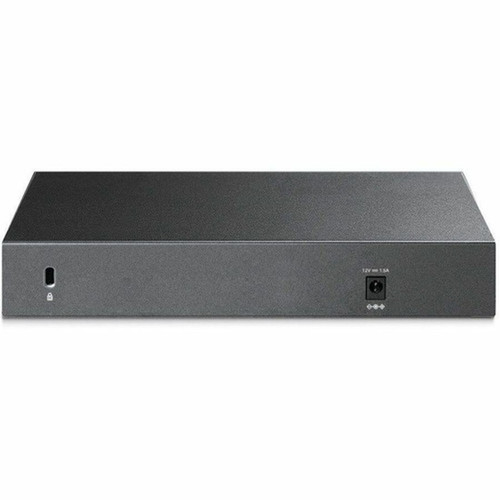

The switch features a compact metal enclosure measuring 1" (25.40 mm) in height, 6.20" (157.48 mm) in width, and 4" (101.60 mm) in depth, creating a minimal desktop footprint. The metal construction provides durability and effective heat dissipation without requiring active cooling, resulting in completely silent operation. Wall mounting capability allows vertical or horizontal installation to optimize space utilization in various deployment scenarios.
- Width
- 6.20" (157.48 mm)
- Depth
- 4" (101.60 mm)
- Height
- 1" (25.40 mm)
What's in the Box
The package includes all necessary components for immediate deployment and operation of the switch in your network environment.
Highlights
- Five 2.5 Gigabit Ethernet RJ-45 ports for enhanced network throughput
- Layer 2 switching with IGMP snooping, port mirroring, and spanning tree protocol
- Fanless metal housing for silent operation and durable construction
- Wall-mountable design for flexible installation and cable management
- Unmanaged operation for plug-and-play deployment without configuration
- Supports twisted pair cabling with 100-meter maximum distance
- Compact desktop form factor with minimal space requirements
- Low power consumption at 8.87 watts for energy-efficient operation
- Compliant with RoHS environmental standards
- Includes power adapter, installation guide, and rubber feet
Specifications
| Specifications | |
|---|---|
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Manufacturer Part Number | TLSG108SM2 |
| Brand Name | TP-Link |
| Product Model | TL-SG108S-M2 |
| Product Name | 8-Port 2.5G Multi-Gigabit Desktop Switch |
| Product Type | Ethernet Switch |
| Technical Information | |
| Features | Fanless |
| Interfaces/Ports | |
| Total Number of Network Ports | 5 |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details | 8 x 2.5 Gigabit Ethernet Network |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Network Technology | 2.5GBase-T |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3i,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3x,IEEE 802.1p,IEEE 802.3bz |
| Management & Protocols | |
| Manageable | No |
| Power Description | |
| Input Voltage | 12 V DC |
| Power Source | DC |
| Power Consumption | 8.87 W |
| Physical Characteristics | |
| Product Material | Metal |
| Form Factor | Desktop,Wall Mountable |
| Height | 1" (25.40 mm) |
| Width | 6.20" (157.48 mm) |
| Depth | 4" (101.60 mm) |
| Miscellaneous | |
| Package Contents | 8-Port 2.5G Multi-Gigabit Desktop Switch Power Adapter Installation Guide Rubber Feet |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
User Manual
FAQ
How many network ports does the TL-SG108S-M2 switch have?
The TP-Link TL-SG108S-M2 features five RJ-45 network ports that support 2.5 Gigabit Ethernet speeds. These ports provide connectivity for multiple devices including computers, printers, network storage, and other Ethernet-enabled equipment while delivering enhanced throughput compared to standard gigabit switches.
Is this switch managed or unmanaged?
The TL-SG108S-M2 is an unmanaged switch, meaning it requires no configuration, management software, or ongoing administration. This makes it ideal for users who need reliable network expansion without the complexity of managed switch features, offering plug-and-play operation for immediate deployment in various environments.
What Layer does this network switch support?
This switch operates at Layer 2 of the OSI model, providing basic switching functions including MAC address learning and forwarding. Layer 2 capability enables efficient local network traffic management with features like IGMP snooping for multicast optimization and spanning tree protocol for network loop prevention.
Can the TL-SG108S-M2 be mounted on a wall?
Yes, the switch features a wall-mountable design that allows installation on vertical surfaces. This capability helps organize cables and conserve desk space, making it suitable for installations in network closets, behind equipment racks, or in other locations where clean cable management is important.
What type of cables does this switch support?
The TL-SG108S-M2 supports standard twisted pair Ethernet cables (Cat5e or better) using 2.5GBase-T technology. These cost-effective cables can transmit data at 2.5 Gbps speeds over distances up to 100 meters, providing flexibility in network layout while maintaining compatibility with existing cable infrastructure.
What is the power consumption of this switch?
The switch consumes 8.87 watts of power during operation, making it energy-efficient for continuous use. It operates on 12V DC power supplied through the included adapter, and the fanless design eliminates power consumption associated with active cooling while ensuring silent performance.
