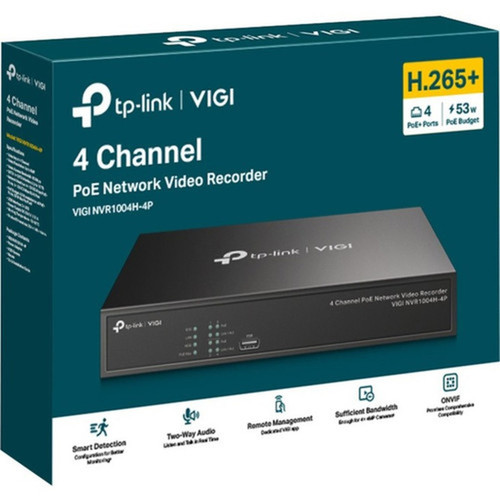

TP-LINK VIGI NVR1004H-4P 4-Channel PoE+ Network Video Recorder - 4K Recording - 8MP - HDMI - Motion Detection
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This NVR handles video streams using H.265+, H.264+, and H.265 codecs, which compress footage efficiently to conserve storage while maintaining 4K quality. The 30 fps maximum frame rate ensures smooth playback for real-time monitoring or review. Four PoE+ channels power and connect compatible cameras over a single Ethernet cable, simplifying cabling and reducing installation complexity.
Network connectivity is wired-only, providing stable, high-bandwidth data transfer for uninterrupted recording. The system supports up to 8MP resolution per channel, capturing fine details essential for identification and evidence. Audio input and output ports enable integration with microphones and speakers for comprehensive surveillance setups.
This section brings together practical product details such as Total Number of Channels, Connectivity Technology, Recording Formats, Video Formats, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The VIGI NVR1004H-4P combines essential surveillance features in a cost-effective package. Its 4-channel capacity addresses common small business needs without over-provisioning, while 4K and 8MP capabilities future-proof video quality. Motion detection reduces storage usage by recording only when activity occurs, extending hard drive life and simplifying footage review.
Simplified Installation
PoE+ support delivers power and data over Ethernet, minimizing cable runs and electrical work. The included mounting screws and rubber feet facilitate secure placement on desks or in racks.
- Single-camera cabling
- Reduced power outlets needed
- Flexible mounting options
Enhanced Monitoring
HDMI and VGA outputs allow direct connection to monitors for local viewing, while remote management enables access from mobile devices or computers. Dual USB ports support mouse control and external storage expansion.
- Local and remote access
- Dual display support
- Peripheral connectivity
Deployment / Use Cases
This recorder is ideal for environments where reliable, high-quality video surveillance is needed without excessive complexity. Small offices benefit from its 4-channel limit, covering entryways, lobbies, and storage areas with clear 4K footage. Retail stores can use motion detection to monitor after-hours activity while conserving storage.
Light industrial settings, such as workshops or warehouses, leverage the wide operating temperature range and durable construction for consistent performance. Educational institutions deploy it in administrative areas or corridors for security oversight. The compact size allows discreet installation in network closets or under desks, maintaining a clean aesthetic.
Small Business Security
Monitor entrances, cash registers, and inventory areas with up to four cameras. The 8MP resolution ensures license plates and facial features are discernible for incident review.
Remote Site Management
Use remote management to check feeds from multiple locations without on-site visits. This is valuable for multi-location operations or after-hours monitoring.
Physical Profile
The NVR measures 9.69 inches wide, 5.83 inches deep, and 1.77 inches high (246.2 x 148.2 x 45 mm), fitting easily in standard network racks or on desktop surfaces. Its slim profile conserves space in crowded IT environments. The unit operates reliably in temperatures from 14°F to 131°F (-10°C to 55°C), accommodating unheated storage areas or warm server rooms. Rubber feet included in the package prevent slipping and reduce vibration noise.
- Width
- 9.69" (246.20 mm)
- Depth
- 5.83" (148.20 mm)
- Height
- 1.77" (45 mm)
What's in the Box
The package includes all necessary components for quick setup and operation.
Highlights
- 4-channel PoE+ NVR for small-to-mid surveillance deployments
- Supports 4K recording at up to 8MP resolution per channel
- H.265+, H.264+, and H.265 video compression for efficient storage
- Motion detection reduces unnecessary recording and storage use
- HDMI and VGA outputs enable local monitoring on displays
- Dual USB 2.0 ports for mouse control and external storage
- Remote management allows access from anywhere via network
- Compact design fits in racks or on desktops with low 4.25W power draw
- Wide operating temperature range from 14°F to 131°F (-10°C to 55°C)
- Includes mounting hardware and guide for straightforward installation
Specifications
| Specifications | |
|---|---|
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Manufacturer Part Number | VIGI NVR1004H-4P |
| Brand Name | TP-Link |
| Product Line | VIGI |
| Product Model | NVR1004H-4P |
| Product Name | VIGI 4 Channel PoE+ Network Video Recorder |
| Product Type | Video Surveillance Station |
| Technical Information | |
| Total Number of Channels | 4 |
| Connectivity Technology | Wired |
| Recording Formats | 4K |
| HD Recording | Yes |
| System Components | Network Video Recorder |
| Features | Motion Detection |
| Video | |
| Video Formats | H.265+,H.264+,H.265 |
| Maximum Resolution | 8MP |
| Maximum Frame Rate | 30 fps |
| Network & Communication | |
| Ethernet | Yes |
| Remote Management | Yes |
| Interfaces/Ports | |
| USB | Yes |
| USB Standard | USB 2.0 |
| Number of USB Ports | 2 |
| Total Number of Audio In Ports | 1 |
| Total Number of Audio Out Ports | 1 |
| Number of VGA Out | 1 |
| HDMI | Yes |
| Power Description | |
| Power Consumption | 4.25 W |
| Physical Characteristics | |
| Height | 1.77" (45 mm) |
| Width | 9.69" (246.20 mm) |
| Depth | 5.83" (148.20 mm) |
| Environmental Conditions | |
| Minimum Operating Temperature | 14°F (-10°C) |
| Maximum Operating Temperature | 131°F (55°C) |
| Miscellaneous | |
| Package Contents | VIGI Network Video Recorder Power Adapter HDD Screws Rubber Feet Mouse Quick Installation Guide |
FAQ
How many cameras can the VIGI NVR1004H-4P support?
This NVR supports up to four cameras. Each channel provides PoE+ power and data connectivity, allowing you to connect four compatible IP cameras directly without separate power supplies. It's designed for small-to-mid-range setups like offices or retail spaces.
What is the maximum video resolution supported?
The recorder handles video at up to 8MP resolution per channel, which is suitable for capturing detailed footage. It also supports 4K recording formats, ensuring high-definition video quality for clear monitoring and evidence purposes.
Does this NVR include a hard drive?
No, a hard drive is not included in the package. The unit comes with HDD screws for installing a compatible SATA hard drive separately. You'll need to add a drive to store recorded footage; capacity depends on your storage needs and video settings.
Can I monitor footage remotely?
Yes, remote management is supported. You can access the NVR's live feeds and recorded video from computers or mobile devices over a network. This feature allows for off-site monitoring and configuration without being physically present at the recorder.
What video compression formats does it use?
It uses H.265+, H.264+, and H.265 codecs. These advanced compression technologies reduce file sizes while maintaining video quality, helping to conserve storage space and bandwidth. This is particularly useful for longer retention periods or higher-resolution recordings.
What are the physical dimensions of the NVR?
The dimensions are 9.69 inches wide, 5.83 inches deep, and 1.77 inches high (246.2 x 148.2 x 45 mm). This compact size makes it easy to install in network racks, on desks, or in other confined spaces, and it includes rubber feet for stable placement.
What display size or resolution is listed?
It features a display specification of 8MP, giving you clear visuals for work and media use.
