TP-LINK VIGI C240I(2. 8MM) VIGI C240I 4MP Dome Network Camera - 2. 8mm Lens - Color - 2560 x 1440 - 98. 43 ft IR Night Vision - H. 265+ - IP67 IK10
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera utilizes a 1/3" CMOS image sensor that balances power efficiency with high-definition video performance. The fixed 2.8mm lens with an f/2.2 aperture captures detailed imagery even in low-light conditions, supported by infrared LEDs that illuminate up to 98.43 feet (30 meters) for reliable night vision.
Network connectivity is handled through a wired Fast Ethernet RJ-45 port, enabling stable data transmission and remote management capabilities. The camera's durability is certified with an IP67 rating for dust and water resistance and an IK10 impact protection rating, ensuring resilience against physical tampering and environmental extremes.
This section brings together practical product details such as HD Recording, Night Vision, Night Vision Distance, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The VIGI C240I integrates intelligent features such as human detection, vehicle detection, motion detection, and cross-line detection to reduce false alarms and focus on relevant security events. Wide dynamic range (WDR) and 3D digital noise reduction enhance image quality in high-contrast and low-light situations, ensuring usable footage across varying conditions.
High-Definition Clarity
4-megapixel resolution at 2560x1440 provides crisp, detailed footage essential for identifying faces, license plates, and other critical details in surveillance scenarios.
Advanced Video Efficiency
Support for H.265+, H.265, H.264, and H.264+ compression reduces bandwidth and storage requirements by up to 50% compared to older codecs, lowering total cost of ownership.
Rugged Outdoor Readiness

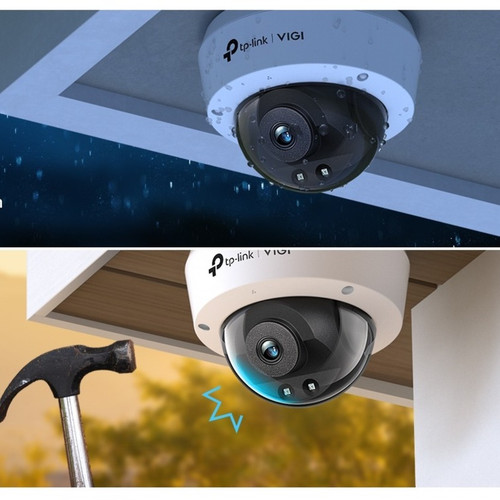

IP67 and IK10 ratings guarantee protection against dust, water, vandalism, and impacts, allowing deployment in challenging environments like parking lots, warehouses, and perimeter fencing.
Deployment / Use Cases
This dome camera is ideal for commercial and industrial surveillance applications where reliability and image quality are paramount. Its discreet dome form factor deters tampering while providing a 360° mounting flexibility for optimal angle adjustment.

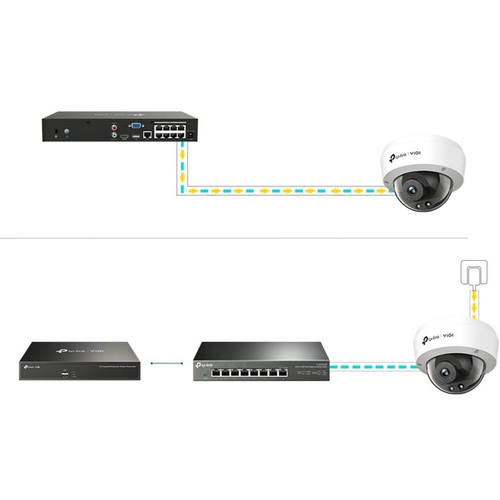

Common use cases include retail stores for monitoring entrances and aisles, office buildings for lobby and hallway security, manufacturing facilities for equipment oversight, and outdoor areas like parking garages or building perimeters where environmental durability is critical. The PoE support simplifies installation in networked systems, reducing wiring complexity and enabling centralized power management through compatible network switches.
Retail & Commercial Security
Monitor high-traffic areas, cash registers, and inventory storage with clear 4MP video and intelligent detection to prevent theft and ensure safety.
Industrial & Warehouse Monitoring
Withstand dust, moisture, and temperature fluctuations in warehouses or factories while providing detailed oversight of operations and access points.
Physical Profile
The camera measures 4.53" (115 mm) in height and width, with a depth of 3.39" (86 mm), featuring a compact dome design that blends into various architectural settings. Its vandal-resistant construction includes a rugged housing that protects internal components from physical damage. The dome form factor allows for ceiling or wall mounting, with adjustable positioning to achieve the desired viewing angle. The included M12-mount lens ensures secure attachment and maintains optical alignment over time.
- Width
- 4.53" (115 mm)
- Depth
- 3.39" (86 mm)
- Height
- 4.53" (115 mm)
- Length
- 2.8 mm (0.11")
Highlights
- 4-megapixel resolution for detailed 2560x1440 video at 30 fps
- 98.43 ft (30 m) infrared night vision for 24/7 surveillance
- IP67 and IK10 ratings for dust, water, and vandal resistance
- H.265+, H.265, H.264, and H.264+ video compression support
- Fixed 2.8mm lens with 88.8° horizontal field of view
- Power over Ethernet (PoE) or 12V DC input options
- Wide operating temperature range from -22°F to 140°F (-30°C to 60°C)
- Advanced features: human detection, vehicle detection, motion detection, WDR
- Fast Ethernet connectivity with remote management capability
- M12-mount lens included for easy installation
Specifications
| Specifications | |
|---|---|
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Manufacturer Part Number | VIGI C240I(2.8MM) |
| Brand Name | TP-Link |
| Product Line | VIGI |
| Product Model | C240I |
| Product Name | VIGI 4MP IR Dome Network Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Night Vision | Yes |
| Night Vision Distance | 98.43 ft (30 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Image Sensor Size | 1/3" |
| Color Supported | Color |
| Field of View | 88.8°/48.9°/106.5°(H/V/D) |
| Effective Camera Resolution | 4 Megapixel |
| Video | |
| Video Formats | H.265+,H.265,H.264,H.264+ |
| Maximum Video Resolution | 2560 x 1440 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 2.8 mm (0.11") |
| Lens Included | Yes |
| Lens Mount Type | M12-mount |
| Maximum Aperture | f/2.2 |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Ethernet Technology | Fast Ethernet |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC |
| Power Source Type | PoE,DC |
| Physical Characteristics | |
| Form Factor | Dome |
| Durability | Vandal Proof,Water Proof,Vandal Resistant,Rain Resistant,Dust Resistant,Weather Proof |
| Height | 4.53" (115 mm) |
| Width | 4.53" (115 mm) |
| Depth | 3.39" (86 mm) |
| Environmental Conditions | |
| Minimum Operating Temperature | -22°F (-30°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Miscellaneous | |
| Features | Human Detection,Vehicle Detection,Rugged Design,Wide Dynamic Range,3D Digital Noise Reduction,Alarm Triggering,Motion Detection,Cross Line Detection,Password Protection,HTTPS Encryption,Mirror,Privacy Masking |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP67 |
User Manual
FAQ
What is the resolution and video quality of this camera?
The TP-Link VIGI C240I delivers 4-megapixel resolution at 2560 x 1440 pixels, providing high-definition video clarity essential for identifying details like faces or license plates. It records at 30 frames per second for smooth motion capture and supports advanced compression formats including H.265+ to optimize bandwidth and storage usage without sacrificing image quality.
How far does the night vision reach and what type is it?
This camera features infrared night vision with an effective range of 98.43 feet (30 meters). The infrared LEDs automatically activate in low-light conditions, enabling clear monochrome video during nighttime or in poorly lit environments, ensuring continuous surveillance coverage around the clock.
Is this camera suitable for outdoor use?
Yes, the VIGI C240I is built for outdoor and harsh environments with an IP67 rating for dust and water resistance and an IK10 impact protection rating. It operates reliably in temperatures from -22°F to 140°F (-30°C to 60°C), making it ideal for exterior installations like parking lots, building perimeters, or industrial sites.
What power options are available for this network camera?
The camera supports dual power input methods: Power over Ethernet (PoE) via the RJ-45 network connection or a separate 12V DC power adapter. PoE simplifies installation by combining data and power over a single cable, reducing wiring complexity and enabling integration with PoE switches for centralized management.
What intelligent detection features does this camera include?
It includes advanced analytics such as human detection, vehicle detection, motion detection, and cross-line detection to minimize false alarms and focus on relevant security events. Additional features like wide dynamic range (WDR) and 3D digital noise reduction enhance image quality in challenging lighting conditions, providing more accurate and usable surveillance footage.
What is the field of view and lens specification?
The camera comes with a fixed 2.8mm lens that offers a field of view of 88.8° horizontally, 48.9° vertically, and 106.5° diagonally. This wide coverage is suitable for monitoring broad areas like entrances or open spaces. The lens uses an M12 mount and has an aperture of f/2.2 for better light intake in various lighting scenarios.
What display size or resolution is listed?
It features a display specification of 4 Megapixel, giving you clear visuals for work and media use.
