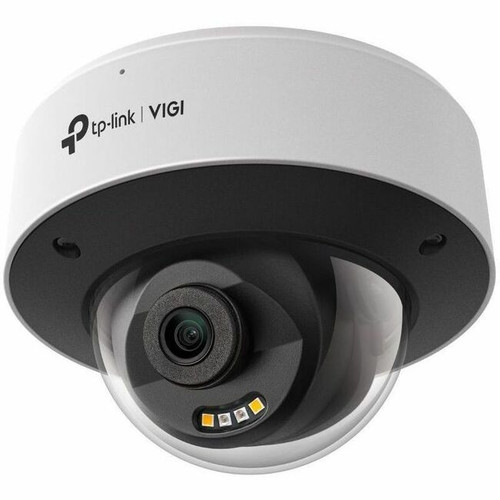

VIGI INSIGHT S245(4MM) INSIGHT S245 - 4MM 4MP Full-Color Dome Network Camera - 4mm Fixed Lens - 30m Night Vision - IP67/IK10 - PoE/DC
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the INSIGHT S245 is a 1/2.7" CMOS sensor that captures 4MP video at resolutions up to 2688 x 1520. The fixed 4mm lens offers a wide 88° horizontal field of view, while the f/1.6 aperture maximizes light intake for clear low-light performance.
The camera supports H.265+ compression alongside legacy H.264 formats, optimizing bandwidth and storage efficiency. Fast Ethernet connectivity ensures stable network integration, with remote management capabilities for centralized control.
This section brings together practical product details such as HD Recording, Night Vision, Night Vision Distance, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
This camera combines high-resolution imaging with intelligent features to reduce false alarms and enhance security effectiveness. Its 24/7 full-color capability ensures detailed footage even in low-light scenarios, supported by infrared and color night vision up to 30 meters.
Smart Detection
AI algorithms distinguish between humans and vehicles, triggering accurate alerts and reducing unnecessary notifications.
- Human Detection
- Vehicle Detection
- Alarm Triggering
Robust Construction
The metal dome housing withstands extreme weather, vandalism, and moisture, backed by IP67 and IK10 certifications.
- Weather Proof
- Vandal Proof
- Water Proof
Flexible Power Options
Supports both 12V DC and Power over Ethernet (PoE), simplifying installation and reducing cable clutter.
- PoE Compatible
- Low Power Consumption
- Easy Deployment
Deployment / Use Cases
The VIGI INSIGHT S245 is ideal for commercial, retail, and industrial surveillance where reliable, high-quality monitoring is essential. Its durability and full-color imaging make it suitable for perimeter security, entry points, and high-traffic areas.
Common applications include storefronts, warehouses, parking lots, and office buildings. The camera's AI analytics help operators focus on relevant events, while local SD card storage provides backup recording in case of network interruptions.
This section brings together practical product details such as HD Recording, Night Vision, Night Vision Distance, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Retail Security
Monitor entrances, aisles, and cash registers with clear color video and smart detection for theft prevention.
Industrial Monitoring
Withstand harsh environments while providing detailed footage of loading docks, storage yards, and equipment areas.
Physical Profile

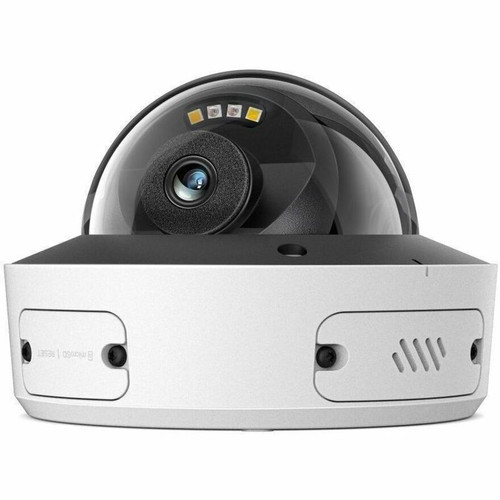

The dome camera measures 4.80" in diameter and 3.50" in height, with a compact footprint that blends into most environments. Its metal construction adds durability without excessive weight, at 1.37 pounds. The included mounting accessories support secure installation on walls or ceilings, with waterproof cable attachments for outdoor use.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 3.50" (88.90 mm), 4.80" (121.92 mm), 1.37 lb (620 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 4.80" (121.92 mm)
- Height
- 3.50" (88.90 mm)
- Weight
- 1.37 lb (620 g)
- Length
- 4 mm (0.16")
What's in the Box
The package includes all necessary components for immediate deployment.
Highlights
- 4MP resolution for detailed full-color surveillance
- AI-powered human and vehicle detection
- 30-meter night vision with infrared and color modes
- IP67 waterproof and IK10 vandal-proof ratings
- H.265+ compression for efficient bandwidth use
- PoE and 12V DC power options
- Wide 88° horizontal field of view
- Built-in microphone for audio support
Specifications
| Specifications | |
|---|---|
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Manufacturer Part Number | INSIGHT S245(4MM) |
| Brand Name | VIGI |
| Product Line | InSight |
| Product Model | S245 |
| Product Name | 4MP Full-Color Dome Network Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Night Vision | Yes |
| Night Vision Distance | 98.43 ft (30 m) |
| Night Vision Type | Infrared/Color |
| Number of IR LEDs | 2 |
| Wide Dynamic Range Detail | 120 dB |
| AI-powered | Yes |
| Infrared (IR) Cut-off Filter | Yes |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Image Sensor Size | 1/2.7" |
| Color Supported | Color |
| Field of View | Horizontal FOV: 88°, Vertical FOV: 46°, Diagonal FOV: 105.4° |
| Effective Camera Resolution | 4 Megapixel |
| Video | |
| Video Formats | H.265+,H.265,H.264,H.264+,H.264H,H.265M |
| Maximum Video Resolution | 2688 x 1520 |
| Maximum Frame Rate | 30 fps |
| Audio | |
| Audio Support | Yes |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 4 mm (0.16") |
| Lens Included | Yes |
| Lens Mount Type | M12-mount |
| Maximum Aperture | f/1.6 |
| Exposure | |
| Shortest Shutter Speed | 1/10000 Second |
| Longest Shutter Speed | 1/3 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Ethernet Technology | Fast Ethernet |
| Protocols | TCP/IP,UDP,ICMP,HTTP,HTTPS,DHCP,DNS,RTSP,NTP,UPnP,SSL/TLS,FTP,SFTP,RTP,IPv4,IPv6,ARP,ONVIF,Digest Authentication |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Maximum Power Consumption | 12.52 W |
| Input Voltage | 12 V DC |
| Power Source Type | DC,PoE |
| Physical Characteristics | |
| Product Material | Metal |
| Mount Type | Wall Mount,Ceiling Mount |
| Form Factor | Dome |
| Durability | Weather Proof,Vandal Proof,Water Proof |
| Height | 3.50" (88.90 mm) |
| Width | 4.80" (121.92 mm) |
| Length | 4.80" (121.92 mm) |
| Diameter | 4.80" (121.92 mm) |
| Weight (Approximate) | 1.37 lb (620 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -22°F (-30°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Minimum Storage Temperature | -40°F (-40°C) |
| Maximum Storage Temperature | 140°F (60°C) |
| Maximum Operating Humidity (Non-condensing) | 95% |
| Maximum Storage Humidity (Non-condensing) | 95% |
| Miscellaneous | |
| Features | Alarm Triggering,Vehicle Detection,Human Detection,Wide Dynamic Range,3D Digital Noise Reduction,Noise Reduction,White Balance,Built-in Microphone,Day/Night,Mirror,Ingress Protection,SD Card Local Storage |

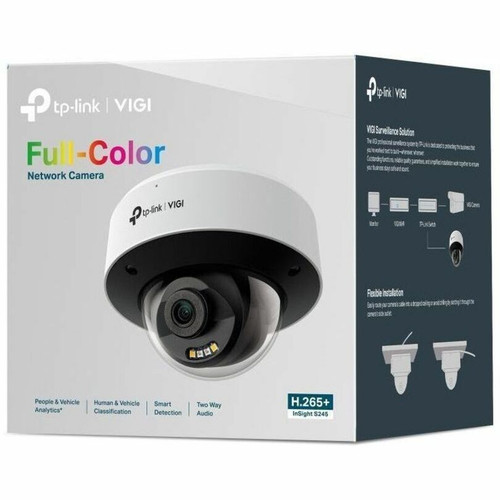

| Package Contents | 4MP Full-Color Dome Network Camera Quick Start Guide Waterproof Cable Attachments Mounting Accessories |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP67 |
User Manual
FAQ
What is the resolution of this VIGI dome camera?
The VIGI INSIGHT S245 captures 4MP video at a maximum resolution of 2688 x 1520 pixels. This provides sharp, detailed imagery suitable for identifying faces, license plates, and other critical details in surveillance footage.
How far does the night vision reach?
Night vision extends up to 98.43 feet (30 meters) using infrared and color modes. The camera maintains full-color imaging in low-light conditions, with two IR LEDs enhancing visibility in complete darkness.
Is this camera suitable for outdoor use?
Yes, with an IP67 rating for waterproofing and IK10 for vandal resistance, the camera is built for harsh outdoor environments. It operates in temperatures from -30°C to 60°C and withstands rain, dust, and physical impacts.
What power options are supported?
The camera accepts both 12V DC power and Power over Ethernet (PoE). This flexibility simplifies installation by allowing power and data over a single Ethernet cable or traditional DC wiring, with maximum consumption at 12.52 watts.
Does it include AI detection features?
Yes, AI-powered analytics enable human and vehicle classification, reducing false alarms. The camera triggers alerts based on these detections and supports wide dynamic range (120 dB) for clear imaging in high-contrast scenes.
What video compression formats are supported?
It supports H.265+, H.265, H.264, H.264+, H.264H, and H.265M formats. H.265+ compression optimizes bandwidth and storage efficiency, while maintaining compatibility with legacy systems using H.264.
What storage is included?
The system includes Memory Card of storage for applications, files, and everyday business data.
