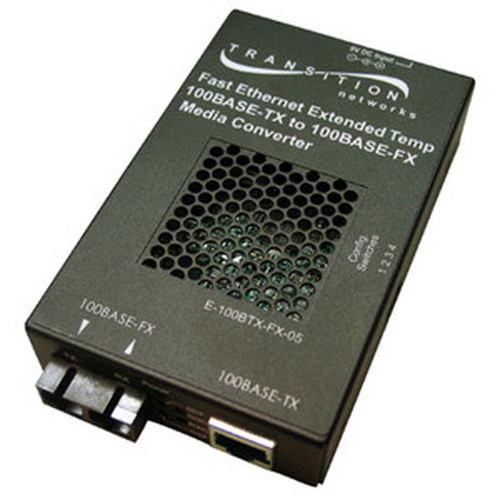

Transition Networks E-100BTX-FX-05(HT)-NA E-100BTX-FX-05 - HT-NA Fast Ethernet Media Converter - RJ45 to ST Fiber - 2 km Multi-mode - External Desktop
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This media converter operates at a 1300 nm wavelength on multi-mode fiber, ensuring optimal performance for short to medium-range fiber links. The device features one RJ45 port for twisted-pair connections and one ST port for fiber optic cabling, providing a total of two ports for seamless media conversion.
Fast Ethernet technology supports both 10 Mbps and 100 Mbps data rates over twisted pair, while the fiber side handles 100Base-FX for consistent high-speed transfer. The converter's external design eliminates internal installation hassles, and its lifetime warranty underscores long-term reliability in demanding network environments.
This section brings together practical product details such as Total Number of Ports, Network (RJ-45), Number of Network (RJ-45) Ports, Media Type Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This converter simplifies network expansion by integrating copper and fiber infrastructure without requiring equipment upgrades. Its compatibility with cost-effective twisted-pair and multi-mode fiber cables reduces deployment costs while extending reach beyond copper limitations.
Distance Extension
Extend Fast Ethernet connections up to 2 kilometers over multi-mode fiber, overcoming the 100-meter limit of standard twisted pair.
- Supports 2 km fiber runs
- Maintains 100 Mbps speed over distance
Deployment Flexibility
The external, wall-mountable form factor and AC/DC power enable easy installation in racks, closets, or industrial settings without internal card slots.
- No internal installation required
- Wall mount or desktop placement
Deployment / Use Cases
Ideal for extending existing copper networks over fiber to connect buildings, floors, or remote equipment within a campus environment. The converter is commonly used in office networks, manufacturing facilities, and educational institutions where fiber backbone integration is needed.
Typical applications include linking switches or routers across separate buildings, connecting IP cameras or access points over long distances, and integrating legacy copper devices into fiber-based network segments. Its TAA compliance makes it suitable for government or regulated industry deployments requiring adherence to trade agreements.
Physical Profile
The compact external enclosure measures 1 inch in height, 3 inches in width, and 4.70 inches in depth, with a weight of approximately 2 pounds. Its small footprint allows for discreet placement on desktops, shelves, or wall mounts, and the sturdy construction supports reliable operation in varied environmental conditions.
- Width
- 3" (76.20 mm)
- Depth
- 4.70" (119.38 mm)
- Height
- 1" (25.40 mm)
- Weight
- 2 lb (907.18 g)
- Length
- 1300 nm
What's in the Box
The package includes the E-100BTX-FX-05(HT) Fast Ethernet Media Converter and a North America power supply, providing everything needed for immediate deployment out of the box.
Highlights
- Converts RJ45 to ST fiber for Fast Ethernet networks
- Supports up to 2 km distance over multi-mode fiber
- External desktop form factor with wall-mount capability
- 10/100Base-TX and 100Base-FX network compatibility
- AC/DC power source for flexible installation
- TAA compliant for regulated deployments
- Lifetime limited warranty for long-term reliability
- Compact dimensions: 1" H x 3" W x 4.70" D
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lantronix, Inc |
| Manufacturer Part Number | E-100BTX-FX-05(HT)NA |
| Brand Name | Lantronix |
| Product Series | E-100BTX-HT |
| Product Model | E-100BTX-FX-05(HT) |
| Product Name | E-100BTX-FX-05(HT) Fast Ethernet Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of ST Ports | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Wavelength | 1300 nm |
| Maximum Distance Supported | 2 km (1.24 Mile) |
| Network & Communication | |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 10/100Base-TX,100Base-FX |
| Power Description | |
| Power Source | AC/DC |
| Physical Characteristics | |
| Form Factor | External,Wall Mountable |
| Height | 1" (25.40 mm) |
| Width | 3" (76.20 mm) |
| Depth | 4.70" (119.38 mm) |
| Weight (Approximate) | 2 lb (907.18 g) |
| Miscellaneous | |
| Package Contents | E-100BTX-FX-05(HT) Fast Ethernet Media Converter Power Supply (North America) |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What does this media converter do?
This converter transforms Fast Ethernet signals between an RJ45 twisted-pair port and an ST multi-mode fiber optic port, allowing network segments using different cable types to communicate seamlessly over distances up to 2 kilometers.
What types of cables does it support?
It supports twisted-pair copper cables (like Cat5e) on the RJ45 side and multi-mode fiber optic cables with ST connectors on the fiber side, enabling mixed-media network integration.
What is the maximum distance it can cover?
The converter supports fiber runs up to 2 kilometers (1.24 miles) when using multi-mode fiber, significantly extending beyond the 100-meter limit of standard copper Ethernet cables.
How is this converter powered?
It uses an AC/DC power source, typically via an included external power supply, providing flexibility for installation in various locations without requiring internal power slots.
Can this converter be wall-mounted?
Yes, the external form factor is designed for wall mounting or desktop placement, offering versatile installation options to save space and integrate neatly into network closets or equipment racks.
What warranty comes with this product?
It includes a lifetime limited warranty, ensuring long-term support and reliability for continuous operation in business or industrial network environments.
