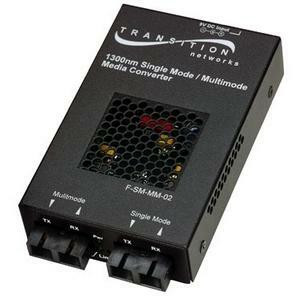

Transition Networks Fast Ethernet or ATM/SONET Transceiver - 1 x SC , 1 x SC - OC-3, OC-3 - Rack-mountable (F-SM-MM-02-NA)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- Stand-alone Fiber to Fiber Media Converter
- Power Supply (North America)
Total Number of Ports: 2
Number of SC Ports: 2
Media Type Supported: Optical Fiber
Fiber Mode Supported: Multi-mode,Single-mode
Fiber Optic Cable Wavelength: 1300 nm,1310 nm
Maximum Data Transfer Rate: 155 Mbit/s
Maximum Distance Supported: 20 km (12.43 Mile)
Ethernet Technology: Fast Ethernet
Network Technology: OC-3
Power Source: AC/DC
Form Factor: Standalone,DIN Rail Mountable,Wall Mountable
Height: 1" (25.40 mm)
Width: 3" (76.20 mm)
Depth: 4.70" (119.38 mm)
Weight (Approximate): 2 lb (907.18 g)
Package Contents:
- Supports optical fiber cable for durable performance, minimal signal loss, and fast data transfers to greater distances
- Attach multiple devices together or expand the number of devices connected to your existing network by using 2 transceiver/media converter
- With OC-3 technology get up to 155.52Mbps data transfer rate over optical fiber cable by service provider
- The unit is standalone and you can place it anywhere on a flat surface
[custom-specifications]
| Specifications | |
| Manufacturer | Lantronix, Inc |
| Manufacturer Part Number | F-SM-MM-02-NA |
| Manufacturer Website Address | http://www.lantronix.com |
| Brand Name | Transition Networks |
| Product Model | F-SM-MM-02 |
| Product Name | Stand-alone Fiber to Fiber Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Number of SC Ports | 2 |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Multi-mode,Single-mode |
| Fiber Optic Cable Wavelength | 1300 nm,1310 nm |
| Maximum Data Transfer Rate | 155 Mbit/s |
| Maximum Distance Supported | 20 km (12.43 Mile) |
| Network & Communication | |
| Ethernet Technology | Fast Ethernet |
| Network Technology | OC-3 |
| Power Description | |
| Power Source | AC/DC |
| Physical Characteristics | |
| Form Factor | Standalone,DIN Rail Mountable,Wall Mountable |
| Height | 1" (25.40 mm) |
| Width | 3" (76.20 mm) |
| Depth | 4.70" (119.38 mm) |
| Weight (Approximate) | 2 lb (907.18 g) |
| Miscellaneous | |
| Package Contents |
|
[/custom-specifications]
[custom-options]
| Product | Transition Networks 4 Inch Wall Mount Bracket - 2 |
| SKU | WMBL |
| Sale Price | $15.95 |
| Product | Lantronix Wall Mount for Chassis, Ethernet Access Device - Vertical - 1 |
| SKU | WMBV |
| Sale Price | $21.95 |
| Product | Transition Networks 5.0 Inch DIN Rail Mount Bracket |
| SKU | WMBD |
| Sale Price | $10.95 |
| Product | Transition Networks 3.1 Inch DIN Rail Mount Bracket |
| SKU | WMBD-FS |
| Sale Price | $15.95 |
| Product | Lantronix 4-Slot Media Converter Shelf - For Media Converter - 1U Rack Height - Rack-mountable |
| SKU | RMS19-SA4-02 |
| Sale Price | $185.95 |
[/custom-options]
[custom-user-manual]
Available Documentation:
Additional-pdf2
Additional-pdf1
[/custom-user-manual]
