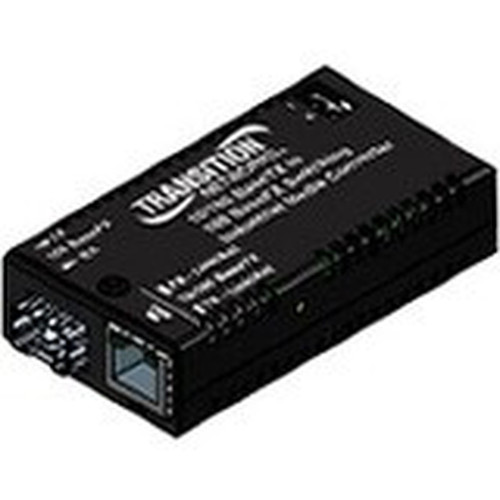

Transition Networks M/E-ISW-FX-02(SFP) M/E-ISW-FX-02 - SFP Hardened Mini Fast Ethernet Media Converter - RJ45 & SFP - Wall/Rail Mountable - 40°C to
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview

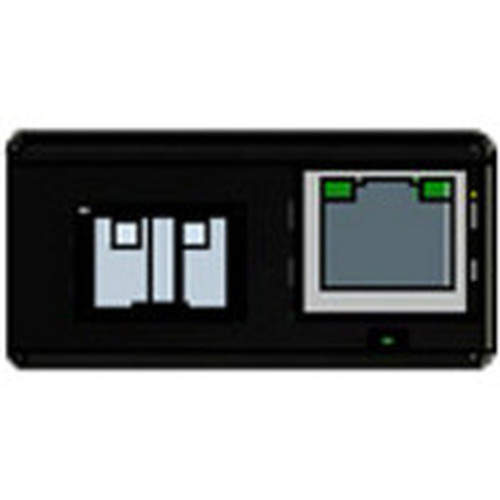

This media converter supports Fast Ethernet technology with 100Base-T for twisted pair copper connections and 100Base-FX for fiber optic connections. The unit features two total ports: one fixed RJ-45 port for copper connectivity and one SFP slot for fiber optic transceiver installation. This configuration allows flexible media adaptation based on specific network requirements and distance needs.
The SFP slot accepts industry-standard small form-factor pluggable transceivers, enabling support for various fiber types and distances. The converter handles media conversion transparently, maintaining data integrity across the conversion process without requiring configuration or management overhead. Power is supplied through an external power adapter, ensuring stable operation across the full environmental range.
Key Product Advantages
This hardened media converter delivers several advantages for network deployments in challenging environments. Its extreme temperature tolerance ensures reliable operation in locations where standard networking equipment would fail, while the compact design minimizes space requirements without sacrificing functionality.
Environmental Durability
Operates reliably across a wide temperature range from -40°C to 75°C, making it suitable for industrial, outdoor, and unconditioned space installations where temperature fluctuations are common.
- Extended temperature range
- Industrial-grade reliability
- Outdoor environment capable
Flexible Connectivity
Combines fixed RJ-45 copper connectivity with an SFP slot for fiber optic transceivers, providing adaptable media conversion options for different network architectures and distance requirements.
- RJ-45 copper port
- SFP fiber slot
- Media conversion flexibility
Space-Efficient Design
The mini form factor conserves valuable installation space while supporting both wall and rail mounting options for versatile deployment in various environments and enclosures.
- Compact dimensions
- Dual mounting options
- Space-saving installation
Deployment / Use Cases
This media converter is ideal for extending network connections between copper and fiber media in environments where standard networking equipment cannot operate reliably. Its hardened design and temperature tolerance make it particularly valuable for industrial automation, outdoor networking, and infrastructure deployments.
Common applications include connecting fiber backbone networks to copper-based edge devices in manufacturing facilities, extending network connections to remote outdoor cameras or sensors, bridging between different building networks where fiber is required for distance or EMI protection, and providing media conversion in telecommunications cabinets or electrical rooms without climate control. The converter's plug-and-play operation simplifies deployment while its durable construction ensures long-term reliability in challenging conditions.
Physical Profile
The converter features compact dimensions of 0.87" (22 mm) height, 1.81" (46 mm) width, and 3.35" (85 mm) depth, with a weight of approximately 907.2 grams. This mini form factor enables installation in space-constrained locations while maintaining full functionality. The unit supports both wall mounting and rail mounting, providing flexible installation options for different deployment scenarios. The sturdy construction ensures durability in vibration-prone or harsh environments where equipment protection is essential.
- Width
- 1.81" (46 mm)
- Depth
- 3.35" (85 mm)
- Height
- 0.87" (22 mm)
- Weight
- 907.2 g
What's in the Box
The package includes everything needed for immediate deployment of the media converter in your network environment.
Highlights
- Hardened mini Fast Ethernet media converter for extreme environments
- Converts between 10/100Base-TX copper and 100Base-FX fiber connections
- Operates reliably from -40°C to 75°C temperature range
- Features one RJ-45 port and one SFP slot for flexible connectivity
- Compact design with wall and rail mounting options
- Plug-and-play operation requires no configuration
- Supports Fast Ethernet with up to 100 Mbps data transfer
- Includes barrel connector pig-tail cable for power connection
- Compliant with RoHS and WEEE environmental standards
- Backed by lifetime limited warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | Transition Networks, Inc |
| Manufacturer Part Number | M/E-ISW-FX-02(SFP) |
| Brand Name | Transition Networks |
| Product Series | M/E-ISW |
| Product Model | M/E-ISW-FX-02(SFP) |
| Product Name | Hardened Mini Fast Ethernet Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| I/O Expansions | |
| Total Number of Expansion Slots | 1.0 |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 1 |
| Network & Communication | |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 100Base-T,100Base-FX |
| Power Description | |
| Power Source | Power Supply |
| Physical Characteristics | |
| Form Factor | Wall Mountable,Rail-mountable |
| Height | 0.87" (22 mm) |
| Width | 1.81" (46 mm) |
| Depth | 3.35" (85 mm) |
| Weight (Approximate) | 907.2 g |
| Miscellaneous | |
| Package Contents | Hardened Mini Fast Ethernet Media Converter Barrel Connector Pig-Tail Cable |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Taiwan |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What types of media does this converter support?
This media converter supports both optical fiber and twisted pair copper media. It converts between 10/100Base-TX copper connections using its RJ-45 port and 100Base-FX fiber connections using an SFP transceiver installed in its expansion slot. This dual-media support enables flexible network deployment across different cable types and distances.
What temperature range can this media converter operate in?
The converter operates reliably across an extended temperature range from -40°C to 75°C. This hardened design makes it suitable for industrial environments, outdoor installations, and unconditioned spaces where temperature extremes would compromise standard networking equipment. The wide operating range ensures consistent performance in challenging environmental conditions.
How many ports does this media converter have?
This converter has two total ports: one fixed RJ-45 port for copper connectivity and one SFP slot for fiber optic transceiver installation. The RJ-45 port supports 10/100Base-TX connections over twisted pair cable, while the SFP slot accepts industry-standard small form-factor pluggable transceivers for various fiber types and distances.
What mounting options are available for this converter?
The converter supports both wall mounting and rail mounting, providing flexible installation options for different deployment scenarios. Its compact dimensions of 0.87" height, 1.81" width, and 3.35" depth make it ideal for space-constrained installations in electrical cabinets, industrial enclosures, or networking racks where traditional larger converters would not fit.
What is included in the package with this media converter?
The package includes the hardened mini Fast Ethernet media converter unit and a barrel connector pig-tail cable for power connection. This provides everything needed for basic deployment, though you may need to separately obtain an appropriate SFP transceiver and power supply based on your specific network requirements and installation environment.
What type of Ethernet technology does this converter support?
This converter supports Fast Ethernet technology with 100Base-T for twisted pair copper connections and 100Base-FX for fiber optic connections. It provides data transfer rates up to 100 Mbps and handles media conversion transparently between these different physical layer technologies without requiring configuration or management overhead.
