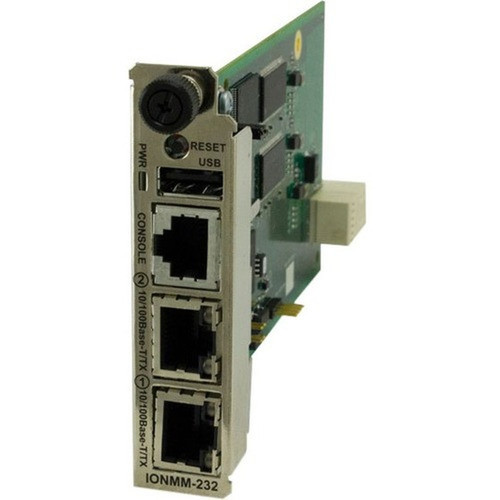

Transition Networks IONMM-232 ION Chassis Management Module - RS232 RJ-45 CLI Port - 2x RJ-45100/1000Base-T - USB - Fast Ethernet
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This management module implements 10/100Base-TX Fast Ethernet technology, delivering data transfer rates up to 100 Mbps over standard twisted pair cabling. The module supports cost-effective twisted pair media with transmission distances up to 100 meters, making it suitable for both local management connections and extended network deployments.
The compact form factor measures 3.40 inches in height, 0.86 inches in width, and 6.50 inches in depth, with a weight of approximately 1 pound. This physical profile allows the module to integrate seamlessly into ION chassis systems while maintaining a minimal footprint within network racks and enclosures.
Key Product Advantages
The IONMM-232 management module delivers reliable out-of-band management capabilities through its dedicated RS232 console port, ensuring administrators can maintain access to ION chassis systems even when primary network paths are unavailable. This redundancy is critical for maintaining network uptime and enabling timely troubleshooting.
Dual Management Port Flexibility
Two RJ-45 100/1000Base-T ports provide both Fast Ethernet and Gigabit Ethernet connectivity options, allowing administrators to match management network speeds to their infrastructure requirements without needing separate modules for different speed tiers.
- Supports 10/100 Mbps Fast Ethernet
- Also supports 1000 Mbps Gigabit Ethernet
- Flexible management network integration
Console Access Reliability
The dedicated RS232 RJ-45 CLI port enables direct serial console connections for configuration, monitoring, and recovery operations independent of network status, providing a critical fallback management path for network administrators.
- Out-of-band management capability
- Direct serial configuration access
- Network-independent recovery option
Deployment / Use Cases
The Transition Networks IONMM-232 management module is engineered for deployment within Transition ION chassis systems in data networking environments requiring reliable management access and configuration capabilities. Its combination of console access and dual-speed management ports makes it suitable for various network management scenarios.
Primary deployment scenarios include enterprise network closets where administrators need both in-band and out-of-band management options, data center environments requiring redundant management paths for critical network infrastructure, and distributed network deployments where remote management capabilities must remain available despite network connectivity fluctuations.
Data Center Management
Deploy in data center environments where maintaining management access to ION chassis systems is critical for network operations, leveraging both the Gigabit management ports for high-speed monitoring and the console port for emergency access during network disruptions.
Distributed Network Infrastructure
Install in branch office and remote location network deployments where administrators require reliable management capabilities despite potential network connectivity issues, utilizing the console port as a fallback management path when primary network connections are unavailable.
Physical Profile
The management module features a compact design with dimensions of 3.40 inches in height, 0.86 inches in width, and 6.50 inches in depth. This form factor is optimized for integration within Transition ION chassis systems while maintaining sufficient space for port connectors and internal components. The module's approximately 1-pound weight ensures it can be securely mounted within chassis systems without adding excessive load to network racks or enclosures.
- Width
- 0.86" (21.84 mm)
- Depth
- 6.50" (165.10 mm)
- Height
- 3.40" (86.36 mm)
- Weight
- 1 lb (453.59 g)
Highlights
- RS232 RJ-45 CLI port for direct console management access
- Dual RJ-45 100/1000Base-T management ports support both Fast Ethernet and Gigabit Ethernet
- USB interface provides additional connectivity options
- 10/100Base-TX Fast Ethernet technology with up to 100 Mbps data transfer
- Supports twisted pair cabling with transmission distances up to 100 meters
- Compatible exclusively with Transition ION chassis systems
- Compact dimensions: 3.40" H × 0.86" W × 6.50" D
- Lifetime limited warranty for long-term reliability assurance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lantronix, Inc |
| Manufacturer Part Number | IONMM-232 |
| Brand Name | Transition Networks |
| Product Name | Management Module for the ION Chassis with a RS232 RJ-45 CLI Port |
| Product Type | Management Module |
| Technical Information | |
| Application/Usage | Data Networking |
| Interfaces/Ports | |
| Total Number of Ports | 3 |
| Connector Type | RJ-45,USB |
| Interfaces/Ports Details | 2 x RJ-45 100/1000Base-T Management,1 x USB |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 10/100Base-TX |
| Physical Characteristics | |
| Height | 3.40" (86.36 mm) |
| Width | 0.86" (21.84 mm) |
| Depth | 6.50" (165.10 mm) |
| Weight (Approximate) | 1 lb (453.59 g) |
| Miscellaneous | |
| Compatibility | Transition ION Chassis |
| Country of Origin | Taiwan |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What chassis systems is the IONMM-232 management module compatible with?
The Transition Networks IONMM-232 management module is specifically designed for compatibility with Transition ION chassis systems. This module integrates directly into ION chassis platforms to provide management and connectivity capabilities. It is not compatible with other chassis systems or standalone deployment outside of Transition ION chassis environments.
What types of management connections does this module support?
This management module supports three primary connection types: an RS232 RJ-45 CLI port for direct serial console access, two RJ-45 100/1000Base-T ports for Ethernet management connections (supporting both Fast Ethernet at 10/100 Mbps and Gigabit Ethernet at 1000 Mbps), and one USB interface for additional connectivity options. These multiple connection types provide flexible management access for different network scenarios.
What is the maximum data transfer rate supported by this management module?
The Transition Networks IONMM-232 management module implements 10/100Base-TX Fast Ethernet technology, which supports data transfer rates up to 100 Mbps over twisted pair cabling. While the RJ-45 management ports also support 1000Base-T Gigabit Ethernet connections, the module's primary network technology is Fast Ethernet with 100 Mbps maximum throughput for management traffic.
What warranty coverage does this management module include?
The Transition Networks IONMM-232 management module includes a lifetime limited warranty. This warranty provides coverage for the product's expected operational lifespan, offering assurance of long-term reliability and manufacturer support for the management module when deployed within compatible Transition ION chassis systems in data networking environments.
