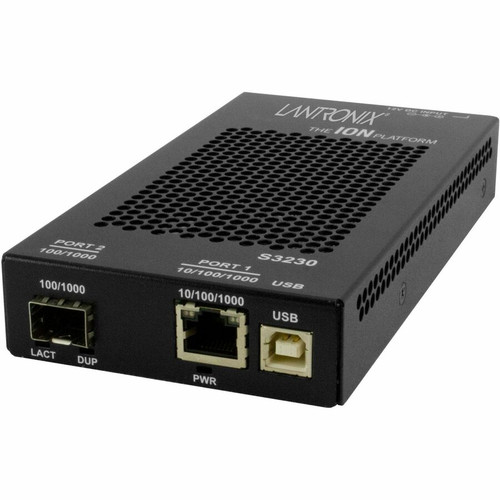

Transition Networks S3230-1040 Transceiver/Media Converter - 1 x Network (RJ-45) - USB - Management Port - Gigabit Ethernet - - 1000 - (S3230-1040-UK)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- S3230-1040 Transceiver/Media Converter
- Power Supply - United Kingdom
Total Number of Ports: 1
Network (RJ-45): Yes
USB: Yes
Management Port: Yes
Number of Network (RJ-45) Ports: 1
Media Type Supported: Optical Fiber,Twisted Pair
Maximum Data Transfer Rate: 1000 Mbit/s
Maximum Distance Supported: 0.10 km (0.06 Mile)
Total Number of Expansion Slots: 1
Expansion Slot Type: SFP
Number of SFP Slots: 1
Ethernet Technology: Gigabit Ethernet
Network Technology: 10/100/1000Base-T,100/1000Base-X
Power Source: Power Supply
Form Factor: Wall Mountable,Standalone,Shelf Mount
Height: 1" (25.40 mm)
Width: 3.25" (82.55 mm)
Depth: 6.50" (165.10 mm)
Weight (Approximate): 2 lb (907.18 g)
Package Contents:
Environmentally Friendly: Yes
Environmental Compliance: Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
TAA Compliant: Yes
Limited Warranty: Lifetime
- Supports optical fiber cable for durable performance, minimal signal loss, and fast data transfers to greater distances
- Connect different types of media within a network with this single port
- With 10/100/1000Base-T technology get up to 1000Mbps data transfer rate over twisted pair cable
- Tuck the device out of the way with its Wall Mounting feature
[custom-specifications]
| Specifications | |
| Manufacturer | Lantronix, Inc |
| Manufacturer Part Number | S3230-1040-UK |
| Manufacturer Website Address | http://www.lantronix.com |
| Brand Name | Transition Networks |
| Product Line | ION |
| Product Series | S3230 |
| Product Model | S3230-1040 |
| Product Name | S3230-1040 Transceiver/Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Network (RJ-45) | Yes |
| USB | Yes |
| Management Port | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Maximum Data Transfer Rate | 1000 Mbit/s |
| Maximum Distance Supported | 0.10 km (0.06 Mile) |
| I/O Expansions | |
| Total Number of Expansion Slots | 1 |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 1 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,100/1000Base-X |
| Power Description | |
| Power Source | Power Supply |
| Physical Characteristics | |
| Form Factor | Wall Mountable,Standalone,Shelf Mount |
| Height | 1" (25.40 mm) |
| Width | 3.25" (82.55 mm) |
| Depth | 6.50" (165.10 mm) |
| Weight (Approximate) | 2 lb (907.18 g) |
| Miscellaneous | |
| Package Contents | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | Lifetime |
[/custom-specifications]
[custom-options]
| Product | Lantronix 4-Slot Media Converter Shelf - For Media Converter - 1U Rack Height - Rack-mountable |
| SKU | RMS19-SA4-02 |
| Sale Price | $185.95 |
[/custom-options]
[custom-user-manual]
Available Documentation:
User-Manual
Manufacturer-Brochure
