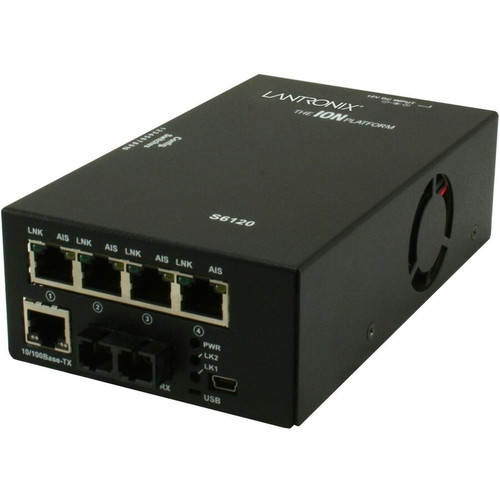

Transition Networks S6120-1013-BR ION Series Media Converter - 1x RJ-45 to 1x SC Multi-mode 1300 nm - Fast Ethernet 100 Mbps - 2 km Distance - Wall
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This media converter operates at a 1300 nm wavelength on multi-mode fiber, providing a practical solution for extending 10/100Base-TX networks over optical infrastructure. It features one RJ-45 port for copper connectivity and one SC port for fiber termination, with a total of five ports to accommodate various connection scenarios.
The device consumes only 6 watts of power from the included supply and supports both wall-mount and standalone deployment. Environmental compliance includes REACH, RoHS, and WEEE directives, and the unit is TAA compliant for government procurement.
This section brings together practical product details such as Total Number of Ports, Network (RJ-45), Number of Network (RJ-45) Ports, Media Type Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This converter extends network reach significantly beyond typical copper limitations while maintaining signal quality. The use of fiber optic media reduces electromagnetic interference and signal degradation over long runs, which is critical for stable network performance in extended campus or industrial settings.
Distance Extension
Supports fiber runs up to 2 kilometers, far exceeding the 100-meter limit of standard Cat5/Cat6 copper cabling.
- Eliminates need for additional switches or repeaters
- Maintains 100 Mbps throughput over extended distance
Installation Flexibility
The wall-mountable form factor allows for clean, organized installations in racks, cabinets, or directly on walls.
- Saves rack space in crowded network closets
- Includes mounting hardware for secure placement
Regulatory Compliance
Meets multiple environmental and trade agreement standards for broad deployment eligibility.
- TAA compliant for government contracts
- RoHS/REACH/WEEE compliant for environmental responsibility
Deployment / Use Cases
This media converter is ideal for network segments where copper infrastructure needs to bridge between buildings or across large facilities. The 2-kilometer fiber support makes it suitable for connecting separate structures on a campus, linking remote offices within an industrial complex, or extending network drops in warehouses and manufacturing plants.
Common applications include connecting edge switches to core network equipment over fiber backbone, integrating legacy T1/E1/J1 service links with modern Ethernet networks, and providing fiber uplinks for network devices in electrically noisy environments where copper would suffer interference.
Building-to-Building Connectivity
Connect network equipment between separate structures using existing or new fiber runs while maintaining Fast Ethernet speeds.
Industrial Network Extension
Extend network connectivity across manufacturing floors or warehouse spaces where long distances and EMI protection are concerns.
Physical Profile
The converter measures 1.80" (45.72 mm) in height, 3.70" (93.98 mm) in width, and 6.50" (165.10 mm) in depth, with a weight of approximately 2 pounds. This compact footprint supports both standalone desktop placement and secure wall mounting using integrated hardware. The design prioritizes practical installation in various environments without requiring dedicated rack space.
- Width
- 3.70" (93.98 mm)
- Depth
- 6.50" (165.10 mm)
- Height
- 1.80" (45.72 mm)
- Weight
- 2 lb (907.18 g)
- Length
- 1300 nm
What's in the Box
The package includes the S6120-1013 media converter unit and a compatible power supply configured for Brazil. All necessary components for immediate deployment are provided.
Highlights
- Converts Fast Ethernet 100 Mbps between RJ-45 copper and SC multi-mode fiber
- Supports distances up to 2 kilometers over 1300 nm fiber optic cable
- Wall-mountable form factor for flexible installation in space-constrained areas
- TAA compliant for government and educational procurement requirements
- Includes power supply configured for Brazil regional use
- Low 6-watt power consumption for energy-efficient operation
- Compatible with T1/E1/J1 service provider network technologies
- Environmental compliance with REACH, RoHS, and WEEE directives
- Lifetime limited warranty for long-term reliability assurance
- Compact dimensions: 1.8"H × 3.7"W × 6.5"D (45.72 × 93.98 × 165.10 mm)
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lantronix, Inc |
| Manufacturer Part Number | S6120-1013-BR |
| Brand Name | Transition Networks |
| Product Line | ION |
| Product Series | S6120 |
| Product Model | S6120-1013 |
| Product Name | S6120-1013 Transceiver/Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 5 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of SC Ports | 1 |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Wavelength | 1300 nm |
| Maximum Data Transfer Rate | 100 Mbit/s |
| Maximum Distance Supported | 2 km (1.24 Mile) |
| Network & Communication | |
| Ethernet Technology | Fast Ethernet |
| Network Technology | T1/E1/J1,10/100Base-TX |
| Power Description | |
| Power Source | Power Supply |
| Power Consumption | 6 W |
| Physical Characteristics | |
| Form Factor | Wall Mountable,Standalone |
| Height | 1.80" (45.72 mm) |
| Width | 3.70" (93.98 mm) |
| Depth | 6.50" (165.10 mm) |
| Weight (Approximate) | 2 lb (907.18 g) |
| Miscellaneous | |
| Package Contents | S6120-1013 Transceiver/Media Converter Power Supply - Brazil |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What types of connections does this media converter support?
This converter supports one RJ-45 port for standard twisted pair copper Ethernet connections and one SC port for multi-mode fiber optic connections. It converts signals between these two media types, allowing copper-based network equipment to connect over fiber optic cabling.
What is the maximum distance supported over fiber?
The converter supports fiber optic cable runs up to 2 kilometers (approximately 1.24 miles) when using multi-mode fiber at 1300 nm wavelength. This significantly extends network reach beyond the 100-meter limitation of standard copper Ethernet cabling.
What network speeds does this converter support?
It supports Fast Ethernet speeds up to 100 Mbps, compatible with 10/100Base-TX networks. The converter also supports T1/E1/J1 service provider technologies for connecting to legacy telecom links at 1.544 Mbps or 2.048 Mbps data rates.
How is this media converter powered?
The converter is powered by an included external power supply that provides 6 watts of power. The power supply is configured for Brazil regional use and connects to standard power outlets for reliable operation.
Can this converter be mounted on a wall?
Yes, the converter features a wall-mountable form factor with integrated mounting hardware. This allows for secure installation on walls, racks, or in network cabinets, helping organize cables and save space compared to desktop placement.
What warranty comes with this media converter?
Transition Networks provides a lifetime limited warranty for this product, covering defects in materials and workmanship for the duration of ownership. This warranty supports long-term deployment confidence in network infrastructure applications.
